Tuesday concept lecture. Thursday is the hands-on session, where students build a map of the United States in QGIS and change symbology themselves.

Set expectations. This is the concepts day; the hands-on symbology work happens Thursday. Reading is the map design sections of chapter 4 in Bolstad and Manson. Lab 2 and Quiz 2 are both due Saturday.

Open with a disclaimer. Cartography is its own discipline with centuries of craft behind it. We are engineers borrowing the useful parts.

The maps you make in this course are figures in an engineering report, not wall art. The standard is: can a reviewer who was not in the room read it correctly?

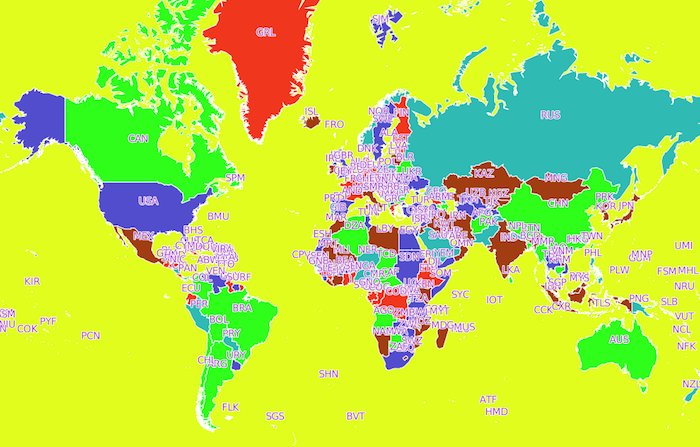

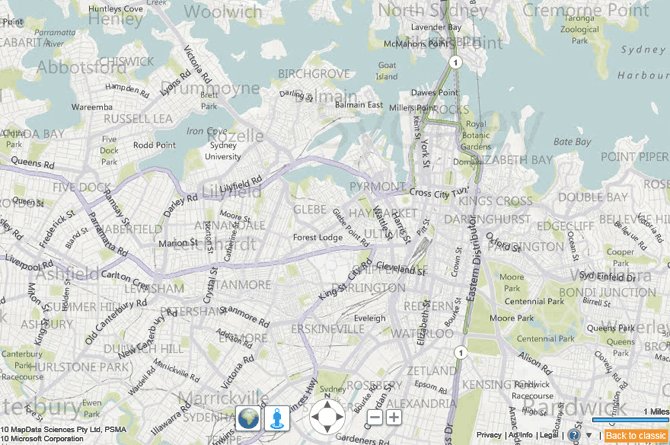

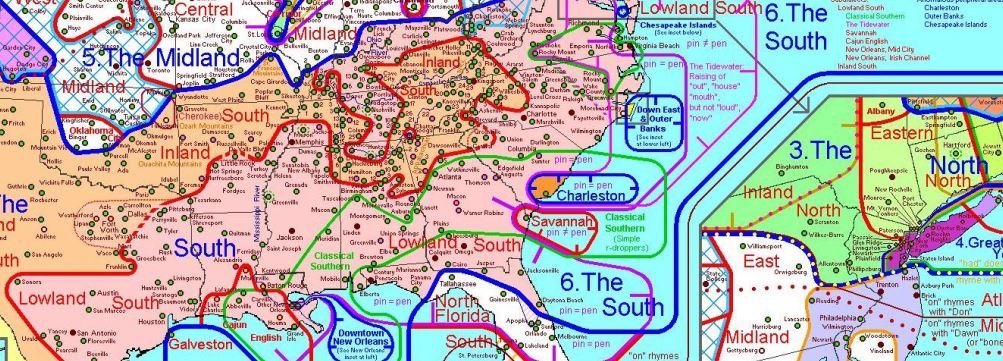

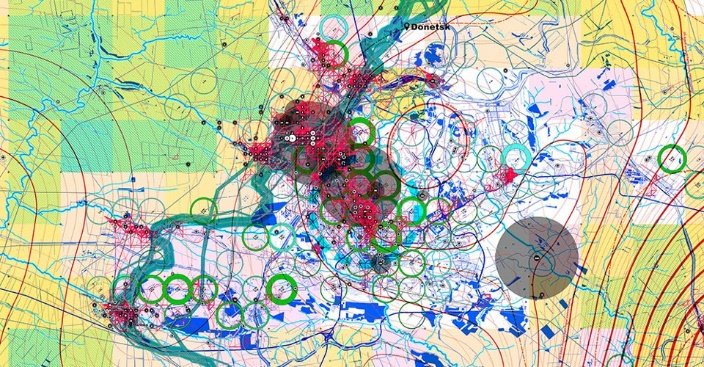

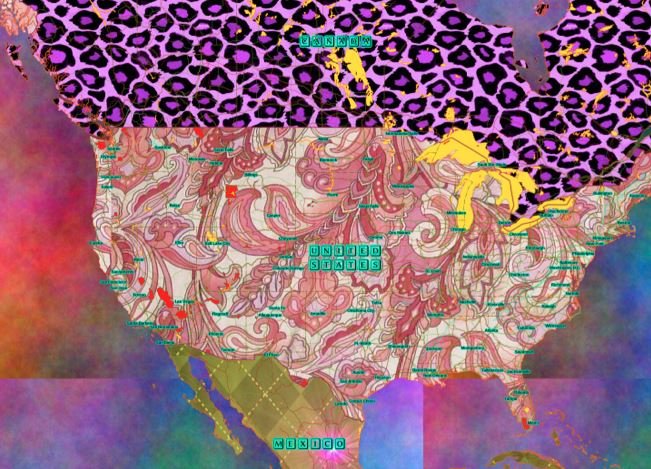

Discuss: what are the problems and issues with each of these maps? Clutter, unreadable text, colors that fight each other, no clear subject, missing legend. Take them one at a time and let students name the failure.

Fortunately the internet is full of examples of good and bad cartography, and we encourage you to look at maps critically and think about what makes a good map, why you are drawn to certain types of visualization and not others, and so on.

We will not judge your work on the aesthetics of your maps, but we will expect every map to be readable and to include some specific components that we will discuss now.

Warm-up poll, and an excuse to put a real thematic map on the screen. Map by Matthew T. Campbell, Spatial Graphics and Analysis Lab, East Central University, Oklahoma; based on 120,464 respondents through March 1, 2003. Take the vote, then go to the next slide and use the same map to name the layout elements.

Same map, now labeled. Walk the callouts one at a time: title, north arrow, legend, scale bar, neat line, metadata. Then ask the question in the white box: what is missing? Nothing on this one, which is the point. Note that this map carries three scale bars because Alaska and Hawaii are at different scales than the lower 48.

This is the list we will grade against in Lab 2 and in every lab after it. Point out that "metadata" on a map layout usually means a short credit block: data source, date, projection, and author.

Both are "none of the above" questions in disguise: everything on both lists belongs on a technical map. Let students argue about the north arrow on a small-scale world map before you land the point.

From the West Virginia Hot Dog Blog slaw mapping project: while the vast majority of West Virginians prefer hot dogs topped with coleslaw, it is not a standard topping everywhere in the state. Counties shaded light green have hot dog joints that include slaw on a hot dog with "everything"; yellow, usually offered; orange, sometimes; red, unheard of. Missing: no scale bar, no north arrow, no metadata block. It does have a title and a legend. Source: wvhotdogblog.blogspot.com

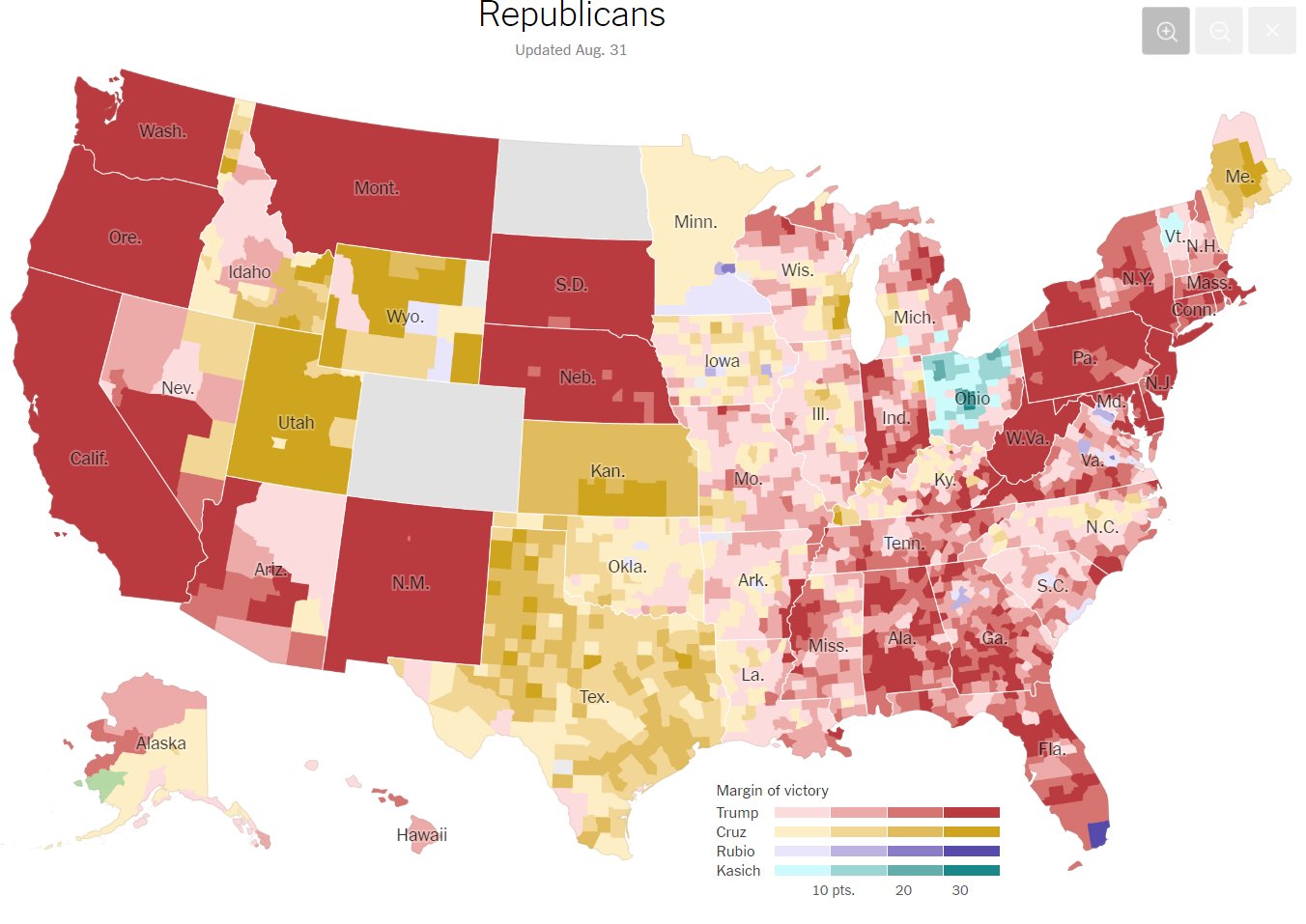

New York Times 2016 national results map. Missing: no scale bar, no north arrow, and the legend is a tiny "margin of victory" ramp in the corner. It is also a county-area map of a person-based quantity, which we come back to in a few slides. Source: nytimes.com/elections/2016/national-results-map

Think about how to use symbology to tell a story. Symbology includes the fill and outline colors you choose, the line and fill patterns, and also icons, or in the next case emoji, that you use to identify features on a map.

Keyboard firm SwiftKey analyzed a billion emoji from its users and worked out which are used more in each state than elsewhere. The geometry is trivial; the whole message is carried by the point symbol. Ask what this map would look like as a choropleth instead.

Map by Landon Kinney, a student in this course in Fall 2015, who picked a Pokémon for each state: ferries for Washington, potatoes for Idaho, Mt. Rushmore for South Dakota, lobsters for Maine, and so on. Same idea as the emoji map, made by hand. Good moment to say that student work ends up in this deck.

Here the "symbol" is the lettering itself: size, weight, color, and hand-drawn style carry the message, with the state outlines only barely present. Labels are symbology too, which is the transition to the next slide.

Ask the question on the slide before revealing the callouts: what kinds of symbology do you see in this map? Answers: annotation, point markers and icons, polyline color and width, polygon fill and outline, and raster color and shading. Every one of those is a setting you will change in the QGIS layer properties on Thursday.

This is the vocabulary list for Lab 2 and for Thursday. All of these live in the layer properties in QGIS, under Symbology and Labels. In QGIS these are Layer Properties, then the Symbology tab and the Labels tab; single symbol, categorized, and graduated renderers are the three you will use most.

Monmonier's book is the classic short read on this. The next few slides are three of his categories: obfuscation, omission, and symbology chosen for effect.

"Camp 3" on this USGS quad map is actually Camp David, the Presidential retreat. The features are drawn, but they are labeled so as to hide what they are.

The Netherlands again: this area has been masked with a pixelated pattern because it is an ammunition depot, Munitiecomplex Veenhuizen. The imagery is there, but deliberately degraded.

Something is very obviously hidden in the northeastern Spanish city of Girona. It is not clear what is beneath the black block, but the standard map view shows roads and a hotel there. Obfuscation hides what a thing is; omission removes it entirely.

Large-scale topographic maps of the Love Canal area, 1946 and 1980. Note that the later map gives no indication that there were ever chemical factories here; the site had become the 91st Street Park. What a map leaves out is an editorial decision.

Symbology for dramatic effect. What is the red indicating here? It looks HOT. But this is only the increase in January minimum temperatures, 1981-2010 compared to 1971-2000. Minnesota is going from extremely cold in January to slightly less extremely cold in January. The color ramp does the arguing, not the data.

Let them answer from the map, then go to the next slide. The map shades area, but people vote, and area is a terrible proxy for population.

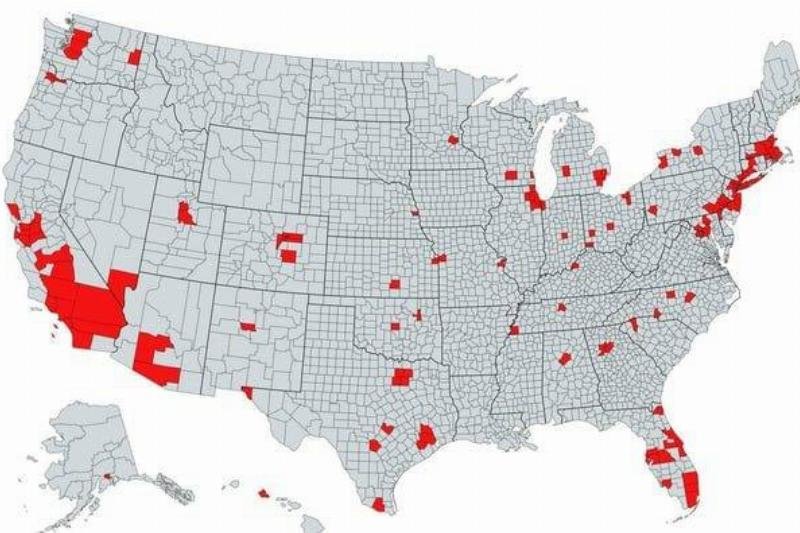

Same country, opposite impression. The red counties on this map contain a larger total population than all of the gray combined. Any choropleth of a person-based quantity has this problem: the reader's eye adds up area, not people. Fixes include cartograms, dot-density maps, and normalizing by population.

Lighten up for the last few minutes. These are here to make the point that a map is an argument, and sometimes a joke.

Answer: B, population. Fifty states of roughly equal population, named after landscape features and cities rather than the historical boundaries.

A persuasive map, not an accurate one: country sizes, labels, and colors are all chosen to make a political argument. Ask students to name the cartographic tricks in play, size distortion, loaded annotation, and a legend that does not exist.

Made in QGIS 3.44 Print Layout from UGRC SGID data (cities and towns, municipal and county boundaries; cities over 20,000 people). Use it as the checklist slide in reverse: every required element is present. The original student map (David Shill, 2019) used a picture marker that was too large and too detailed for the scale of the map: the icons collided and the labels had to be pushed away with leader lines. Worth describing as the cautionary tale, and the photo marker in that student version happened to be a man named Dan Ames, probably not related to Dr. Ames.

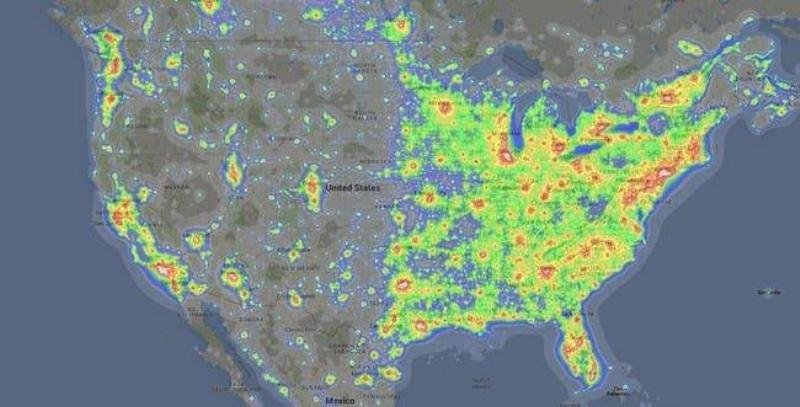

A raster color ramp doing all the work. If you like star gazing, head for the middle and northwest of the country; a 2016 study estimated that about 80 percent of North Americans cannot see the Milky Way. Geographer Tim Wallace has noted that scattered bright spots in places like North Dakota come from shale oil extraction and large facilities such as airports and power stations. Source: exploredplanet.com

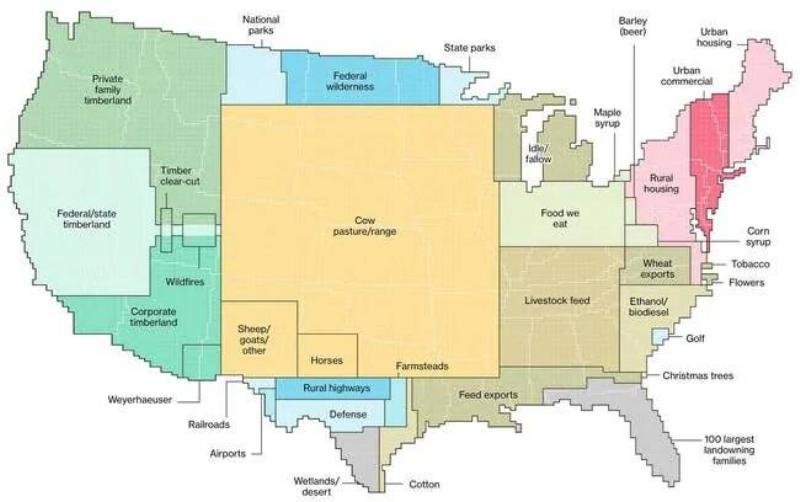

A cartogram-flavored land use map: the categories are drawn in proportion to the area they occupy. Much of the west is forest and timber, the middle of the country is pasture and cropland, and the small parcels, national parks, golf courses, Christmas trees, still show up. Ask what the legend would have to look like if this were a normal choropleth. Source: exploredplanet.com

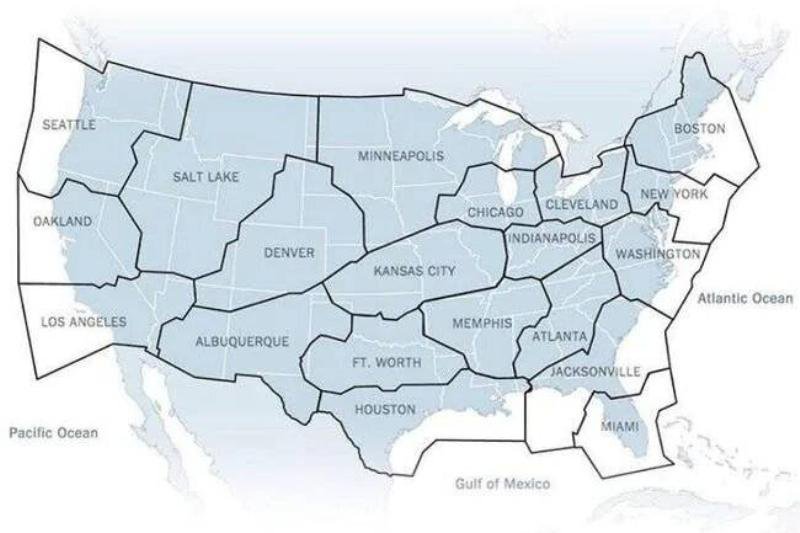

U.S. air traffic control is not divided by state but into 21 zones across the continental U.S., each centered on a major city such as Houston, New York, or Washington, D.C. Within each zone are sectors of airspace, and within those, each airport holds a five-mile radius. A reminder that useful boundaries often have nothing to do with the ones you already know. Source: exploredplanet.com

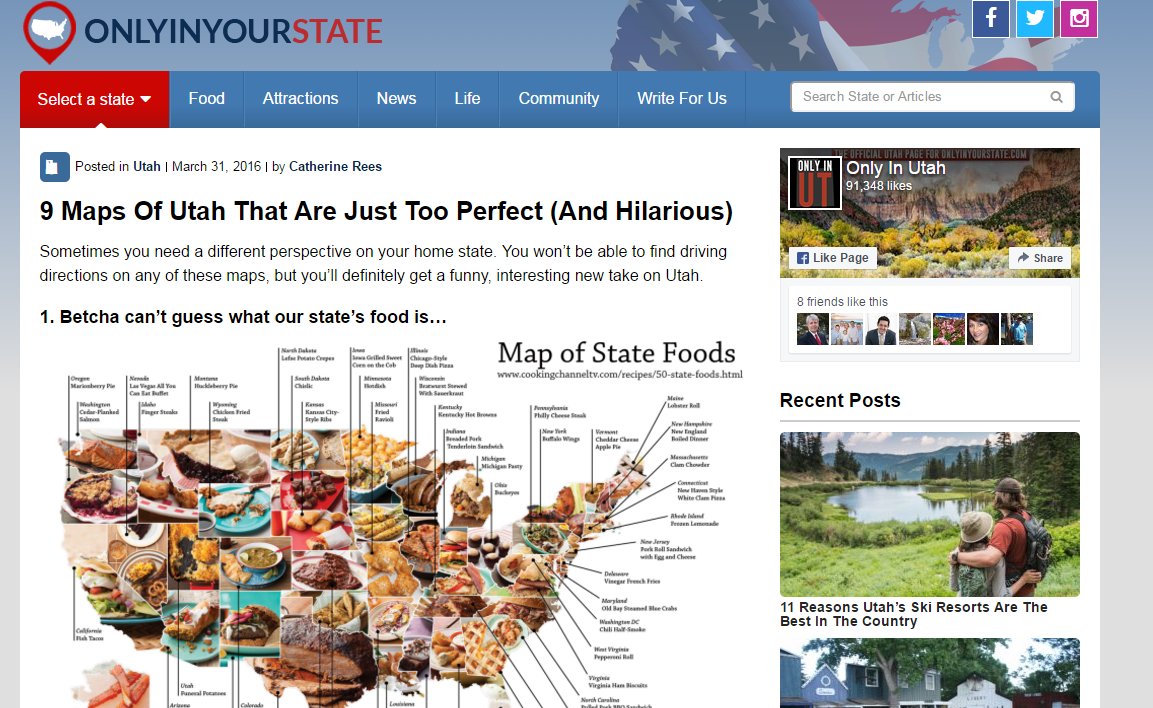

Light closer. The linked page includes a "map of state foods" and several other joke maps of Utah.

Preview of Thursday. The Thursday session Students bring laptops with QGIS installed. The "Playing with Symbology" activity is graded on participation: make a colorful map and upload a screenshot.

Confirm the Saturday due dates on Learning Suite before class. Lab 2 uses the checklist from the middle of this lecture, so point back at it.
