Working with Vector Data

Part 1: Creating, Digitizing, and Editing

CCE 114 Geomatics
Brigham Young University
Civil & Construction Engineering

Dr. Dan Ames and Dr. James Halgren

CCE 114 · Day 8 — Working with Vector Data

This Week's Goals

Today, Thursday, and Lab 4 all build toward these. By the end of the week you should be able to:

  • Understand where vector data comes from, and why a layer holds only one geometry type
  • Create a new empty vector layer, and make the three decisions it needs
  • Digitize points, lines, and polygons from imagery
  • Edit features that are already wrong, with the Vertex Tool
  • Design an attribute table and its schema
  • Save to disk, and say when to use a GeoPackage and when a shapefile
CCE 114 · Day 8 — Working with Vector Data

Where does vector data come from?

  • So far in this course you have added data somebody else made: Utah County roads, SGID streams, a DEM
  • Somebody had to make those. Sources:
    • Digitizing from imagery or scanned maps
    • Field survey: total station, GNSS, level loop
    • Conversion from CAD drawings or GPS tracks
    • Derived from other layers by analysis

center

  • Today is the first one: you are the somebody
  • The engineering question is always the same: how good does this have to be, and how will anyone know?
CCE 114 · Day 8 — Working with Vector Data

Reminder: three geometry types

  • Point: one coordinate pair. A well, a culvert, a street light
  • Line: an ordered list of coordinate pairs. A curb, a canal, a centerline. You will hear line and polyline used interchangeably
  • Polygon: a list that closes on itself. A parcel, a lake, a footprint
  • One layer holds one type. Pick it from the question, not the object
  • Name a feature a point represents perfectly, at any scale
  • Name a feature a line represents perfectly, at any scale
CCE 114 · Day 8 — Working with Vector Data

Part 1 — Creating a layer

An empty container, made on purpose

CCE 114 · Day 8 — Working with Vector Data

Three decisions before you draw anything

  1. Geometry type — point, line, or polygon. You cannot change it later without rebuilding the layer
  2. Coordinate reference system — normally match the project CRS. In our labs that is EPSG:26912, NAD83 / UTM zone 12N
  3. Schema — the columns of the attribute table, and the type of each one

center

  • All three are locked in when you click OK
  • Adding a field later is easy; changing geometry type is not
Ten seconds of thinking here saves a redraw of forty features
CCE 114 · Day 8 — Working with Vector Data

In-Class Activity: Create or download?

Why would you need to create data instead of just downloading it? Turn to your neighbor and discuss.

Then, together, write down three datasets you probably can't download and would have to create yourself, one of each type:

  • a point layer, a line layer, a polygon layer
  • for each: the projection you would use, if you know it
  • for each: the attribute fields it would need

center

6 minutes, with a partner

CCE 114 · Day 8 — Working with Vector Data

Making the layer in QGIS

center

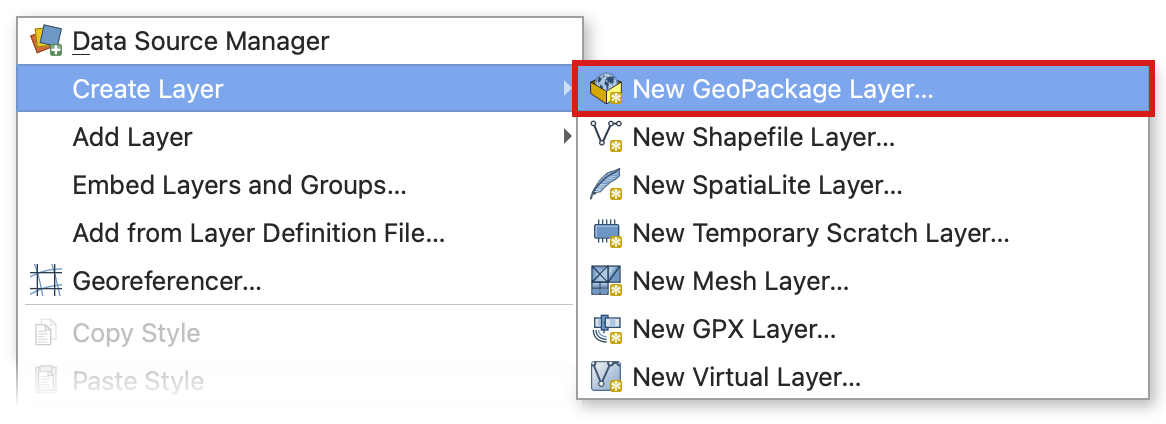

Layer → Create Layer → New GeoPackage Layer…

  • You will do this yourself for Lab 4 this week. We won't do it together right now
  • More practice on Thursday in the hands-on session
CCE 114 · Day 8 — Working with Vector Data

Shapefile or GeoPackage? You will see both

center

  • You will download plenty of shapefiles: many portals still hand them out, and QGIS opens them fine
  • When you create a layer in this class, make a GeoPackage
CCE 114 · Day 8 — Working with Vector Data

Field types you will actually use

An attribute table looks like a spreadsheet: rows and columns. The difference: in a spreadsheet you can type anything in any cell. In an attribute table each column is hard-wired to one data type.

Type Use it for Example
Text (string) names, categories, labels Fixture_Type = "LED cobra head"
Integer (32 bit) counts, ID numbers, whole units Voltage = 240
Decimal number measurements, areas, rates Area_sqft = 31842.7
Date when it was built or inspected Installed = 2019-07-14
CCE 114 · Day 8 — Working with Vector Data

You are mapping a campus

Which geometry type for each, and why?

  1. Emergency call boxes
  2. Sidewalks
  3. Building footprints
  4. The campus boundary
  5. Fire hydrants and the water mains between them
  • Is there a case where sidewalks should be polygons?
  • How about fire hydrants or call boxes?
CCE 114 · Day 8 — Working with Vector Data

Part 2 — Digitizing

Turning what you can see into coordinates

CCE 114 · Day 8 — Working with Vector Data

What digitizing means

  • Digitizing = tracing real-world features into coordinates the computer can store
  • Then: a paper map taped to a digitizing table, a puck with crosshairs, one click per vertex
  • Now: heads-up digitizing — imagery on screen, you draw over the top of it
  • Same idea, same errors, better coffee


Then: digitizing table, 1988


Now: imagery on screen

Photo: W. M. Ciesla, USDA Forest Service, 1988. Public domain, via Wikimedia Commons.

CCE 114 · Day 8 — Working with Vector Data

Digitize at the scale you intend to use

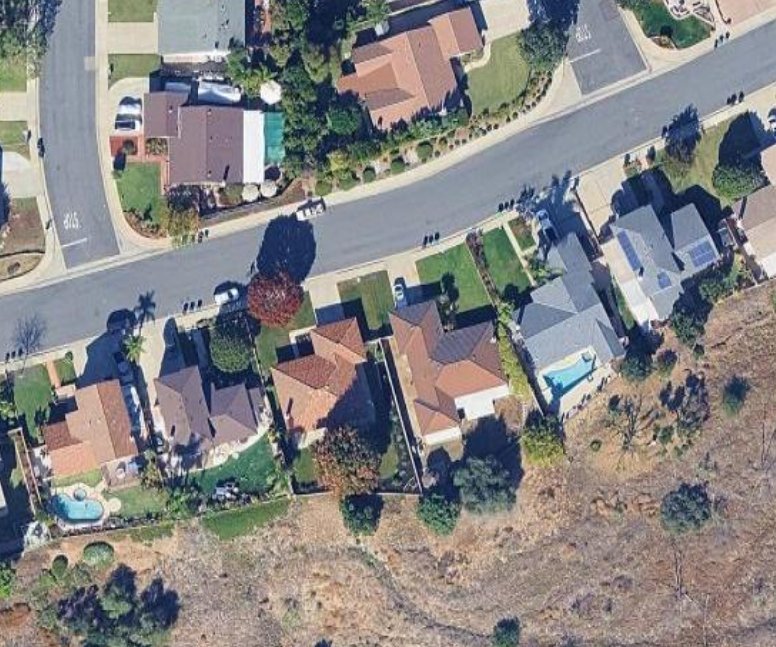

  • The imagery has a resolution; your eyes and mouse have a resolution too
  • Zoom in far enough that one screen pixel is smaller than the accuracy you need
  • Zoom in too far and you will spend all hour on one curb
  • Source scale limits the product. A line traced from a 1:100,000 map does not become accurate by loading it into a project drawn at 1:1,000

center

CCE 114 · Day 8 — Working with Vector Data

The digitizing loop in QGIS

  1. Select the layer in the Layers panel
  2. Toggle Editing — the yellow pencil
  3. Pick Add Point / Line / Polygon Feature
  4. Click each vertex; right-click to finish a line or polygon
  5. Fill in the attribute form, click OK
  6. Save Layer Edits, then toggle editing off
  • Nothing is on disk until step 6
  • The pencil is the switch for the whole layer: if a tool is grayed out, you almost certainly forgot step 2

center

CCE 114 · Day 8 — Working with Vector Data

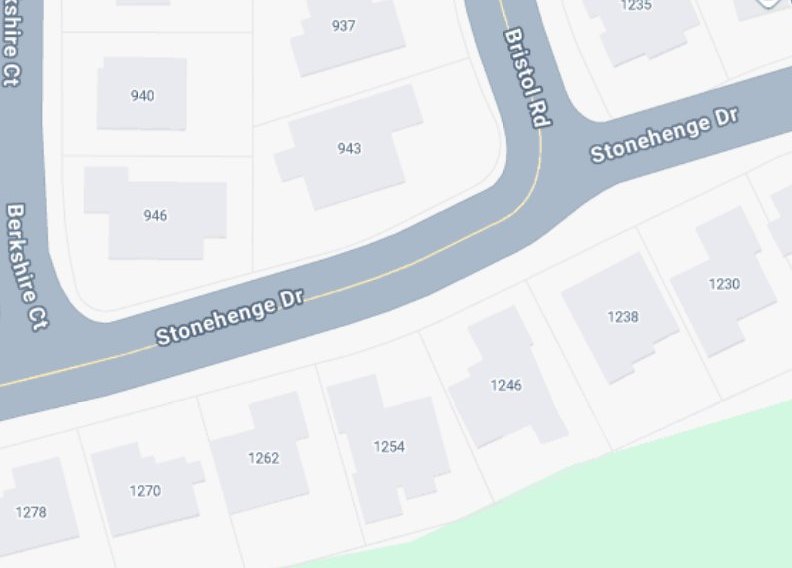

How many vertices does this road need?

  1. As few as possible
  2. As many as possible
  3. Enough that the line matches the imagery at the scale you will use it
  4. One every 10 meters, evenly spaced

center

CCE 114 · Day 8 — Working with Vector Data

Topology: when "close enough" is wrong

  • Topology is how features relate: connected, adjacent, contained
  • Undershoots and overshoots at a junction break network analysis: water does not flow across a 30 cm gap
  • Two parcels that overlap by a sliver mean the total area is wrong
  • A culvert point that is near the stream instead of on it will not join to it

center

  • QGIS tools that keep you honest:

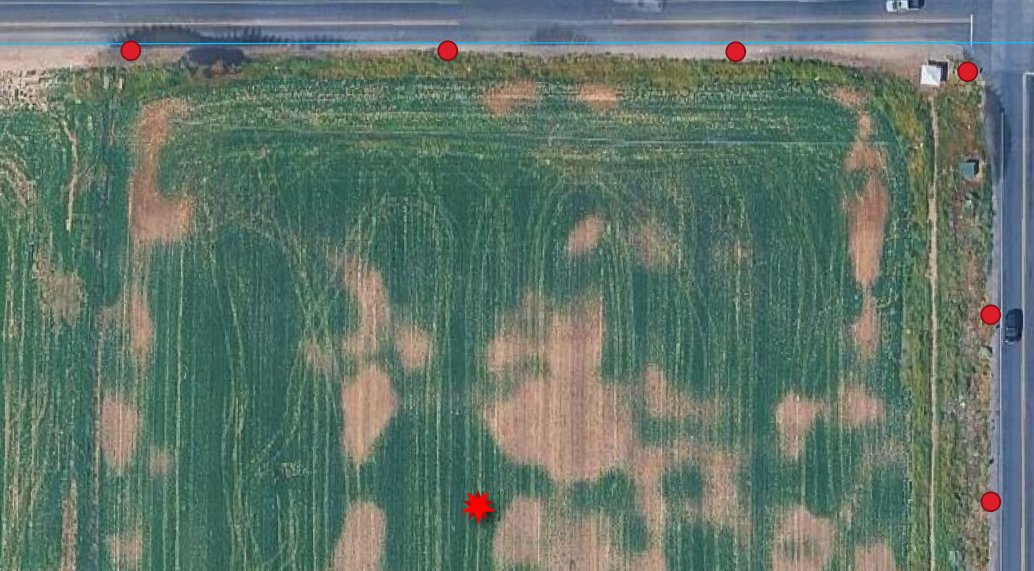

    • Enable Snapping before you draw (Lab 4 uses a 12-pixel tolerance)
    • Topological Editing — move a shared vertex once, both features follow
    • Avoid Overlap — new polygons get clipped to their neighbors
CCE 114 · Day 8 — Working with Vector Data

Part 3 — Editing

Most GIS work is fixing data, not making it

CCE 114 · Day 8 — Working with Vector Data

Fixing data that arrives wrong

  • Realistic workflow, and the one in Lab 4:
    1. Load authoritative data (UGRC SGID)
    2. Compare it against better imagery
    3. Screenshot the before
    4. Move vertices onto what you can actually see, with the Vertex Tool
    5. Screenshot the after, and save
  • The before/after pair is the evidence that you changed something on purpose

center

CCE 114 · Day 8 — Working with Vector Data

Part 4 — Attribute tables and schemas

The other half of every vector layer

CCE 114 · Day 8 — Working with Vector Data

Geometry is only half the layer

  • Every vector layer is geometry + a table: one row per feature, one column per fact
  • The row and the shape are the same feature. Select the row, the shape highlights
  • Geometry answers where. Attributes answer what, how big, how old, whose
  • Almost every question you will be asked is an attribute question with a spatial filter

center

  • "Which street lights on 100 South are over 20 years old?"
    • street lights → the layer
    • on 100 South → geometry
    • over 20 years old → attributes
CCE 114 · Day 8 — Working with Vector Data

Designing a schema

  • A schema is the table structure: field names, types, and lengths
  • Ask before you draw:
    • What will I label these features with?
    • What will I symbolize or filter by?
    • What will somebody else need in five years?
  • Name fields for humans: Fixture_Type, not FT2

center

Example schemas from Lab 4

Street_Lights (Point)
ID (integer) · Fixture_Type (text) · Voltage (integer)

Temple_Footprint (Polygon)
Name (text) · area (decimal)

CCE 114 · Day 8 — Working with Vector Data

What is wrong with this schema?

A student builds a Buildings polygon layer with:

  1. name — Text
  2. height — Text, e.g. "42 ft"
  3. yr — Text, e.g. "1994"
  4. id — Integer
  5. notes — Text, 10 characters
CCE 114 · Day 8 — Working with Vector Data

Part 5 — Saving to disk

Where does the data actually live?

CCE 114 · Day 8 — Working with Vector Data

Editing is in memory until you save

  • Toggling editing on puts the layer's changes in an edit buffer, not on disk
  • Save Layer Edits writes that buffer to the file
  • Toggling editing off prompts you to save or discard
  • Saving the project is not saving the data. The .qgz file stores where your layers are and how they are drawn — not the features themselves

center

  • Two separate save habits: save layer edits often, and save the project often
  • A temporary scratch layer never had a file at all, and vanishes when QGIS closes
CCE 114 · Day 8 — Working with Vector Data

Thursday: hands-on in QGIS

  • In-class activity: Creating and Editing Vector Data
  • Bring your laptop with QGIS 3.44 installed
  • Load a satellite basemap and zoom to your own home
  • Create point, line, and polygon layers and digitize your house and your street
  • Practise snapping and topology so your lines actually meet
  • Turn in a screenshot or PDF of your digitized home
CCE 114 · Day 8 — Working with Vector Data

Final Thoughts

Quiz: Who Drew That Line? Eight questions on your phone: what to settle before you draw anything, turning what you see into coordinates, and the table and the save. Scan the code, or open the link under it.

  • Not graded, and every answer explains itself
  • Good practice for this week's open-book quiz

Before next class

center

byu-hydroinformatics.github.io/cce114-geomatics/quizzes/vector/

CCE 114 · Day 8 — Working with Vector Data
