Week 1 review lecture. Most students have had an introductory GIS course, so this hour is a refresher on data models rather than a first exposure. The hands-on look at ArcGIS Pro comes at the end of the hour, and the full version is Lab 1.

stamp:begin

stamp:end

The shape of the hour. We start with a river and ask what it means to model it, then encode a shape three different ways with nothing but numbers, and finish by opening real data in ArcGIS Pro.

Read these out loud at the start and come back to them at the end. The last one is what we do together at the end of the hour, and it is the bridge into Lab 1.

Everything in this course is a model in this sense. A GIS layer is never the thing itself; it is a simplification someone chose, for a purpose, and the choice is what we are studying.

Take answers from the room before advancing: a photo, a video, a map, a cross section, a hydrograph, a table of gage readings, a hydraulic model. The next few slides work through the ones people usually name.

This is a rafting ride on the Lochsa River in Idaho on Memorial Day weekend 2013 (May 28, 2013). Click the thumbnail to open it in a new tab. Is this video "reality" or a "model"? It is a video of reality, but it is actually a model: a representation of reality.

This is the Lochsa River in northern Idaho. A photo is a raster: a grid of pixels, each holding a color.

A map is a model. Watershed boundaries as polygons, the river itself as a polyline, gage sites as points: vector.

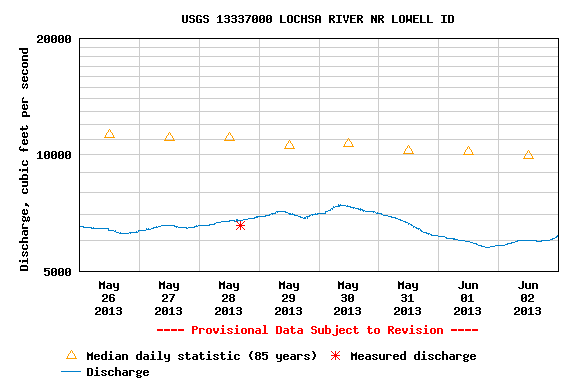

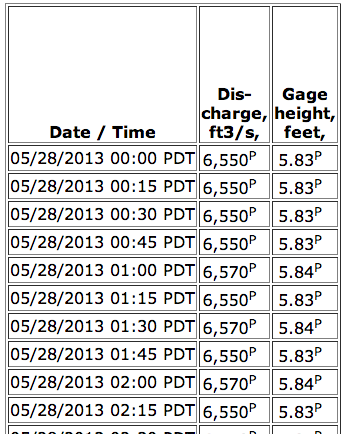

Two more representations of the same river on the same day: the USGS gage table and the hydrograph. Which "model" gives you more information, the video or the plot? What kind of information is provided in both? What is not communicated in each? The honest answer is "it depends on the question", which is the point of the whole hour. Table source: USGS NWIS site 13337000, May 28-29, 2013.

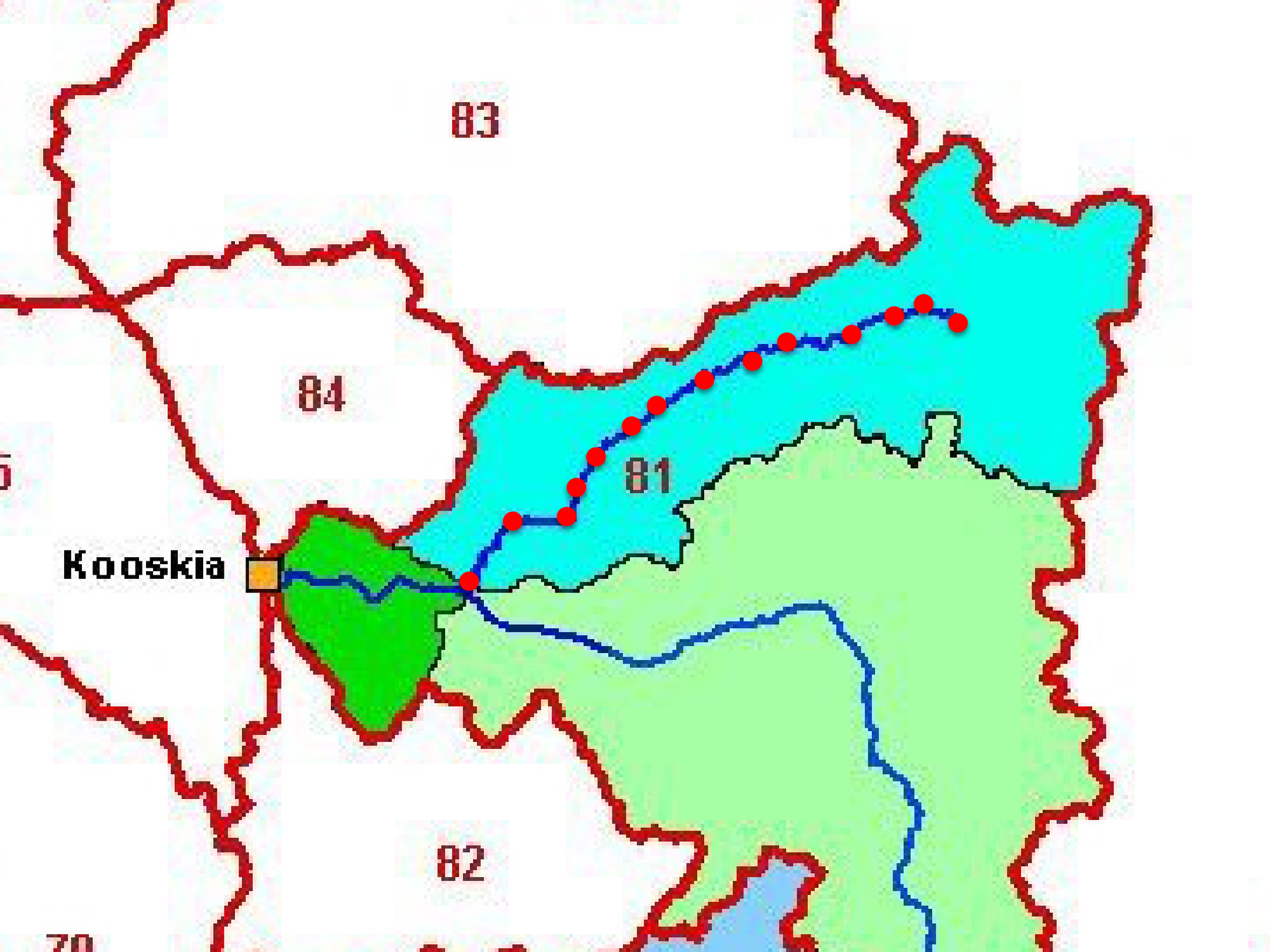

What about this "model" of the Lochsa River? What information do you learn from this model that you don't get from the others? How are you going to represent this in numbers? Identify the vertices, get the XY values, and list them. That is the vector data model, and the next slides make it explicit.

Ask them to picture the river vertices from the last slide. What did the computer actually have to store for each vertex? Just a coordinate pair. A gage site is one pair; the river is an ordered list of them.

River = an ordered list of coordinate pairs. Watershed boundary = the same, but the last pair repeats the first to close the ring.

"Polyline" is the data model. A shapefile, a feature class in a file geodatabase, a GeoPackage, or a GeoJSON file are file formats. The same river could be stored in any of them and still be a polyline. We come back to this with the quiz slides at the end.

Section break. From here on we encode the same shape three different ways, using nothing but numbers.

Look at this state outline. Anyone know which state it is? Right, Colorado. How did you know? Spatial reasoning based on the shape and the location of Denver. How can we represent this state shape using the fewest bytes of memory possible? Let's digitize the corners. I have to measure them from some point of origin; for this example I measured distances from an origin at the exact center of the image. We also need to know the units. Here the units are inches, so we would need to scale them up to kilometers to make this "geolocatable".

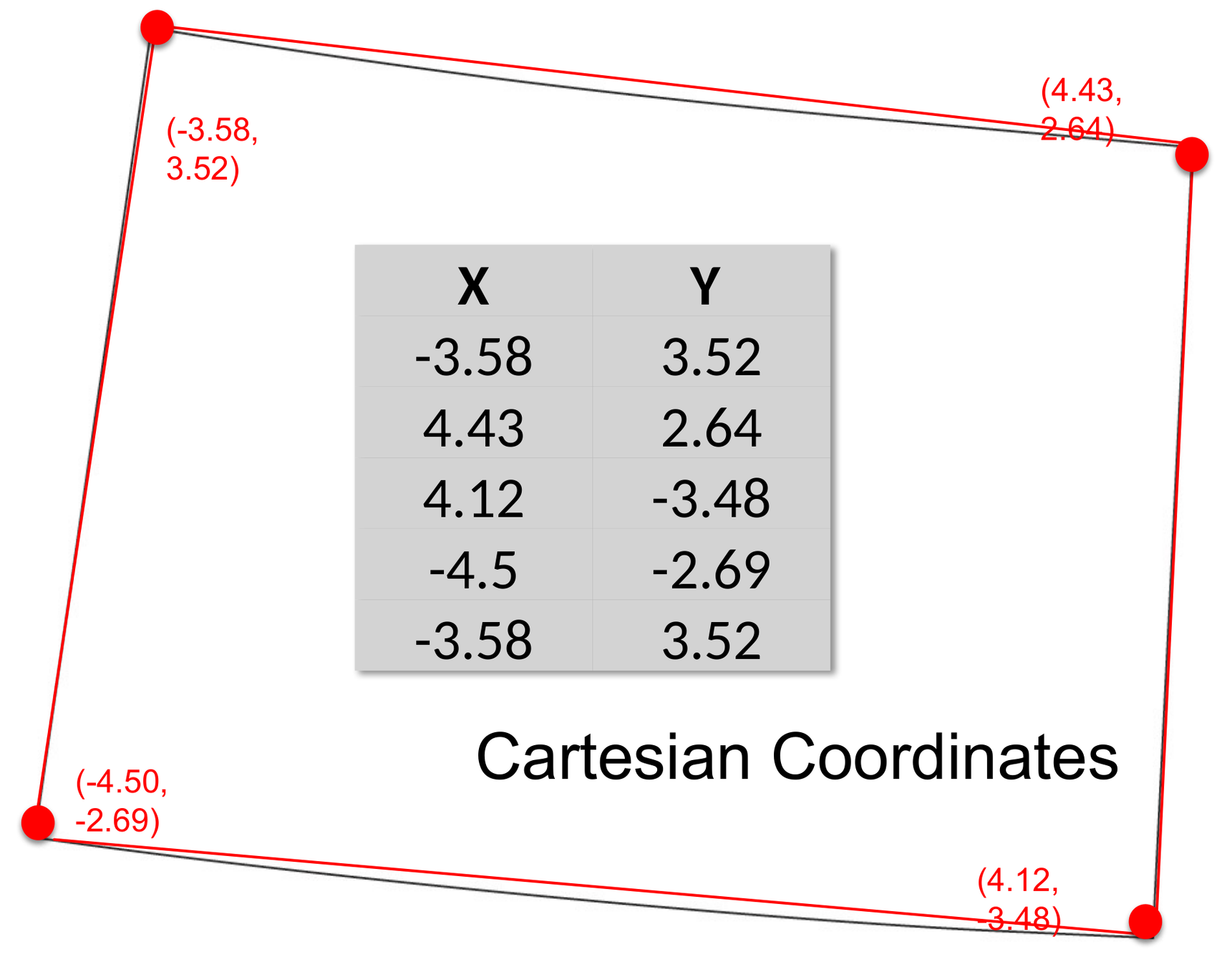

Given just these coordinates, we can come up with a numeric representation of the shape. Why are there five rows in the table? Because we need to "close" the polygon. This is typical of spatial data representation in most data models. It takes 8 bytes (64 bits) of memory to hold a single double-precision real number, so how much memory is required to store this polygon? 80 bytes. How accurate is this representation of Colorado? Not very. The red lines are straight and the black lines are curved. But isn't Colorado a rectangle? The data are projected. Coordinate systems and projections get their own week later in the semester.

Here is another way to represent the geometry of the state. What method is this? A polar (radial) coordinate system: we assume one point at an origin and measure the distance and angle to each of the other points in sequential order. L is the length and theta is the angle measured from due east.

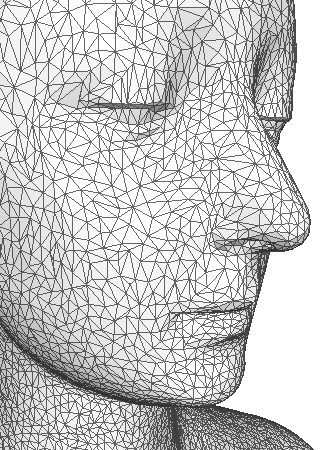

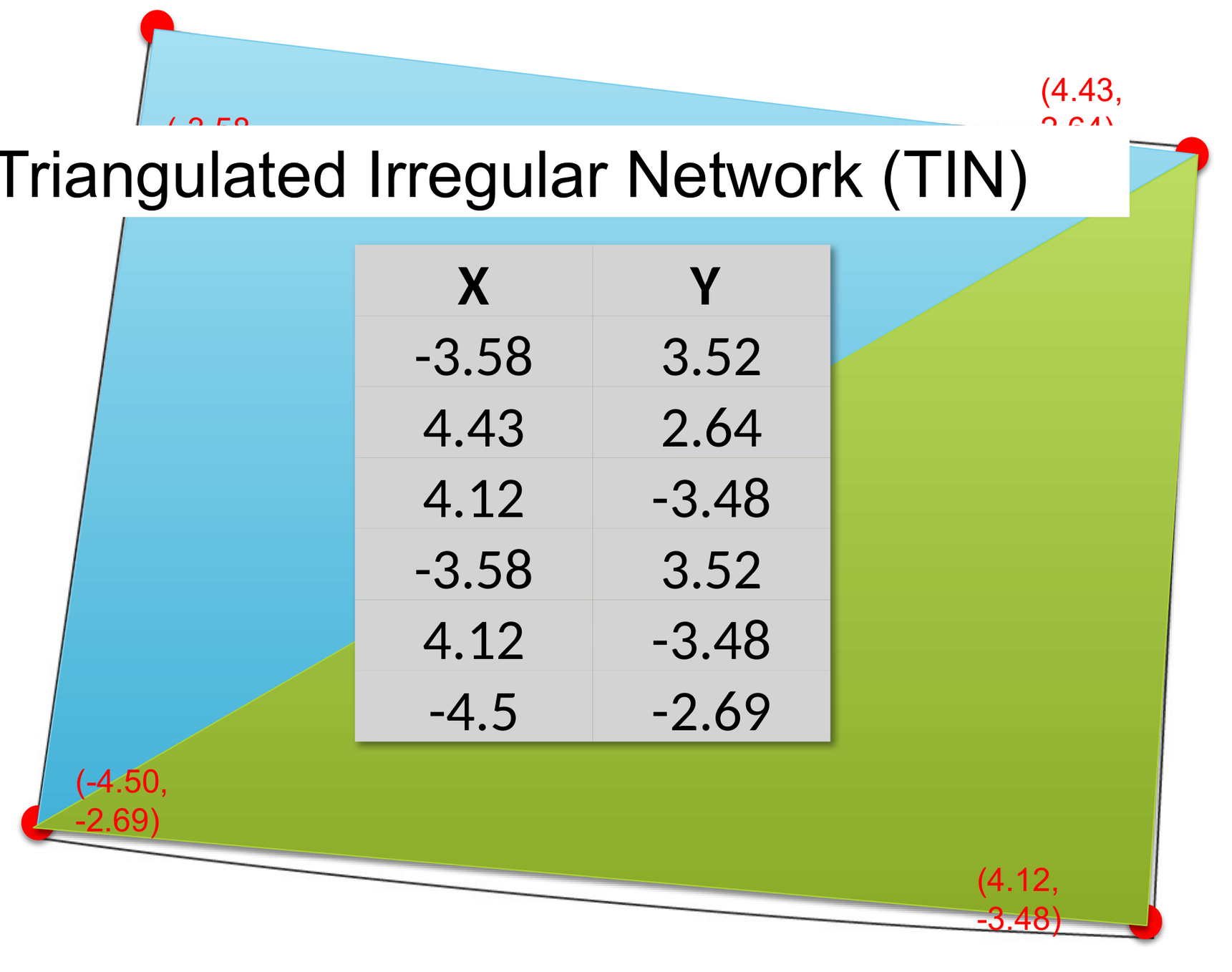

Another way: triangles. In what case would this be a very efficient method for representing data? You can use triangles to represent 3D objects like an elevation surface really efficiently, because it uses fewer triangles in large flat areas and more triangles in rough, highly varying areas. For a video game, for example, it is most efficient to represent objects and terrain as triangles with textured images on the faces.

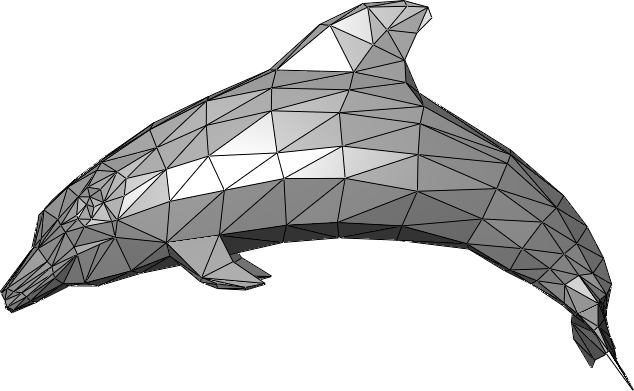

Big triangles where the surface is flat, small triangles where it curves. Same idea as the Colorado slide, applied to a curved 3D object.

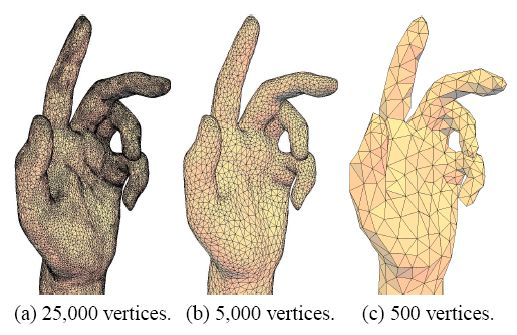

The three hands are the same shape at 25,000, 5,000 and 500 vertices. Ask which one you would choose for a video game and which for a surgical simulator — the answer is the whole point of choosing a data model.

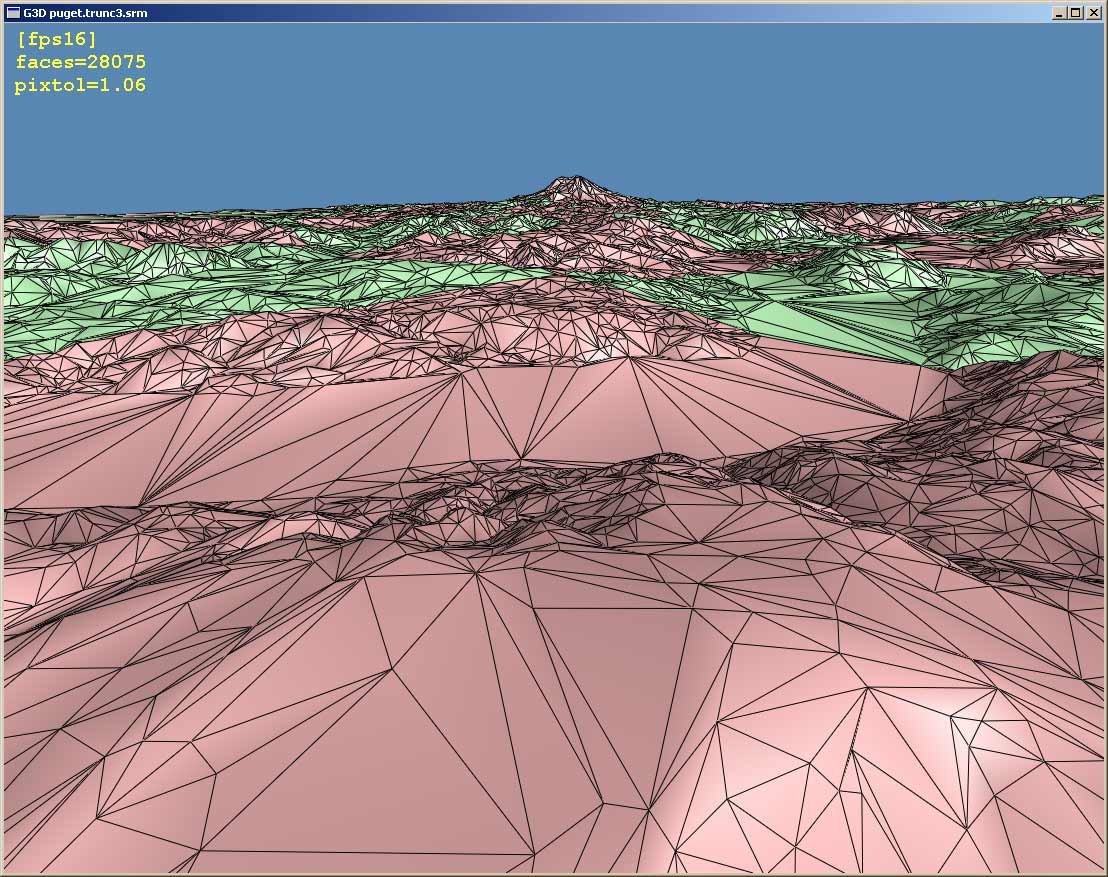

Terrain as a TIN: exactly how game engines and many engineering surface models store elevation. Note the frame rate and face count in the corner — the compression is the reason to use it.

Stale screenshot: this is a capture from an older 3D viewer, kept because it is the source deck's figure. A current ArcGIS Pro 3D scene of a TIN would be a better replacement.

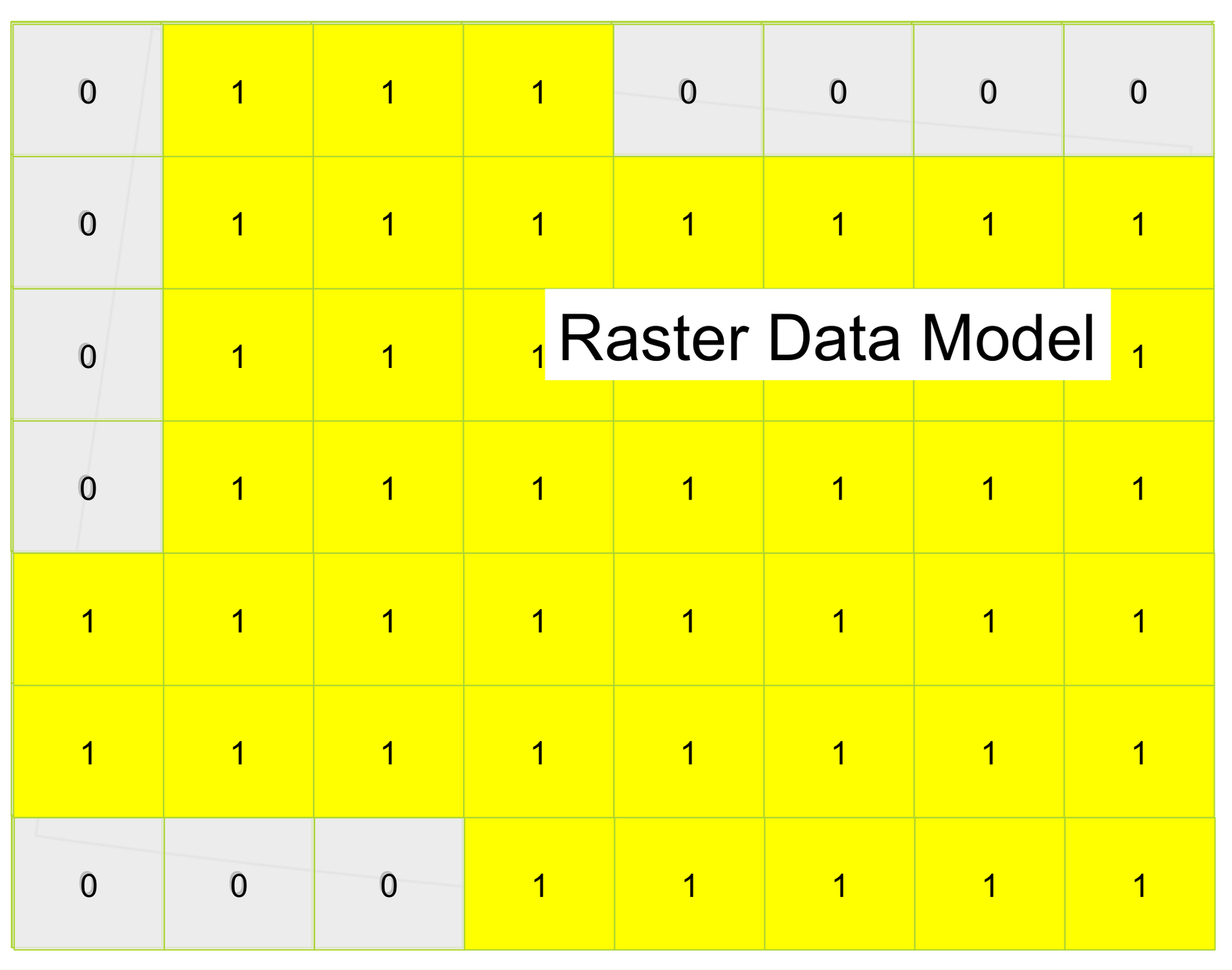

Another way to represent Colorado: a raster. A raster is a regularly spaced grid of values. The raster has to be completely filled in, so you need to specify which value means "no data". Here 0 means no data and 1 marks the state. What is good about it? Fast, easy to fill in. What is bad? Pixelated borders and a lot of memory. How many bytes? 360 here. Is this a "better" data model? Does the additional storage result in more accuracy? No.

What do you think of the higher-resolution raster? Does it make sense to represent a polygon with a raster data model? No? Then what kind of data would it make sense to represent with a raster?

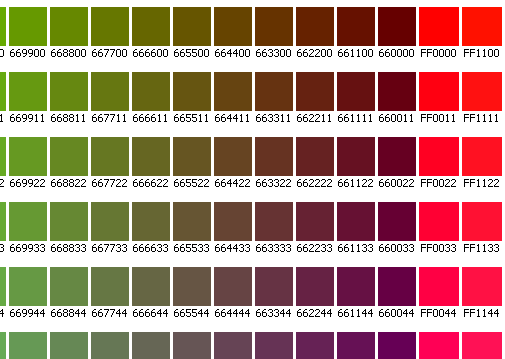

Digital photos are raster images. Each pixel has a different value from the one next to it, representing a different color. Raster works really well for digital photos.

Raster. Each cell contains a temperature value; the colors are drawn by the GIS software based on the value. Temperature is continuous: it has a value everywhere, which is exactly what a raster stores.

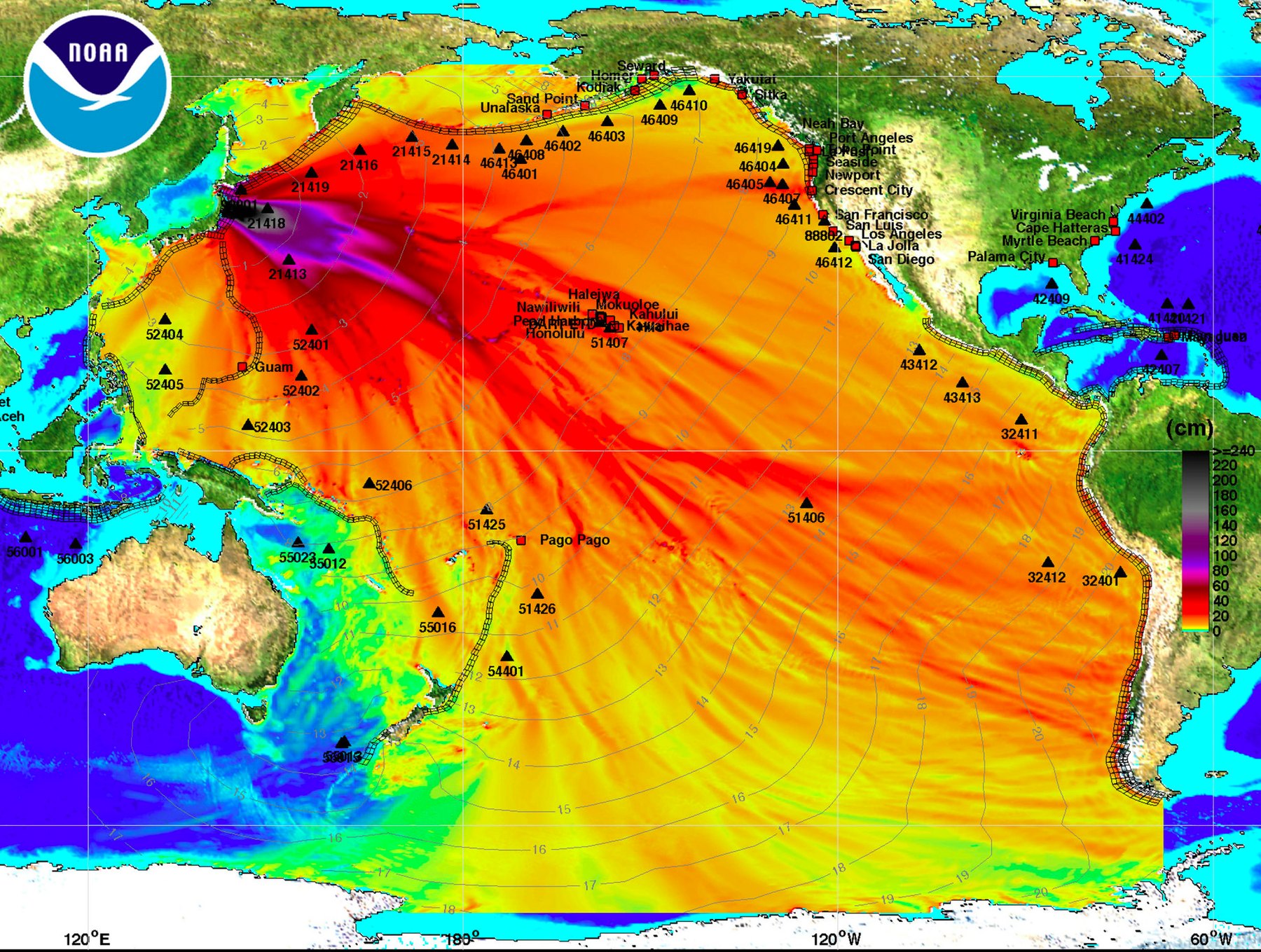

Predicted wave heights and propagation times for the 2011 Fukushima earthquake, from NOAA. Another continuous surface: every cell of ocean carries a value.

How about terrain? Ask what you would have to store to describe this valley to a computer, then advance.

Raster: a regular grid of elevation values drawn as a wireframe surface. Compare it with the TIN terrain slide: the spacing here is regular, the TIN's was not.

The summary. Discrete things you can count — towers, roads, parcels — are vector. Things that vary everywhere — elevation, temperature, imagery — are raster. TINs are a compact way to store surfaces for 3D work. Ask the room for one example of each from their own discipline before moving on.

Points — U.S. cities. Yes, you could store the coordinates in a text file or a spreadsheet; that is exactly what a CSV of latitude and longitude is. What a plain text file does not give you is a spatial index, a coordinate system definition, or a way to store the geometry of a line or polygon compactly.

Polylines — major U.S. rivers. The distinction to land here: "vector" is the data model, the conceptual organization; "shapefile" is one file format that can hold it. The same rivers could be a feature class in a file geodatabase, a GeoPackage, or a GeoJSON file and still be polylines.

Polygons — U.S. counties. Each county is a closed ring of coordinates. Ask what has to be stored where two counties share a border, and whether it gets stored twice.

Raster — a continental elevation surface. Continuous, highly variable data with a value everywhere. Common formats: GeoTIFF, IMG, and the raster datasets inside a geodatabase.

Stale screenshot: this figure is an ArcMap-era map export. Fine as a picture of a raster, but worth re-making in ArcGIS Pro.

The payoff of the hour. Every one of the vector layers we just looked at has a table behind it, and the row and the shape are the same object.

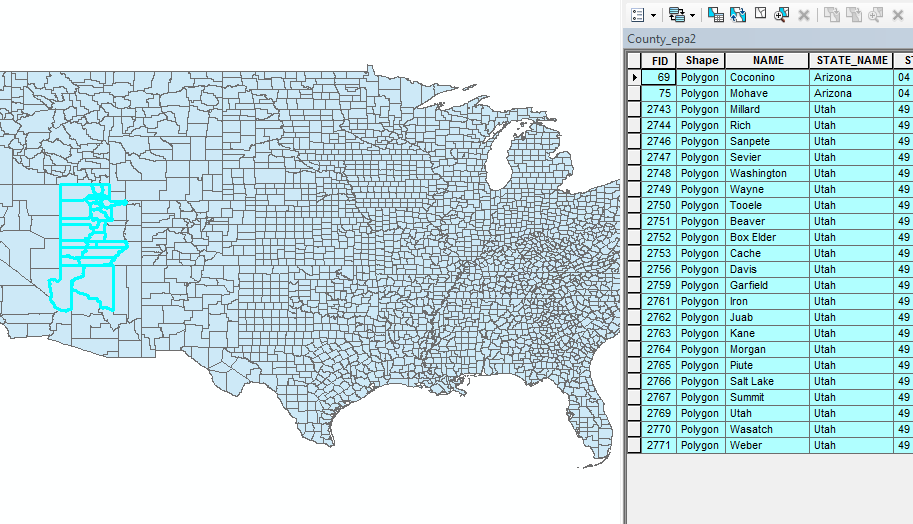

Select a row in the table and the county lights up on the map; select a county on the map and its row highlights. The geometry and the attributes are the same record. This is what separates GIS from a drawing program.

Stale screenshot: this is an ArcMap attribute-table window, not ArcGIS Pro. Re-shoot in Pro with the same counties layer.

Do this together at the end of the hour. Keep it to about ten minutes as a look, not a tutorial; the full version is Lab 1. Add layers one at a time and ask the same question after each: what did the computer have to store in order to draw that? The screenshot on the right is that data in ArcGIS Pro: the three layers in the Contents pane, the map, and the Catalog pane open to the project geodatabase. Lab 1 is where the same data is headed.

Capture: ArcGIS Pro 3.7.1 at 175 % display scaling, October 10, 2026, C:\Ames\Lab01\Lab01.aprx (the Lab 1 GUI build): UtahCountyRoads, CensusTracts2020 and Counties over the topographic basemap, Contents docked left, Catalog open to Lab01.gdb.
