Elevation Data and LiDAR

Where a surface comes from before you analyze it

CE 414 Engineering Applications of GIS
Civil & Construction Engineering
Brigham Young University

Dr. Dan Ames

CE 414 · Week 5 — Elevation Data and LiDARLast Updated: 2026-10-01© 2026 Daniel P. Ames · CC BY 4.0

Today's Goals

By the end of class you should be able to:

  • Define an elevation surface, and name the ways a DEM can represent one
  • Explain how LiDAR measures a surface, and what a point cloud is
  • Say what a return is, and how a bare-earth model is separated from a canopy
  • Name three sources of free DEMs and the cell size each one gives you
  • Choose the right cell size for the right job

Photo: “Mount Timpanogos - 01-07-08” by a4gpa, CC BY-SA 2.0, via Wikimedia Commons. Figure CC BY-SA 2.0. Elevation: USGS 3DEP.

CE 414 · Week 5 — Elevation Data and LiDAR

Part 1

What an elevation surface is

CE 414 · Week 5 — Elevation Data and LiDAR

Elevation surface and DEM

  • Elevation surface: the real ground elevation at each point
  • Digital Elevation Model (DEM): a digital representation of that surface

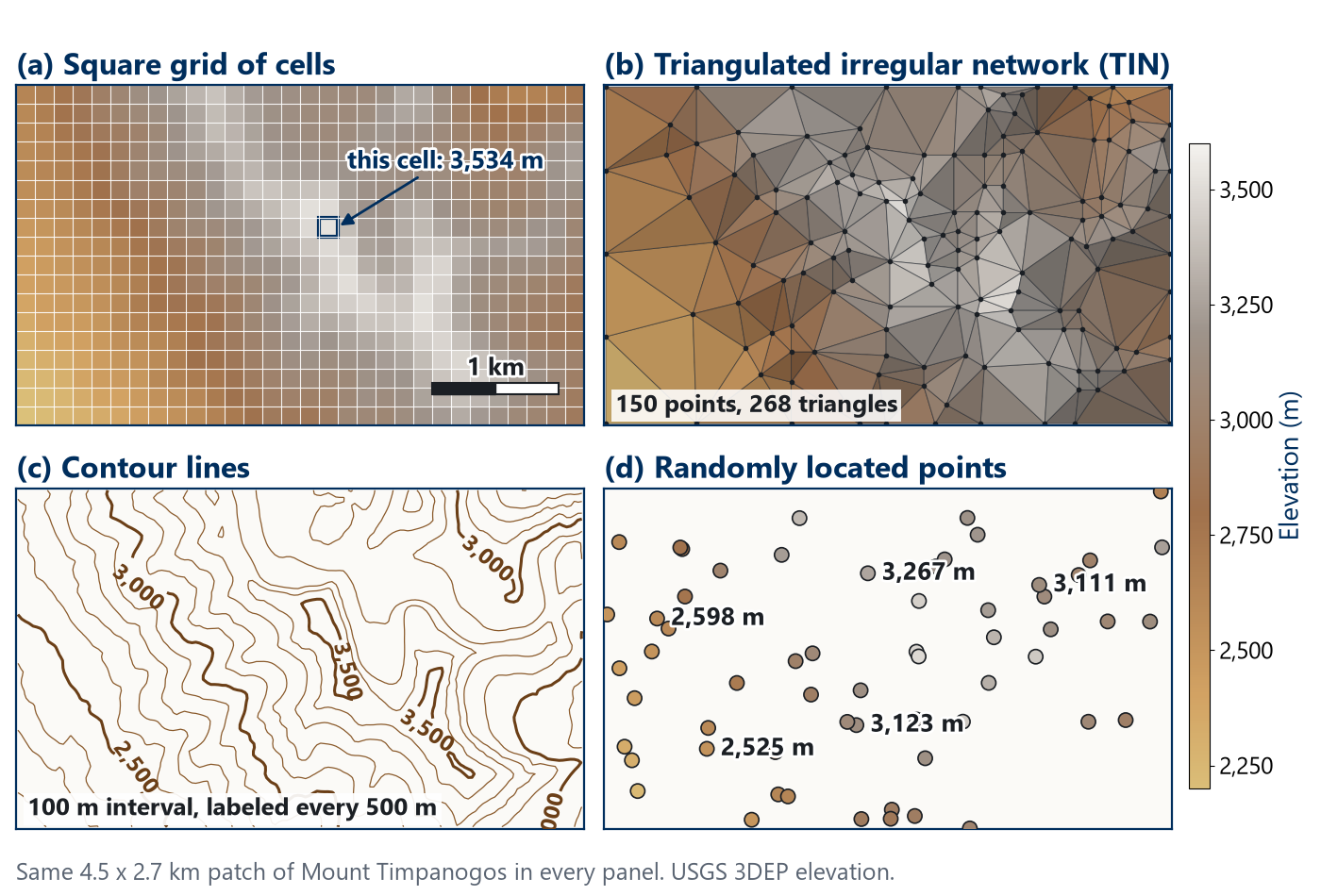

  • Four ways to build one, shown here for the same terrain
  • The square grid is the most common DEM in hydrology and engineering. It is the one we focus on, and use most, in this class.

center

CE 414 · Week 5 — Elevation Data and LiDAR

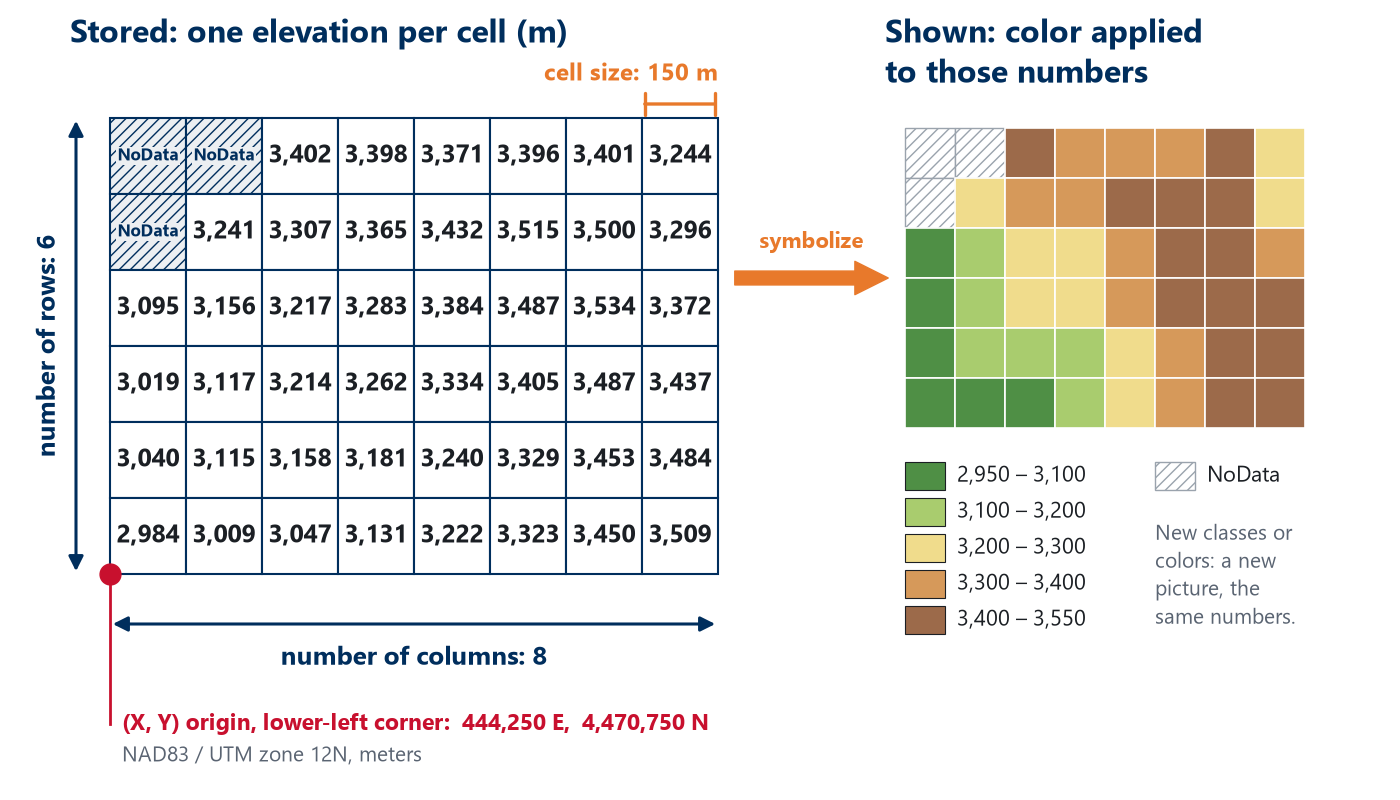

Digital elevation grid

A grid of square cells in a coordinate system, with the land surface elevation stored as the value in each cell.

center

CE 414 · Week 5 — Elevation Data and LiDAR

Part 2

How elevation gets measured

CE 414 · Week 5 — Elevation Data and LiDAR

LiDAR

Light Detection And Ranging

The cutting edge: the most modern, most detailed way we measure elevation today

CE 414 · Week 5 — Elevation Data and LiDAR

What is LiDAR and how does it work?

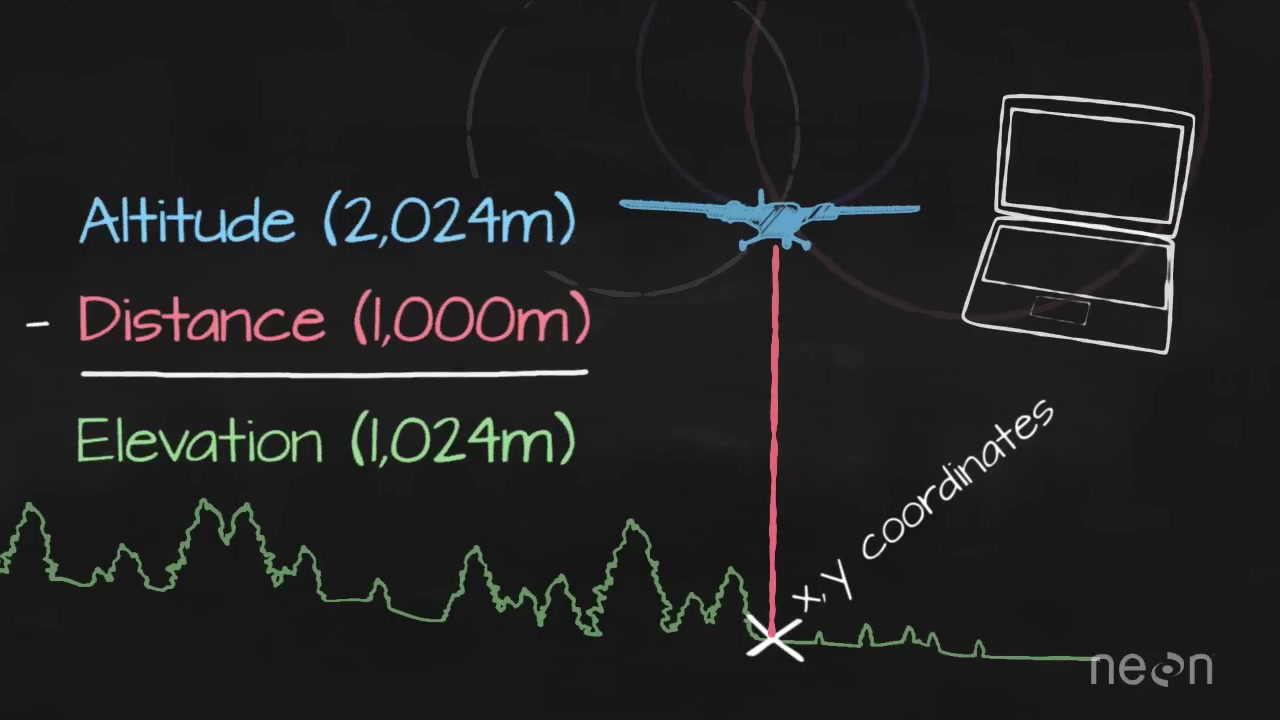

  • Fire a pulse of laser light, measure how long it takes to come back
  • Time of flight × speed of light ÷ 2 = range
  • Combine range with the sensor's own position and orientation (GPS and IMU) to get an (x, y, z) point
  • Hundreds of thousands of pulses a second gives a point cloud

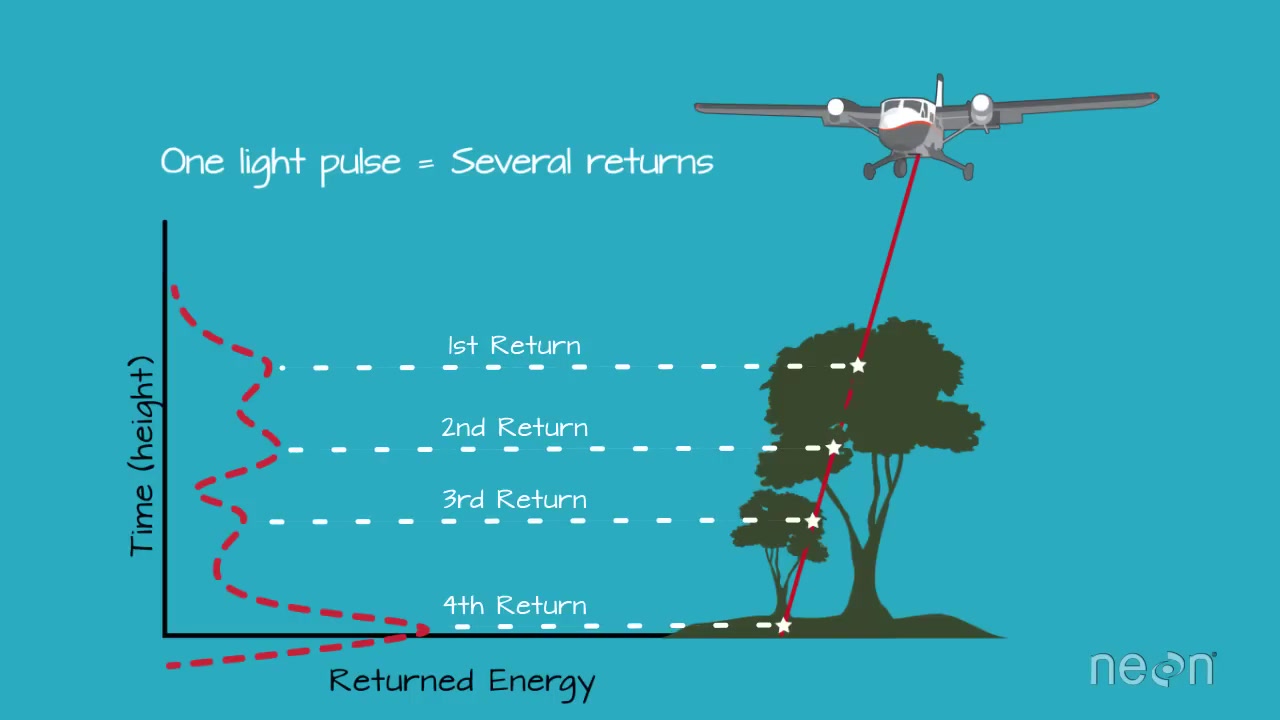

  • A single pulse can return more than once — treetop, branch, ground

center

center

Frames from How Does LiDAR Remote Sensing Work? · NEON Science. Click to play from 2:14

CE 414 · Week 5 — Elevation Data and LiDAR

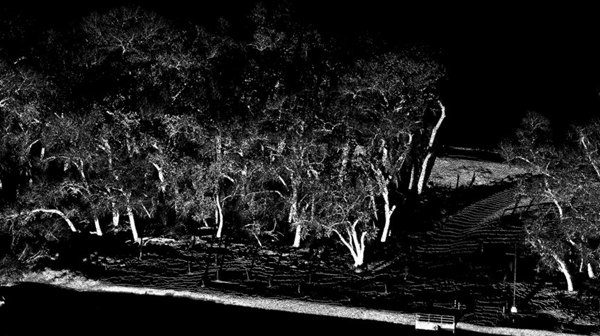

A forest, in points

center

CE 414 · Week 5 — Elevation Data and LiDAR

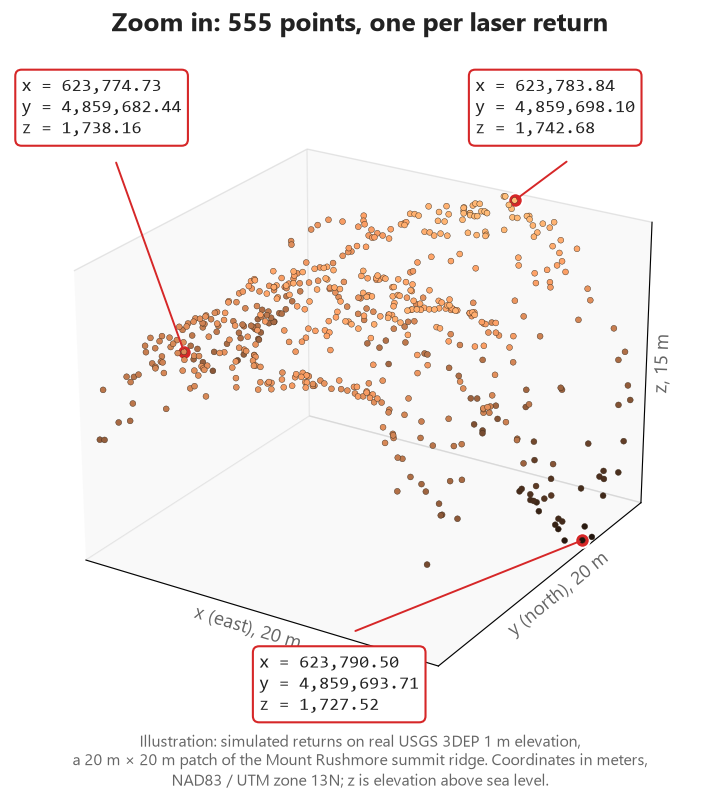

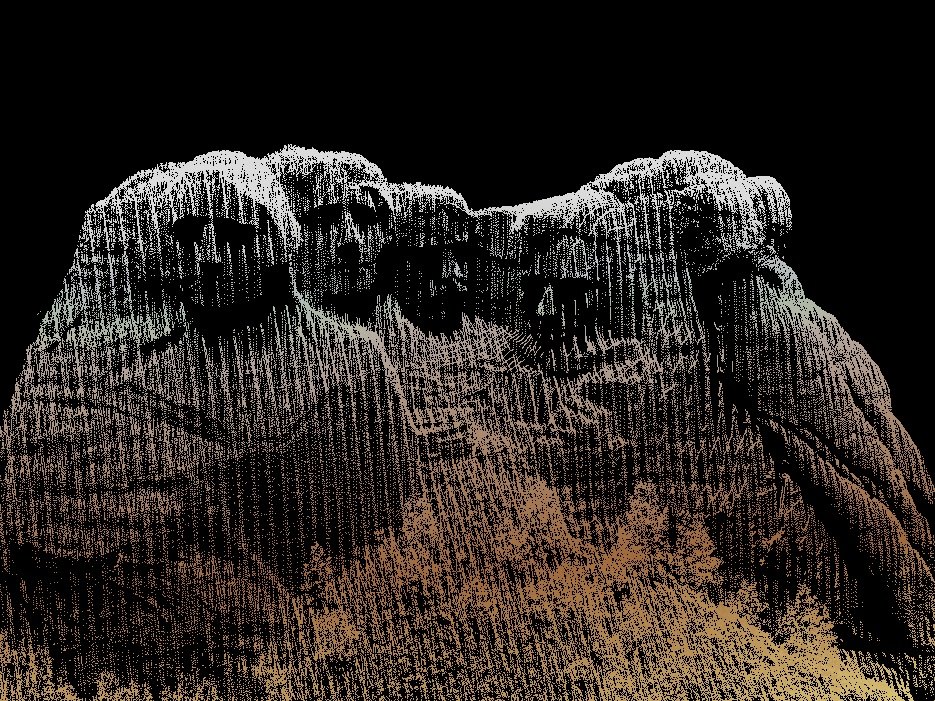

Mount Rushmore as a point cloud

center

center

CE 414 · Week 5 — Elevation Data and LiDAR

Where the scanner sits

  • LiDAR is a measurement, not a vehicle. It can ride on many platforms
  • Airborne: an airplane, helicopter or drone. Covers a whole county, looking straight down
  • Ground-based (terrestrial): a scanner on a tripod. Covers one site, looking sideways, at much higher point density
  • Ground-based scans are common for hillsides, cliffs and mountain faces, and for buildings, bridges and monuments
CE 414 · Week 5 — Elevation Data and LiDAR

A city as a surface

  • Scanned from an airplane, looking straight down
  • Think about it: why do the sides of the buildings look tall and smeared?
  • An airborne scan is top-down. The laser hits roofs and the ground, but almost never a vertical wall, so the surface just stretches from the roof edge down to the street.
CE 414 · Week 5 — Elevation Data and LiDAR

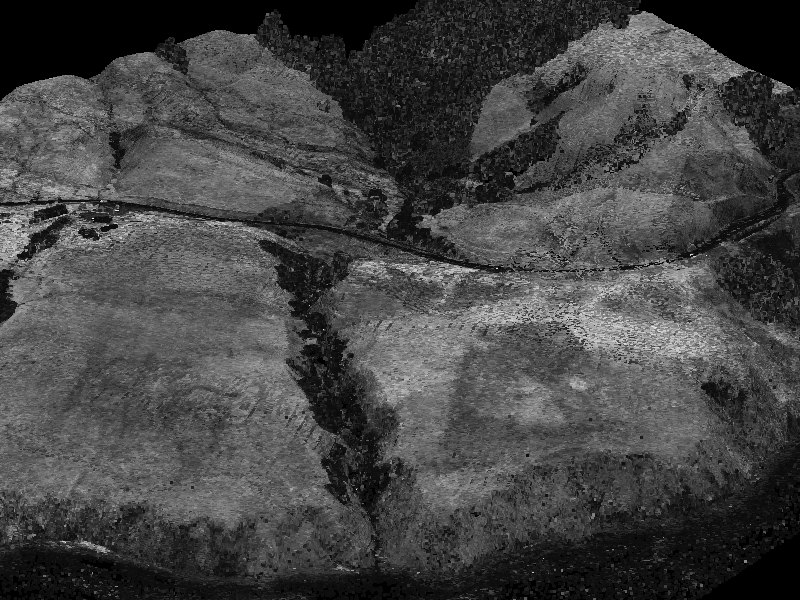

The raw point cloud

center

CE 414 · Week 5 — Elevation Data and LiDAR

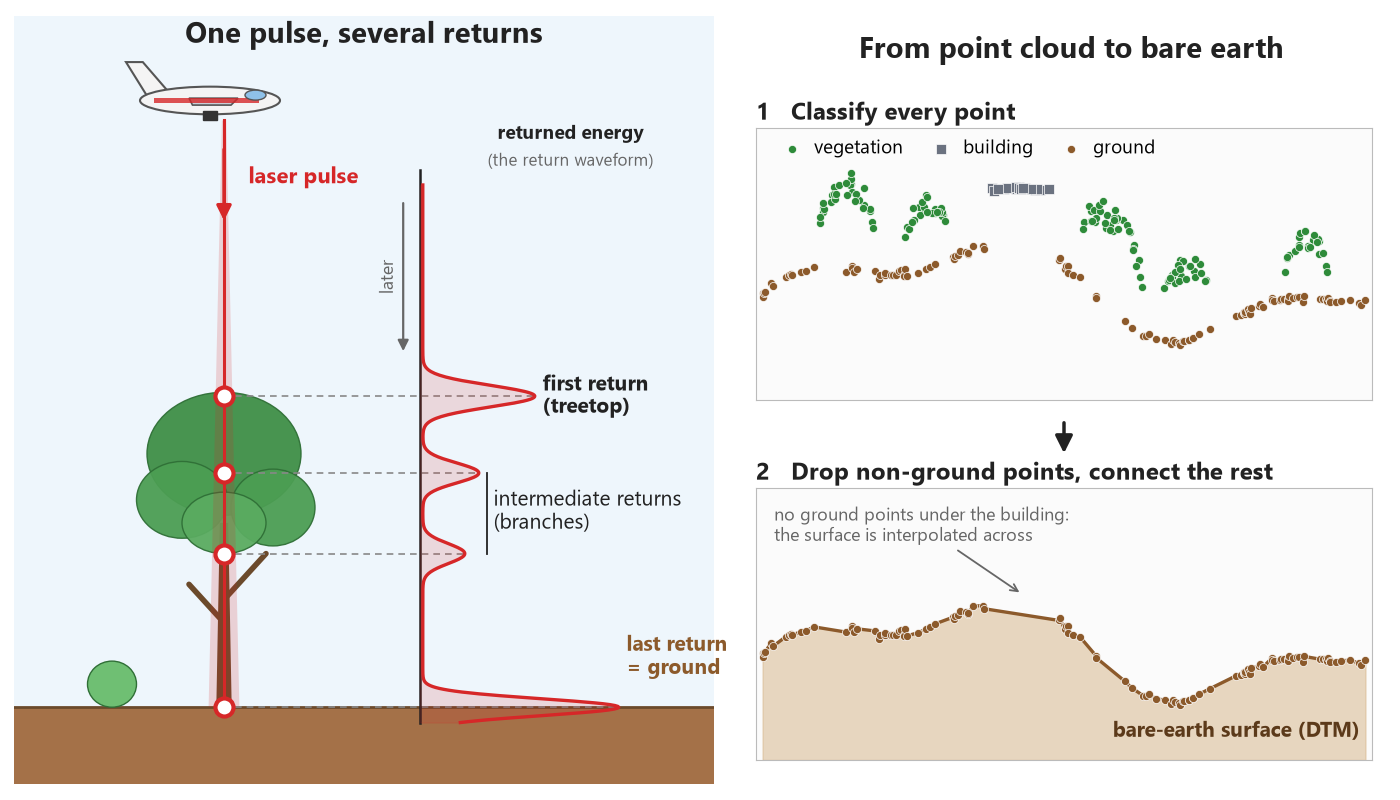

From returns to bare earth

center

CE 414 · Week 5 — Elevation Data and LiDAR

Bare-earth terrain, hillshaded

center

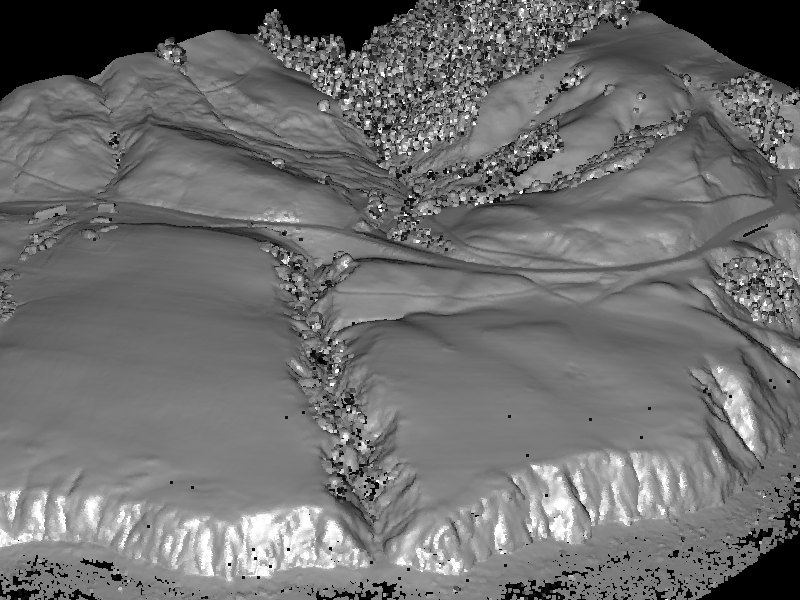

Smooth gray: the bare-earth surface built from ground returns. Clumps: vegetation returns, left on as points so you can see what was removed.

CE 414 · Week 5 — Elevation Data and LiDAR

Part 3

Where to download digital elevation model data

CE 414 · Week 5 — Elevation Data and LiDAR

Cell size changes what you can see

30 m cells

center

100 m cells

center

CE 414 · Week 5 — Elevation Data and LiDAR

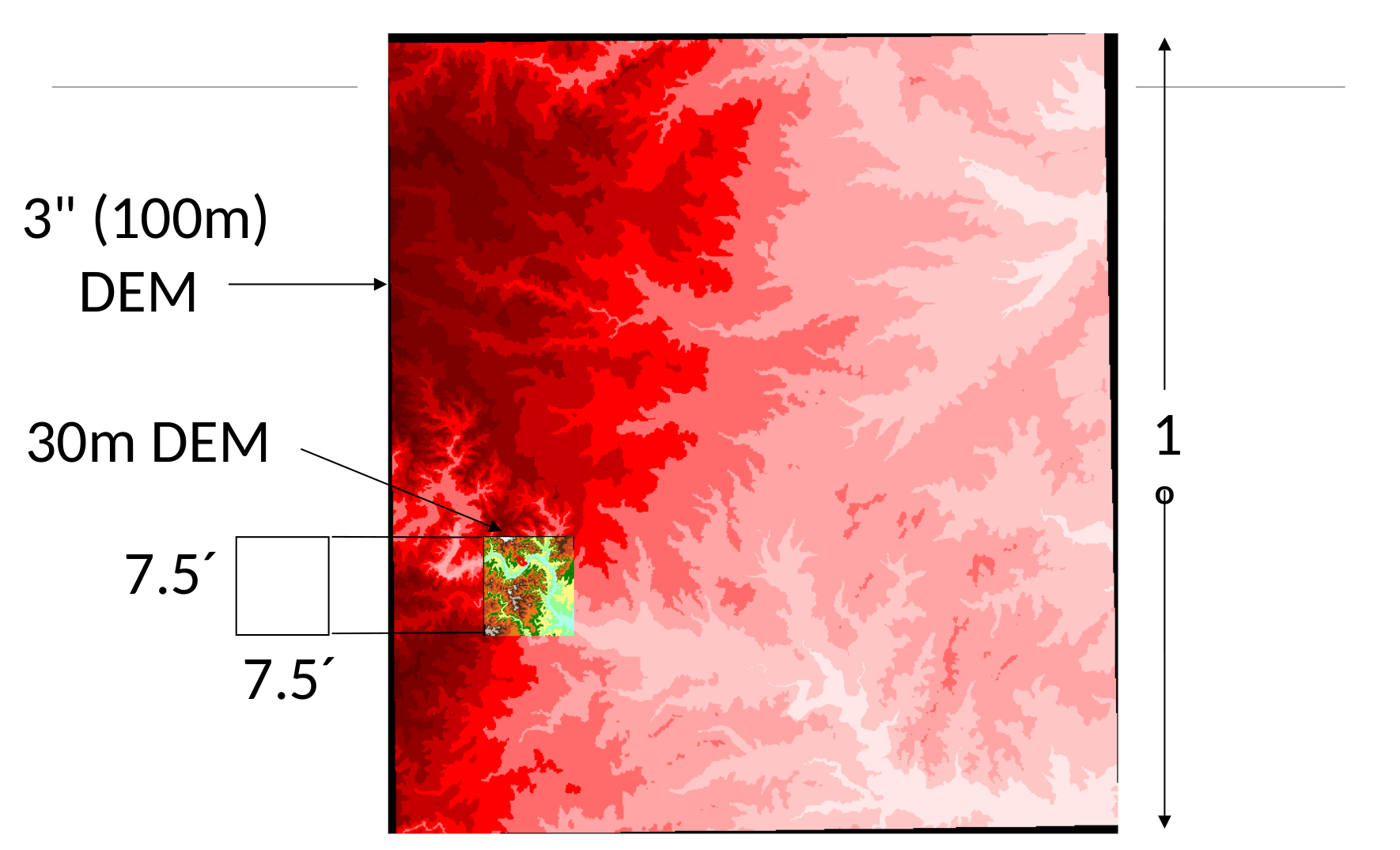

Coverage of 30 m and 3″ DEMs

center

CE 414 · Week 5 — Elevation Data and LiDAR

DEM data sources

Cell size Product Coverage How it was made
3″ ≈ 90 m SRTM 3 arc-second Global, 60°N to 56°S Shuttle radar, February 2000
1″ ≈ 30 m SRTM 1 arc-second, ASTER GDEM, AW3D30 Global Radar (SRTM) or stereo satellite images
1″ ≈ 30 m USGS 3DEP 1 arc-second Lower 48 and Alaska Best available U.S. source data
1/3″ ≈ 10 m USGS 3DEP 1/3 arc-second Lower 48, Alaska, Hawaii, territories Best available source, mostly lidar now
1 m USGS 3DEP 1 meter Growing patchwork of the U.S. Lidar only
  • An arc-second is 1/3600 of a degree: about 30 m on the ground north to south
  • Global data tops out near 30 m. For anything finer you need lidar, and lidar exists only where someone flew it
CE 414 · Week 5 — Elevation Data and LiDAR

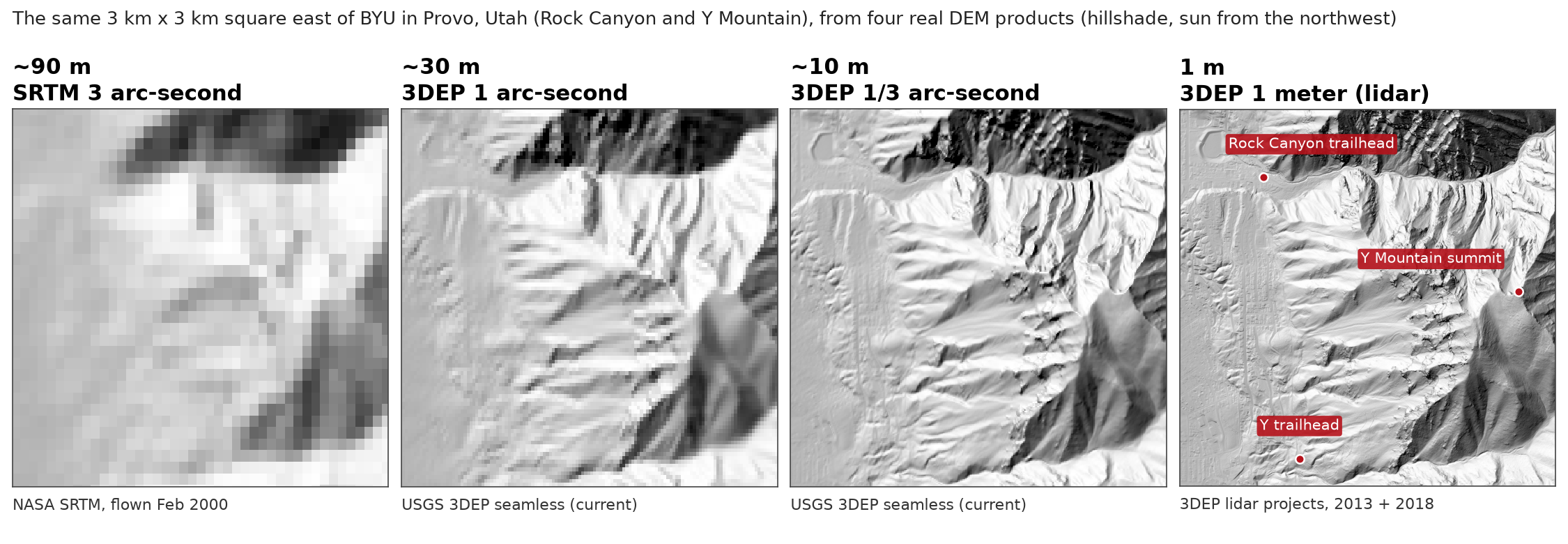

The same place, four cell sizes

center

CE 414 · Week 5 — Elevation Data and LiDAR

Where to get global DEMs

  • A roundup of free global elevation data:
    gisgeography.com/free-global-dem-data-sources
  • Read the entry for each dataset before you download: coverage, cell size, vertical datum, and license
  • The next three slides are the global sources, oldest first. Then The National Map, for U.S. data
CE 414 · Week 5 — Elevation Data and LiDAR

NASA SRTM: 26 years old

  • Space Shuttle Endeavour, February 2000: the data are 26 years old
  • Radar from two antennas, one on a 200-foot mast, in a single pass
  • Nearly 80% of Earth's land, 60°N to 56°S, at 1 arc-second (about 30 m)
  • Still useful: the first near-global DEM, and the base of NASADEM and HydroSHEDS (global rivers and watersheds), so you will meet it inside other products
  • earthdata.nasa.gov/data/instruments/srtm
CE 414 · Week 5 — Elevation Data and LiDAR

NASA ASTER GDEM

  • From the Terra satellite (launched 1999). First released 2009; version 3 in 2019
  • 1 arc-second, about 30 m, from stereo optical images, not radar
  • Its edge over SRTM: covers 83°N to 83°S, about 99% of Earth's land, including the high latitudes SRTM missed. An independent measurement that fills SRTM's voids
  • Noisier over snow, sand and water
  • earthdata.nasa.gov/data/catalog/lpcloud-astgtm-003
CE 414 · Week 5 — Elevation Data and LiDAR

JAXA: Japan's space agency

  • ALOS World 3D, 30 m (AW3D30): a free global 1 arc-second DEM from stereo images taken by the ALOS satellite's PRISM camera
  • Current version 4.1 (April 2024)
  • A third independent global DEM, worth having when SRTM and ASTER disagree
  • Free, but you register for an account before you can download
  • eorc.jaxa.jp/ALOS/en/dataset/aw3d30
CE 414 · Week 5 — Elevation Data and LiDAR

USGS: The National Map

  • The source for U.S. elevation data, from the 3D Elevation Program (3DEP)
  • apps.nationalmap.gov/downloader
  • Free, no account needed
  • Offers 1 m, 1/3 arc-second (about 10 m) and 1 arc-second (about 30 m). Which exist depends on where you look
  • This is where the DEM for Lab 4 comes from
CE 414 · Week 5 — Elevation Data and LiDAR

Downloading a DEM from The National Map

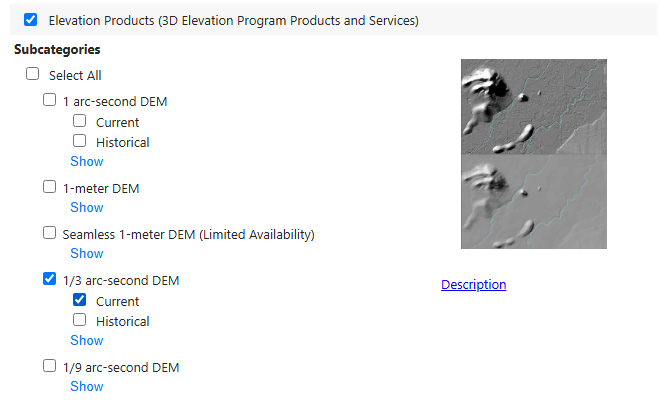

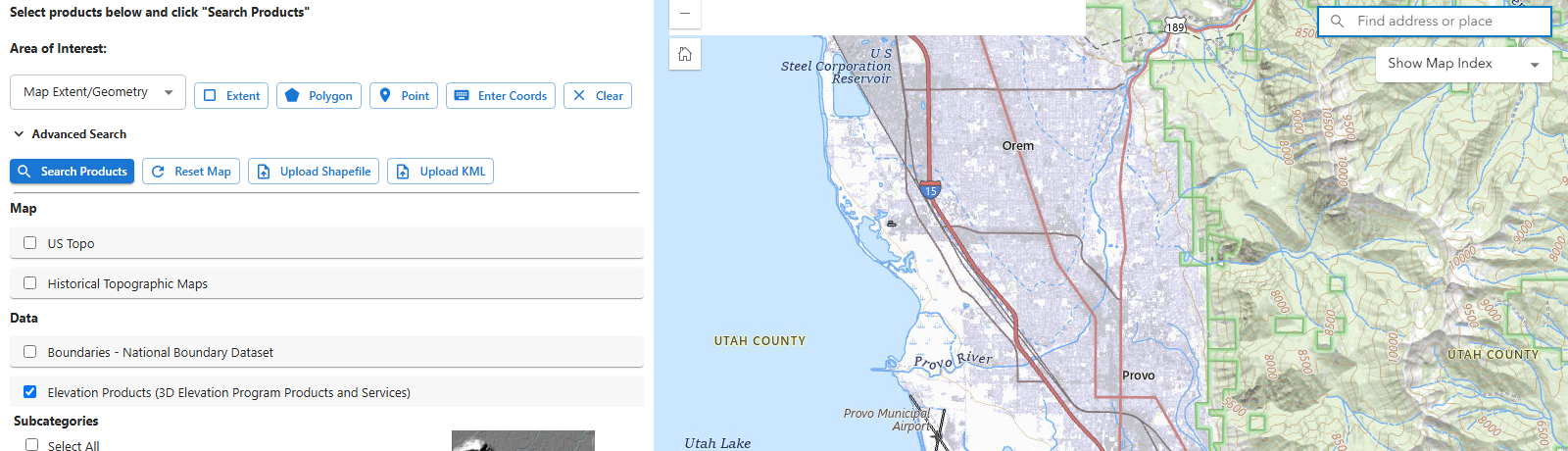

1. Choose the product. Check Elevation Products (3DEP), pick a resolution, check Current


2. Set the area. Zoom to your site, or draw an Extent or Polygon. Then Search Products

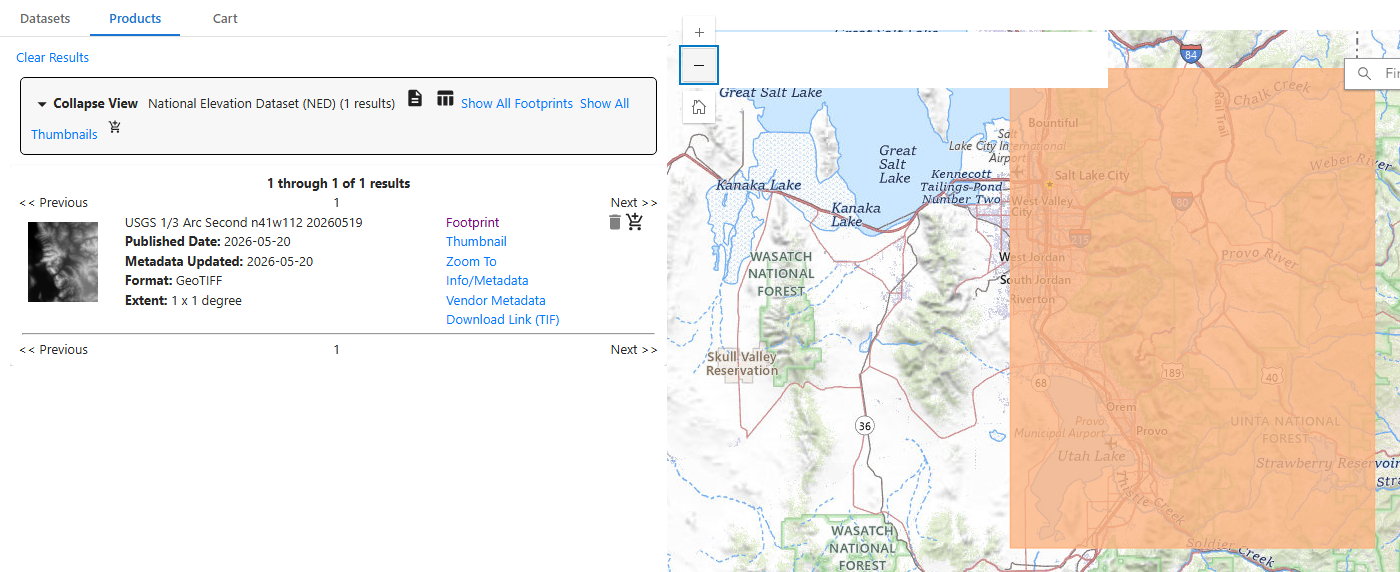

3. Download. The Products tab lists each tile, with its footprint on the map. Use Download Link (TIF)

Leave Current checked. Without it you get every older edition of the same tile

CE 414 · Week 5 — Elevation Data and LiDAR

Other worlds have DEMs too

center

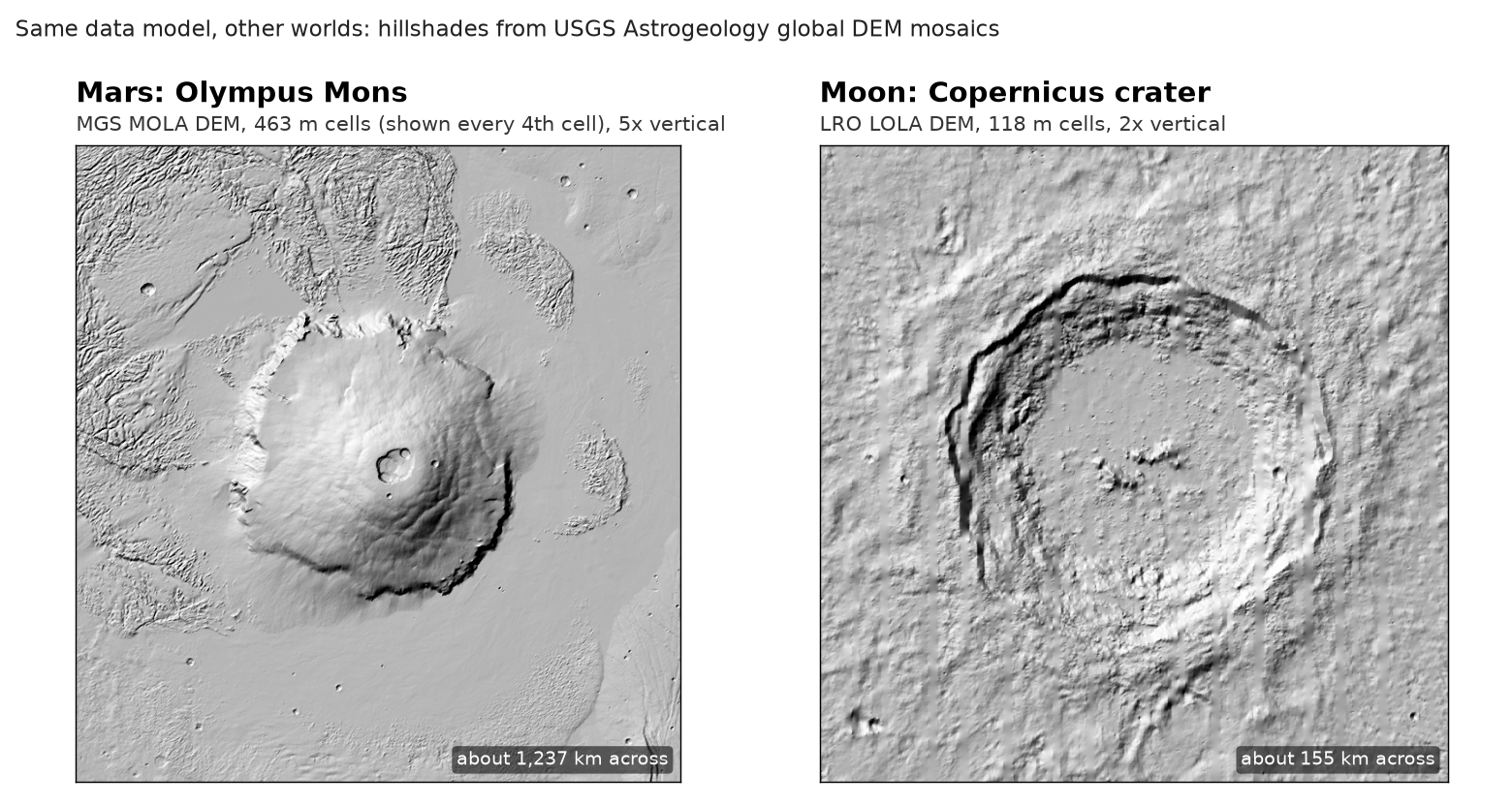

Free from USGS Astrogeology: Mars MOLA, 463 m · Mars MOLA–HRSC blend, 200 m · Moon LOLA, 118 m · Mercury MESSENGER, 665 m

CE 414 · Week 5 — Elevation Data and LiDAR

Final Thoughts

Quiz: Surfaces and Returns. Five questions on the hour: where a surface comes from, how LiDAR measures one, and which surface you need. Scan the code, or open the link under it.

  • Not graded, nothing recorded: a quick check that today's material made sense
  • The last two come back in Lab 4, due Saturday

Before next class

  • Lab 4 — Cell Phone Tower Placement is due Saturday 11:59 pm: assignments/lab-04. It needs a DEM for Utah County — download it with what you learned today
  • Thursday: what you compute from a DEM. Slope, aspect, curvature, hillshade and viewsheds
  • Reading: Chapter 11 of GIS Fundamentals (Terrain Analysis)
  • Quiz 5, open book, on Learning Suite, due Saturday 11:59 pm
  • Office hours: calendly.com/dan-ames/office-hours

center

byu-hydroinformatics.github.io/ce414-gis-applications/quizzes/elevation-lidar/

CE 414 · Week 5 — Elevation Data and LiDAR
