Lake Bathymetry

Part A — The Great Salt Lake, From the Bottom Up

CE 414 Engineering Applications of GIS
Civil & Construction Engineering
Brigham Young University
Dr. Dan Ames

CE 414 · Week 7 — Lake BathymetryLast Updated: 2026-10-13© 2026 Daniel P. Ames · CC BY 4.0

Today's Goals

By the end of class you should be able to:

  • Say why a terminal lake's level is its water balance
  • Name four ways the bottom of a lake is measured, and what each one gives you
  • Explain why a lake level needs a vertical datum, and what mixing two does
  • Read an elevation–area–volume table, and say why one foot of level is not one foot of lake
  • Say what Lab 6 will ask you to build on Thursday
CE 414 · Week 7 — Lake Bathymetry

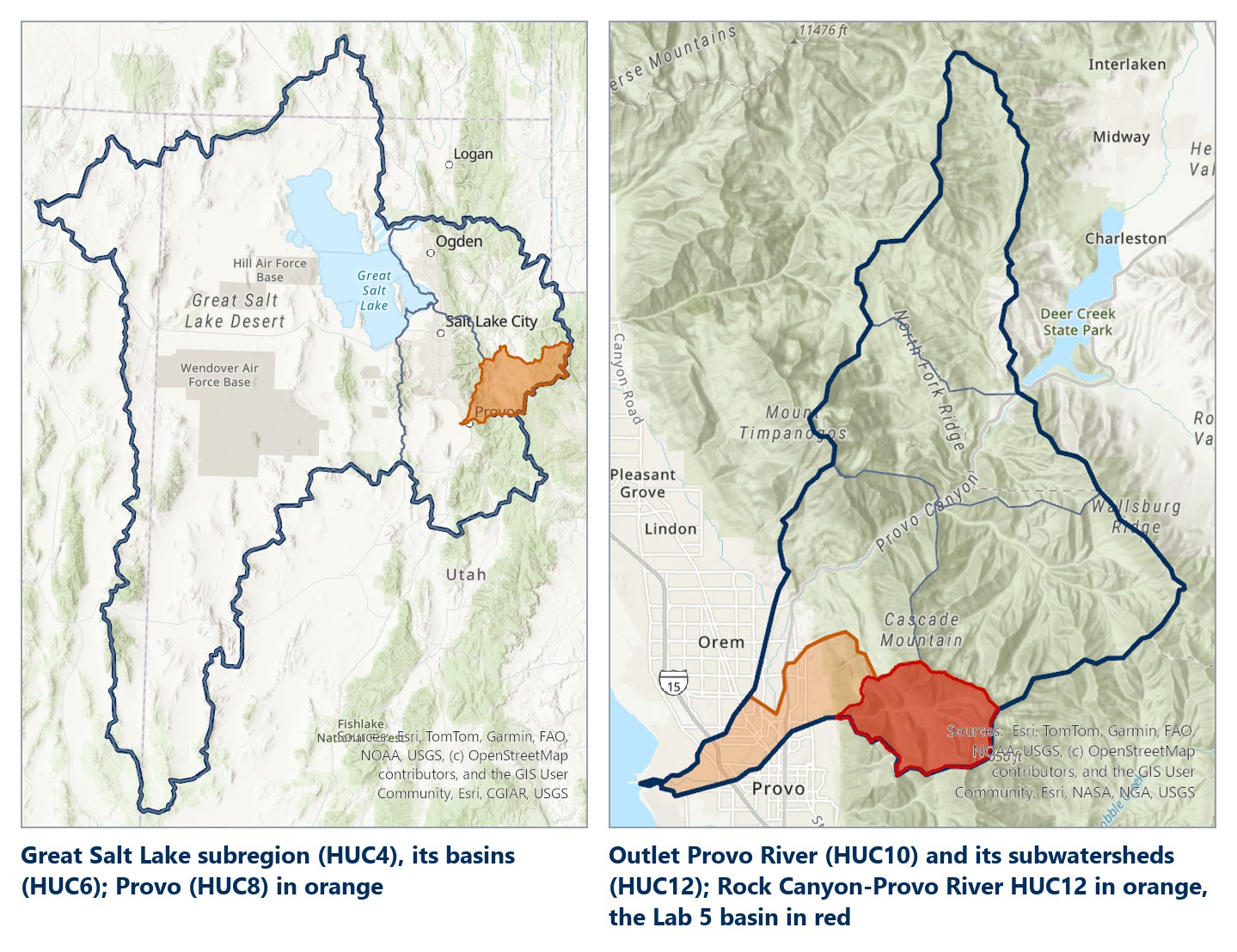

Where Rock Canyon's Water Ends Up

center

  • Rock Canyon › Provo River › Utah Lake › Jordan River › Great Salt Lake — and the lake has no outlet
CE 414 · Week 7 — Lake Bathymetry

A Terminal Lake: Its Level Is Its Water Balance

center

  • Inflow up, level up; evaporation and diversions up, level down — the gage records the balance
CE 414 · Week 7 — Lake Bathymetry

What Bathymetry Is

center

  • Bathymetry is the elevation of the bottom of a water body — a DEM of the part you cannot see
CE 414 · Week 7 — Lake Bathymetry

How the Great Salt Lake's Bottom Was Mapped

  • USGS sonar surveys of the south arm (2002–04) and north arm (2006), drawn as depth contours
  • Contours turned into a surface with Topo to Raster — in ArcGIS Pro
  • Merged with 2016 lidar of the dry shore into one 0.5 m topobathymetric DEM (Root, 2023)
CE 414 · Week 7 — Lake Bathymetry

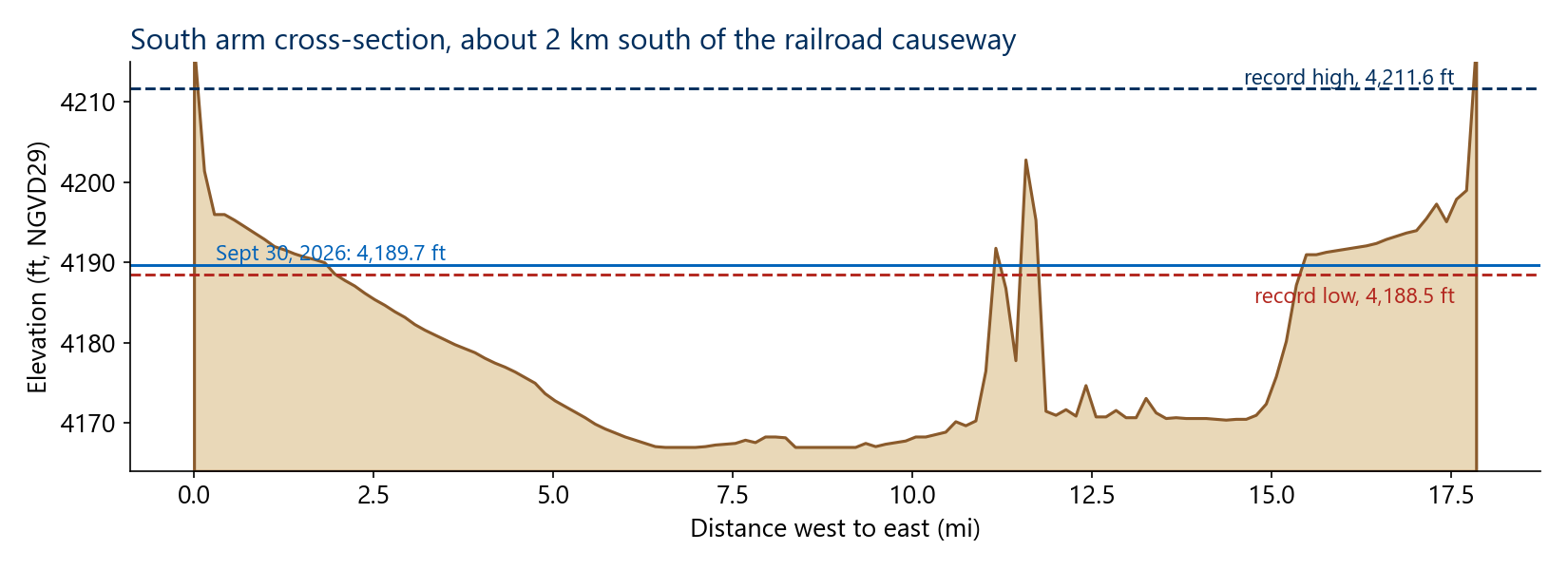

A Cross-Section of the South Arm

center

  • Most of the arm is a flat floor a little over 20 ft below today's surface
CE 414 · Week 7 — Lake Bathymetry

Two Vertical Datums

center

  • A lake level is a height above a datum — say which one, or the number means nothing
CE 414 · Week 7 — Lake Bathymetry

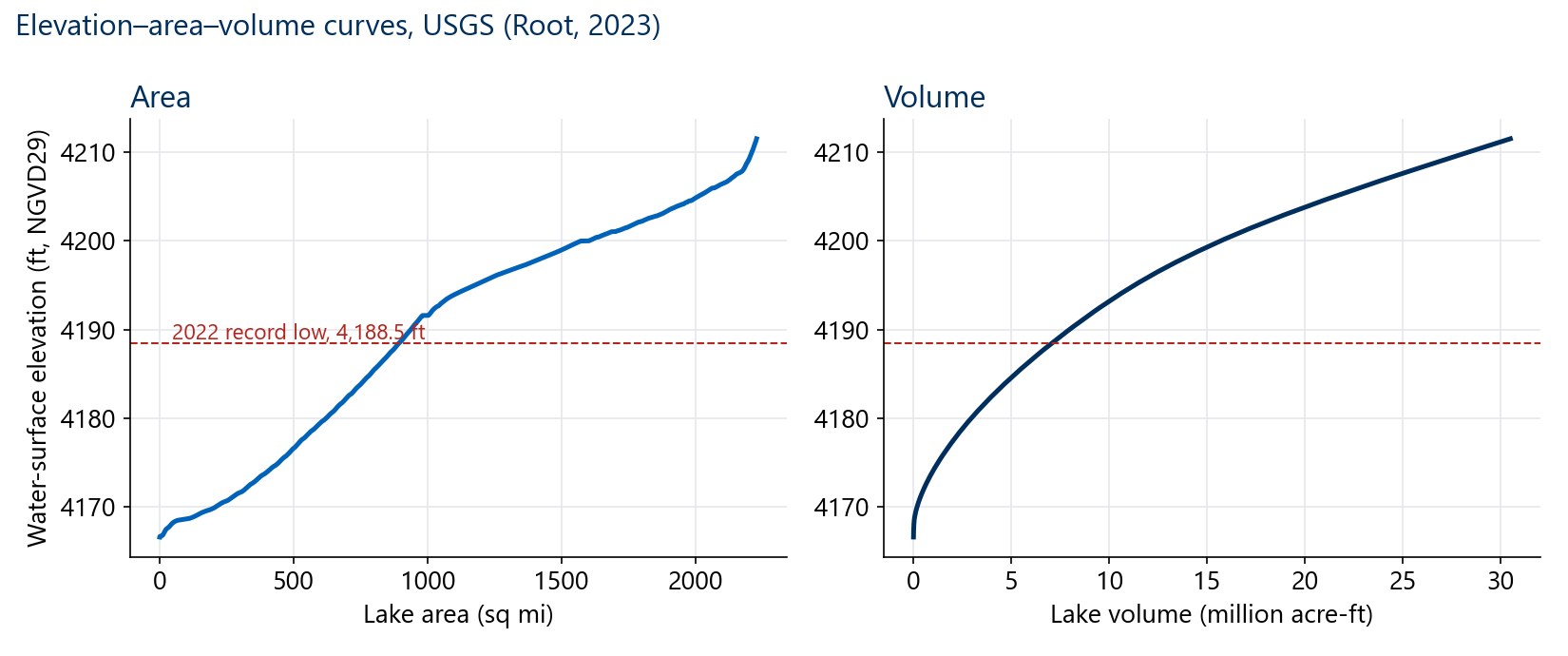

Elevation–Area–Volume Curves

center

CE 414 · Week 7 — Lake Bathymetry

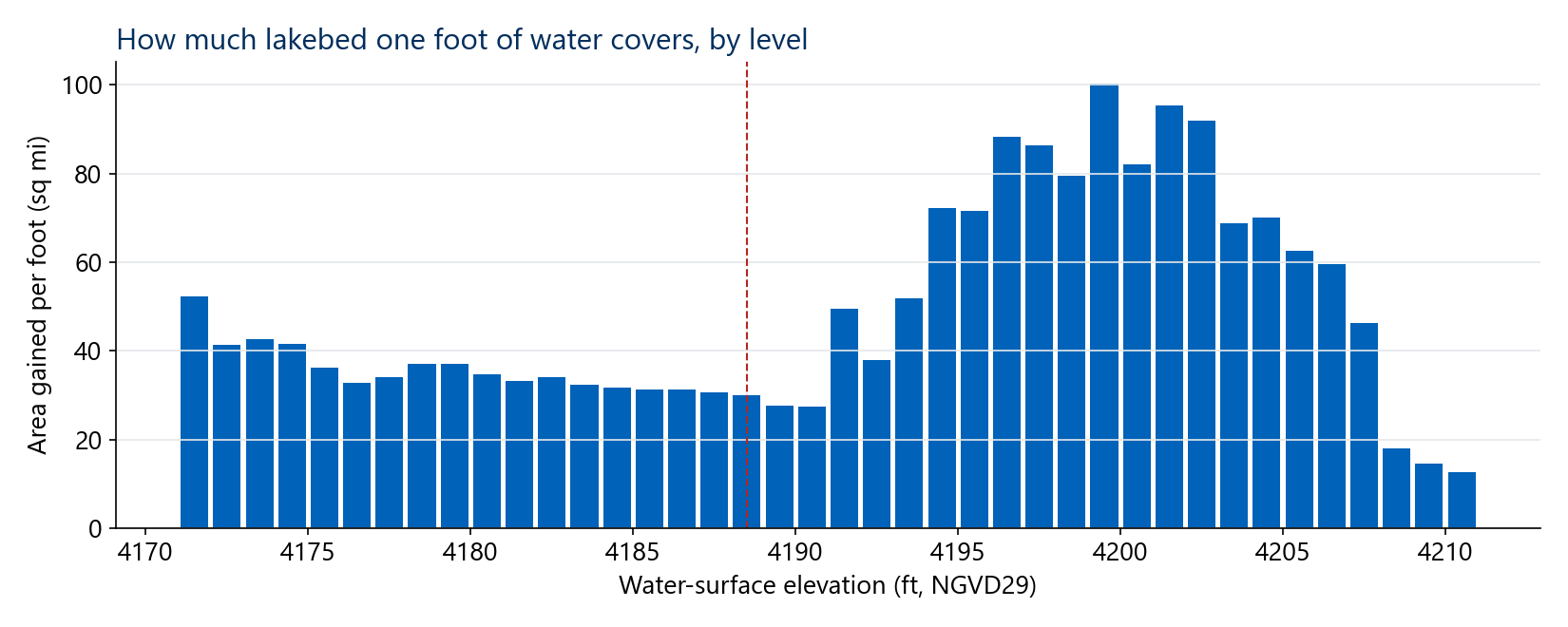

One Foot Is Not One Foot

center

  • Near 4,190 ft a foot of level covers about 30 sq mi; near 4,200 ft, up to 100 sq mi
CE 414 · Week 7 — Lake Bathymetry

Shorelines at Five Levels

  • 4,210 ft — near the 1872 and 1986 highs
  • 4,200 ft — near the long-term middle of the record
  • 4,190 ft — about where the lake is today
  • Lighter blue = higher level. Farmington and Bear River bays dry out first; the causeway splits the arms
CE 414 · Week 7 — Lake Bathymetry

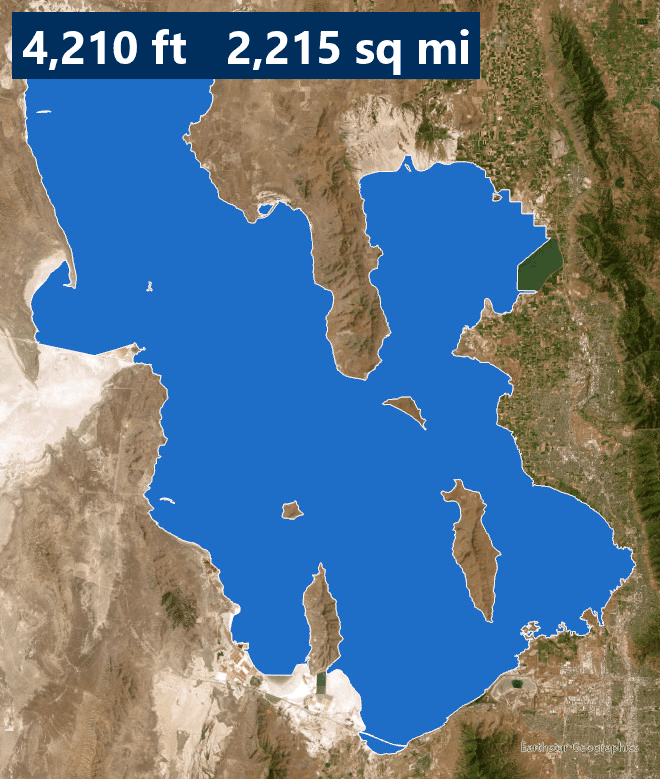

The Lake Falling — 4,210 to 4,190 ft

center

CE 414 · Week 7 — Lake Bathymetry

In Class Activity — Read the USGS Table

  • Open the USGS elevation–area–volume table for the whole lake — download the CSV and open it in Excel
  • Plot area and volume against elevation (ft NGVD29)
  • How much lakebed is exposed between 4,200 ft and the 2022 low, 4,188.5 ft?
  • At today's level, how many feet of drop expose another 100 sq mi?
CE 414 · Week 7 — Lake Bathymetry

The Tool You Are About to Build

  • Pick a water level, get the shoreline and the area: that is the whole idea
  • Try it now: the Great Salt Lake depth explorer and the Lake Powell depth explorer
  • Drag the slider and watch the bays empty, then the arms, then the channel
  • Lab 6 builds the same thing in ModelBuilder: a loop over levels, a flooded surface, one shoreline polygon per level
CE 414 · Week 7 — Lake Bathymetry

The Problem With Running a Model Once

  • One water level → one Con → one shoreline
  • Thirty-five levels → thirty-five runs, thirty-five names to type, thirty-five chances to mistype one
  • What you want: say the list of levels once, and let the model do the rest
CE 414 · Week 7 — Lake Bathymetry

An Iterator Runs the Whole Model Once per Value

center

CE 414 · Week 7 — Lake Bathymetry

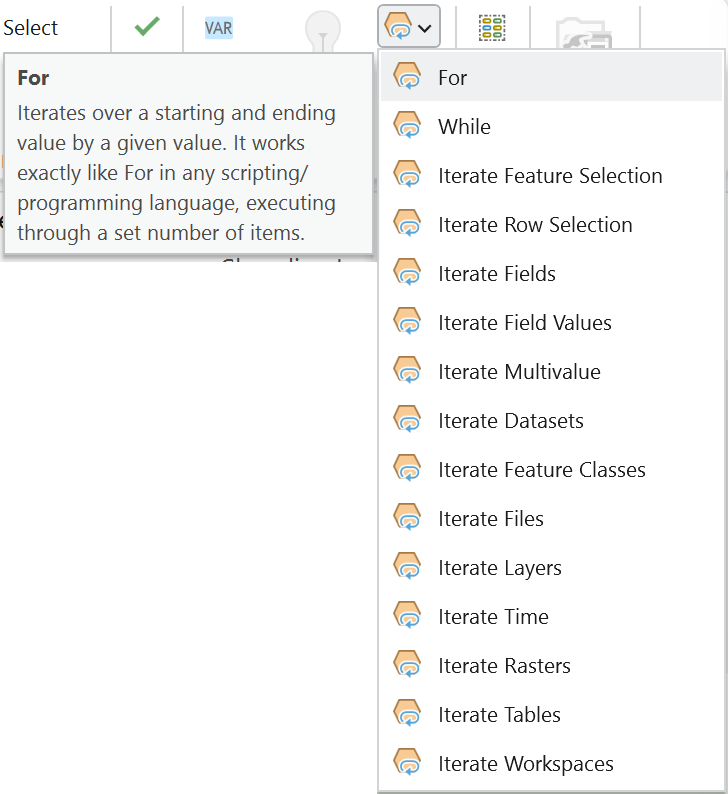

Where the Iterators Live

center

  • ModelBuilder tab ▸ Insert ▸ Iterators — For counts from a start to an end by a step
CE 414 · Week 7 — Lake Bathymetry

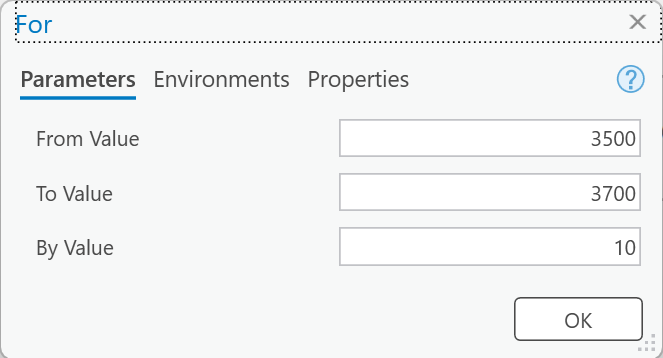

The For Iterator

center

  • From Value 3,500 · To Value 3,700 · By Value 10 → 21 runs (To is included); rename its output from Value to Elevation
CE 414 · Week 7 — Lake Bathymetry

%Elevation% — the Value Goes Inside the Expression

  • Con on powell_ft, expression Value <= %Elevation% (typed with SQL Editor on), true value 1, false left empty — NoData above the water
  • Output name wet_%Elevation% — a different name every run, or each run overwrites the last
  • The percent signs are filled in from the oval labeled Elevation; the oval's own label is just display
CE 414 · Week 7 — Lake Bathymetry

Collect Values, Then Merge

center

  • Collect Values (ModelBuilder ▸ Utilities) appends each pass's output to a list; Merge reads the list and stacks the levels into one feature class
CE 414 · Week 7 — Lake Bathymetry

Start Building Today

  • Today: Lab 6 Steps 0 to 6 — the data, the datum conversion, the loop, a three-level test
  • Thursday in class: we run it together at different levels, then Run 1 (35 levels) and Run 2 (your five levels from your BYU ID)
  • Due Saturday: the report and two maps
  • Stuck on the loop? Every dialog on the lab page is a capture of the finished model

Lab 6 — Lake Depth Explorer

CE 414 · Week 7 — Lake Bathymetry

Thursday — Lab 6, Lake Depth Explorer

  • One ModelBuilder model that floods a lake surface at every level in a list
  • The lake is Lake Powell — one pool behind one dam, at a record low
  • Today's ideas come straight back: a datum to convert, an area table to check against
  • New for Lab 6: your own five levels from your BYU ID, maps as ArcGIS Pro PDF exports, a History capture
CE 414 · Week 7 — Lake Bathymetry

Final Thoughts

Quiz: Lake Bathymetry. Five questions on a terminal lake, measuring the bottom, datums, and what a level does to area. Scan the code, or open the link under it.

  • Not graded, nothing recorded: a quick check that today's material made sense
  • Note the datum question: missing it costs time in Lab 6

Before next class

center

byu-hydroinformatics.github.io/ce414-gis-applications/quizzes/bathymetry/

CE 414 · Week 7 — Lake Bathymetry

Week 7 is two decks. This one is Tuesday: a terminal lake, how the bottom of a lake is measured and mapped, the two vertical datums, and how a lake's area and volume follow from its level. Thursday's deck (lake-depth-explorer) is ModelBuilder looping and Lab 6. Every chart in this deck is published data: the USGS gage record, the USGS elevation-area-volume table (Root, 2023), and shorelines baked from the USGS lake-bottom DEM. The title map is five of those shorelines, 4,190 to 4,210 ft.

stamp:begin

stamp:end

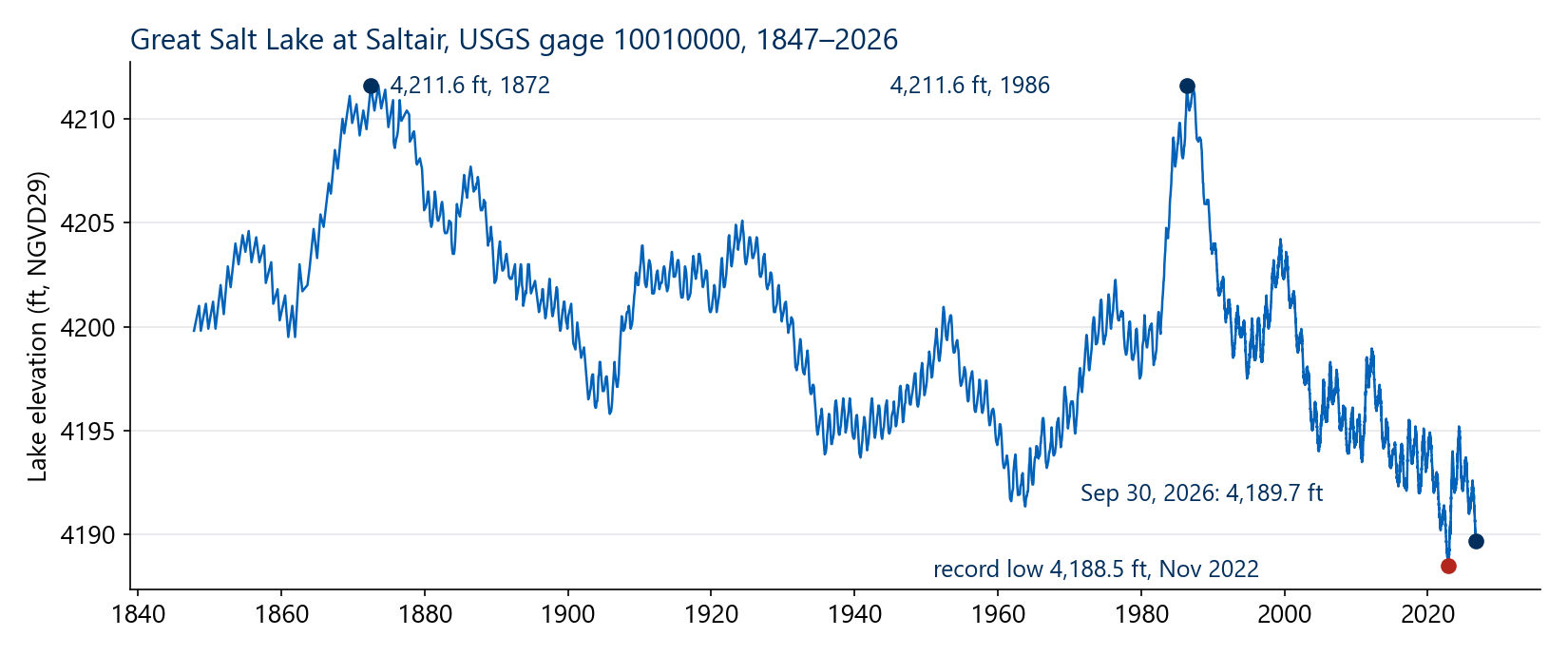

The chart at right is the whole USGS record for the lake; we come back to it on slide 5.

The same map as Thursday of Week 6: the Great Salt Lake subregion (HUC4 1602, left) and the Rock Canyon end of it (right), from the USGS Watershed Boundary Dataset. Water leaves the Great Salt Lake only by evaporation. That is what makes its level such an honest gauge of the whole basin's water balance.

Pick up where Thursday of Week 6 ended: Rock Canyon's water ends up in the Great Salt Lake.

USGS gage 10010000, Great Salt Lake at Saltair Boat Harbor, daily values 1847 to September 30, 2026, ft NGVD29, read from USGS NWIS on October 1, 2026 (the earliest values are estimates). Highest: 4,211.6 ft, both on June 27, 1872 and June 3, 1986. Lowest: 4,188.5 ft, November 7, 2022. Last value: 4,189.7 ft, September 30, 2026. Ask what a 22-foot swing does to a lake whose deepest point is only a few tens of feet below the surface — Part 3 answers it.

Four methods, oldest to newest. A lead line gives one depth per drop. Single-beam sonar times an echo straight down and gives a line of points along the boat's track. Multibeam sonar sends a fan and gets a swath, close to full coverage. Airborne bathymetric lidar uses a green laser that passes through water — but only clear, shallow water; the Great Salt Lake's brine and its depth limit what it can see. Whatever the method, the points are interpolated to a grid: the same idea as Week 8.

A DEM of land comes from lidar or photogrammetry. Under water, light and lasers mostly fail, so bathymetry is its own craft.

From the metadata of the USGS data release: Root, J.C., 2023, Half-meter topobathymetric elevation model and elevation-area-volume tables for Great Salt Lake, Utah, 2002-2016, doi:10.5066/P9DGG75W. The bathymetric contours are from Baskin's USGS surveys; the shore is UGRC's 2016 lidar. The full DEM is about 34 GB; Lab 6 uses a resampled extract. The point for students: a real federal product was built in the software they are using.

The image is the release's own thumbnail of the 0.5 m DEM (Great_Salt_Lake_TBDEM_Thumbnail.jpg, ScienceBase item 646d0ed2d34ee02593fb50a7, public domain), downsized: purple is deepest; the railroad causeway is the straight line across the middle; Antelope and Stansbury islands stand up in the south arm. Checked against the release metadata on October 2, 2026: south arm surveyed 2002-2004 and north arm 2006 (Baskin 2005, 2006), contours interpolated with Topo to Raster in ArcGIS Pro 2.9.5, mosaicked (Mosaic to New Raster) with lidar flown September 3 to November 30, 2016; the elevation-area-volume tables were computed with the Storage Capacity tool.

A 17.9-mile west-to-east profile about 2 km south of the railroad causeway, from the Tarboton and Merck Great Salt Lake bathymetry on HydroShare (a different, older DEM than the USGS 2023 one, built from the same Baskin surveys), via the hydromap-app project. The floor sits near 4,167–4,170 ft, so at 4,189.7 ft the deepest water along this line is about 20 ft. The bump near mile 11.5 is submerged structure from the original 1904 railroad trestle. Note how little the record low and today differ in depth, and how much they differ in where the shoreline is — that is Part 3.

The USGS gage, the news and this course report NGVD29 (the 1929 datum). The USGS lake-bottom DEM is in NAVD88 (the 1988 datum). At the Great Salt Lake, a height in NAVD88 is 3.48 ft larger than the same height in NGVD29: the USGS elevation-area-volume table carries both columns, and the difference is 3.48 ft on every row. Lab 6 has the same problem at Lake Powell: its surface ships in meters NAVD88 and Reclamation's lake record is in feet NGVD29, 2.91 ft apart there (USGS SIR 2022-5017), and Step 1 converts it — the 3.48 ft here and 2.91 ft there are a good reminder that the offset between the datums changes from place to place. The 3.48 ft was re-checked on every row of the hosted CSV, October 2, 2026.

The USGS elevation-area-volume table for the whole lake, 0.01 ft steps, converted here to ft NGVD29. At the 2022 record low, 4,188.5 ft: about 894 sq mi and 7.08 million acre-ft. At 4,200 ft: about 1,602 sq mi and 15.7 million acre-ft. At 4,211.5 ft, the top of the table: about 2,229 sq mi and 30.5 million acre-ft. Volume curves upward because each foot of water spreads over a bigger area the higher it gets.

A bathymetry surface turns a water level into a shoreline, an area and a volume.

Computed from the USGS table: the area gained between consecutive whole feet. Between 4,188 and 4,190 ft each foot adds about 28–30 sq mi; between 4,195 and 4,203 ft each foot adds 70–100 sq mi, the most at 4,199–4,200 ft (about 100 sq mi). The lake is a very flat bowl with very flat shoulders: in that band a small change in level exposes or floods a lot of lakebed. That is why the exposed-lakebed (and dust) problem grows so fast when the lake drops through the 4,190s and 4,200s.

Shorelines at 4,190, 4,195, 4,200, 4,205 and 4,210 ft NGVD29, drawn in ArcGIS Pro on imagery. They were computed from the USGS 2023 DEM by the hydromap-app project (github.com/danames/hydromap-app) and agree with the USGS area table to within a fraction of a percent: 938 sq mi at 4,190 ft against the table's 937.6. Lab 6 makes these yourself.

One frame every 2 ft, the area in the corner (from the shoreline polygons). Watch the eastern bays and the area south of Antelope Island empty first. This is exactly the sequence of outputs the Lab 6 model produces in one run.

The table is in the USGS data release (doi:10.5066/P9DGG75W), file for the whole lake; it has both NAVD88 and NGVD29 columns. Answers from the table: 1,602.4 − 894.2 = 708.2 sq mi exposed between 4,200 and 4,188.5 ft; from 4,189.7 ft (929.7 sq mi) a further 100 sq mi is exposed by about 4,186.4 ft (829.5 sq mi), a drop of about 3.3 ft — have students find it themselves (checked against the CSV, October 1, 2026).

The CSV is the release's Great_Salt_Lake_2023_ElevAreaVolume_total.csv, hosted unchanged as docs/data/week07-gsl-elevation-area-volume.csv (public domain, 481 KB, 4,501 rows at 0.01 ft from 4,170 to 4,215 ft NAVD88; NGVD29 = NAVD88 - 3.48 ft). Answers re-checked against it October 2, 2026: 1,602.35 sq mi at 4,200 ft and 894.20 at 4,188.5 ft NGVD29. TODO(instructor): create the matching Learning Suite activity (replaces the old Week 7 "Practicing Hydrology Tools" item).

Both explorers are the hydromap.com Data Watch pages in Depth explorer mode (the Basin map card). Behind each is exactly the Lab 6 computation: a topobathymetric surface, a water level, every cell at or below it, the connected pool, its outline and area. The web app precomputed the shorelines once per foot; Lab 6 does it with a For iterator in ModelBuilder on Lake Powell's surface. The screenshot is the Great Salt Lake explorer at 4,190 ft, October 13, 2026.

The map is the answer we are after: Lake Powell shorelines in one layer. Ask how long it took them to run the Lab 5 model four times for Step 14, and what went wrong.

Walk the loop with Lab 6's real values: the For iterator produces one value per run (3,370, 3,380, ... 3,710 ft); every tool after it runs once with that value; the outputs are collected and merged at the end. The iterator is the only new idea in Lab 6 — Con, Raster to Polygon and Select Layer By Location are tools students have met.

Captured in ArcGIS Pro 3.7.1 on October 2, 2026 (C:\Ames\Lab06GUI\caps\iterators-menu.png, the area left of the menu blanked). Fifteen iterators, For to Iterate Workspaces. The menu is grayed out unless a model view is active.

Point out that only one iterator is allowed per model, and that iterators exist only in ModelBuilder — they are why ModelBuilder is more than a diagram of tools. For counts; the other iterators read a list that already exists (rows, fields, rasters). Esri's Iterators for looping page (checked October 2, 2026): "Only one iterator can be used per model", and "If an iterator is added to a model, all tools in the model iterate for each value in the iterator."

Captured from the Lab 6 GUI build, October 1, 2026. The 21-run count was confirmed by running the model: 21 shorelines. The lab's Run 1 is 3,370 to 3,710 by 10, 35 levels; the build and its check values use the 21-level default.

Show the parameter route too: right-click For > Create Variable > From Parameter > From Value (and To, By), then right-click each new oval > Parameter.

The same inline-variable idea as Lab 4 and Lab 5 (%Threshold%), now fed by the iterator. The Lab 5 lesson about Con with no third argument carries over: NoData outside the water, not 0, or Raster to Polygon draws the land as lake too. Labels versus values: an output oval auto-labels itself with the file name part of its path, percent signs included; rename the oval and the path underneath still has %Elevation%; rename the Elevation oval and every %Elevation% stops resolving. No connector is drawn for a %...% reference, so the Elevation oval looks unconnected; that is normal.

Captured from the Lab 6 GUI build, October 1, 2026. Verified there: %Elevation% substitutes in both the expression and the output name (wet_3500, wet_3510, ...), and the 3,550 ft raster has 303,538 wet cells on the 30 m surface. Warn students not to switch the SQL Editor off after typing: switching it off and on cleared the expression.

The Lab 6 model as built in ArcGIS Pro 3.7.1, exported with Export To Graphic and laid out in four rows (same file as the lab page's Figure C). Output Values is a list of paths (pool_3370; pool_3380; ...), not data; Output Table is a receipt nobody reads; Count and Output Layer Names dangle off Select Layer By Location and should. Merge's Input Datasets list does not offer Collect Values' output: drag a connector from Output Values to Merge and choose Input Datasets. Tell students the honest version: with an iterator in a model, every tool runs once per value, Merge included, so Merge rewrites the merged output on every pass with one more shoreline; the last pass leaves them all.

Split added October 13, 2026: Tuesday carries the concepts and the model; Thursday is for running it. Students who finish Steps 0 to 6 before Thursday can do Run 1 and Run 2 in class and leave with everything but the maps and the write-up.

The diagram is a sketch of the Lab 6 model; Thursday builds it. Why Powell for the lab and the Great Salt Lake for lecture: the causeway splits the Great Salt Lake below about 4,200 ft, so "keep the water connected to one seed point" keeps only the south arm — a good report question, a bad first loop.

Four minutes, in pairs, then a show of hands on the one-foot question: most people expect each foot to matter equally. If the room has no signal, put the URL on the board.
