Review session. The deck was inherited from the introductory Geomatics course, so the title slide originally read "CCE 114 Geomatics"; it now names CE 414. Everything after this is a review of the concepts the labs depend on.

stamp:begin

stamp:end

This is a review, not new material. Set the frame: every choice on this list shows up as a dialog box in the lab.

Degrees are angles, not lengths. Subtracting latitudes gives you a number in degrees, and a degree of longitude is not the same ground distance as a degree of latitude, and neither is constant. This is the whole reason we project.

Same pair of points expressed in UTM. Now the coordinates are linear, in meters, so the Pythagorean distance is meaningful. The source slide labeled both eastings "W"; UTM coordinates are eastings and northings, so that was corrected to "E".

VERIFY: these easting/northing values are consistent with UTM Zone 12N (NAD 83), but the source slide never named the zone or the datum. Confirm before using the numbers as a worked example.

Spend a few minutes in the transition tool. The point is that there are hundreds of projections and none of them is "the right one" - each one gives something up.

Do this first, before they look at the globes. Take answers from the flat map: most students will trace the straight line and say Iowa, Maine, Nova Scotia, then London.

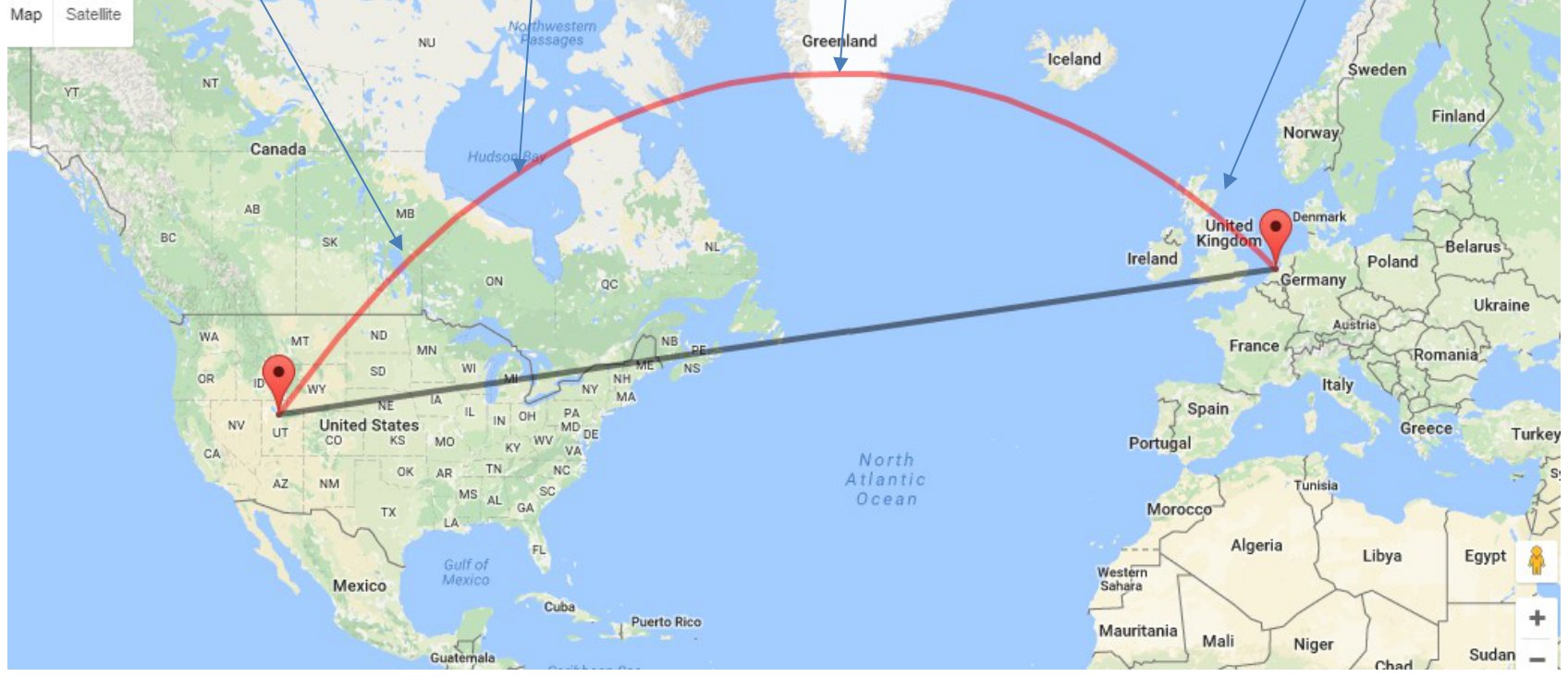

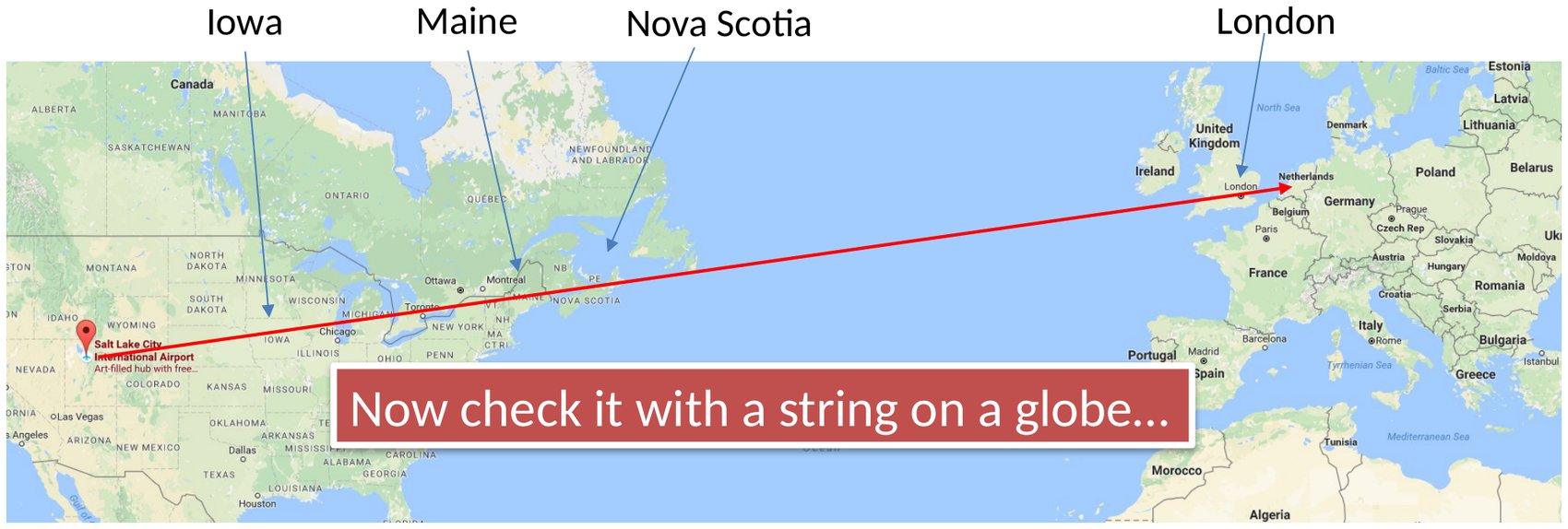

Now look at the globes and use the string to find the shortest path. It turns out to run over Hudson Bay, Canada, and Greenland, not across the Atlantic the way the flat map suggests. Ask them to explain this. The shortest path on a sphere is a great circle, and the flat map has bent it.

Answer: A. Geodesy is the measurement of the Earth's shape, orientation, and gravity field. B is geology, C is roughly GNSS, D is geography.

TODO(graphic): this slide has no visual. A simple figure contrasting geodesy, geology, and geography would help; it must not be a fabricated screenshot.

The blind men and the elephant: each of them is reporting honestly about the piece they can reach. At human scale, flat is a perfectly good local model, and that is exactly why it is such a persistent error at continental scale.

Orlando Ferguson's "Square and Stationary Earth," Hot Springs, South Dakota, 1893. Fun fact: some have argued the Earth is flat in order to validate scriptural statements, for example the "four corners of the earth."

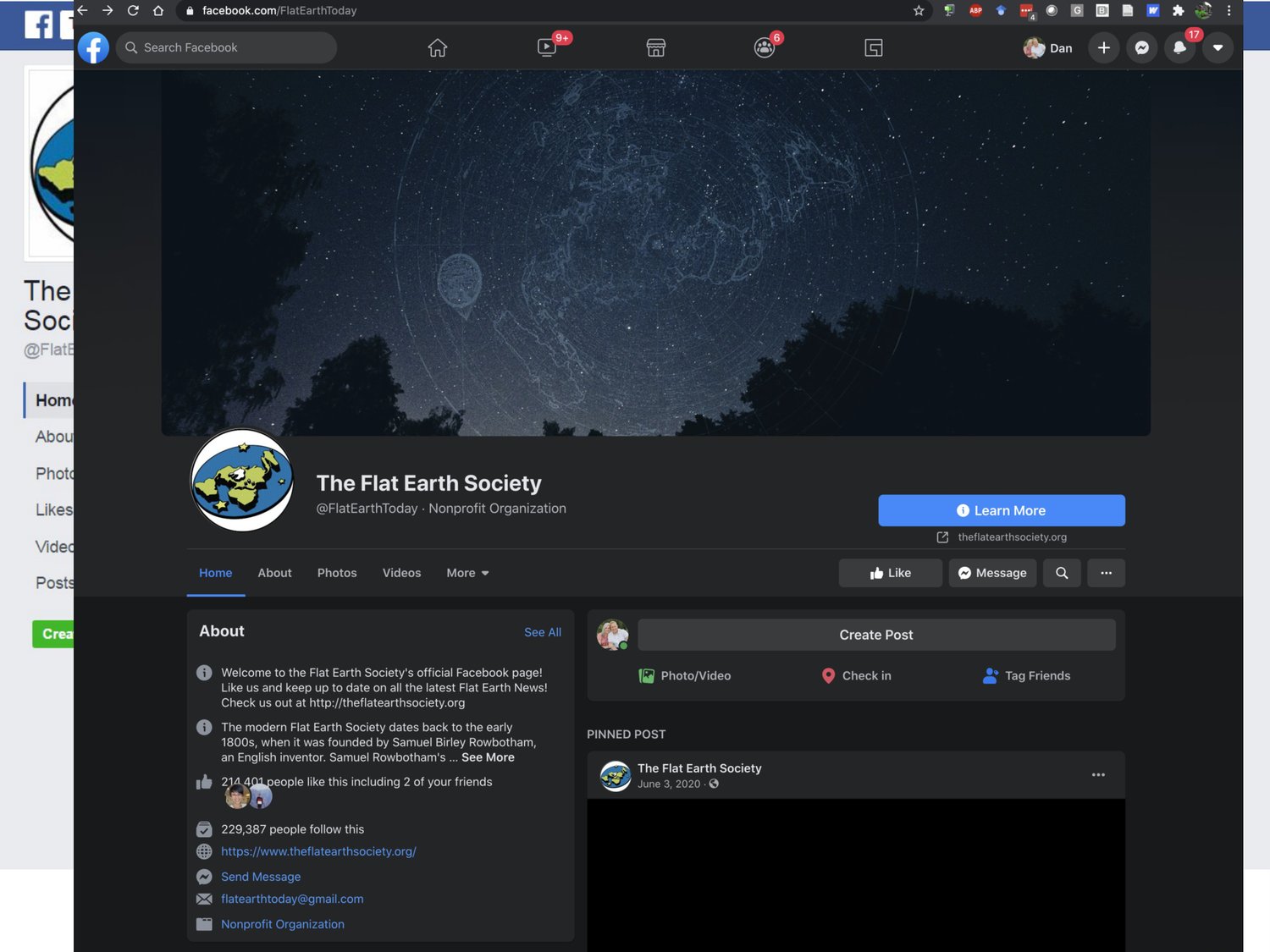

It's still a thing - see Facebook. Screenshot of the Flat Earth Society page, captured around 2020. Worth ten seconds, not more; the teaching point is that a locally-flat model feels right.

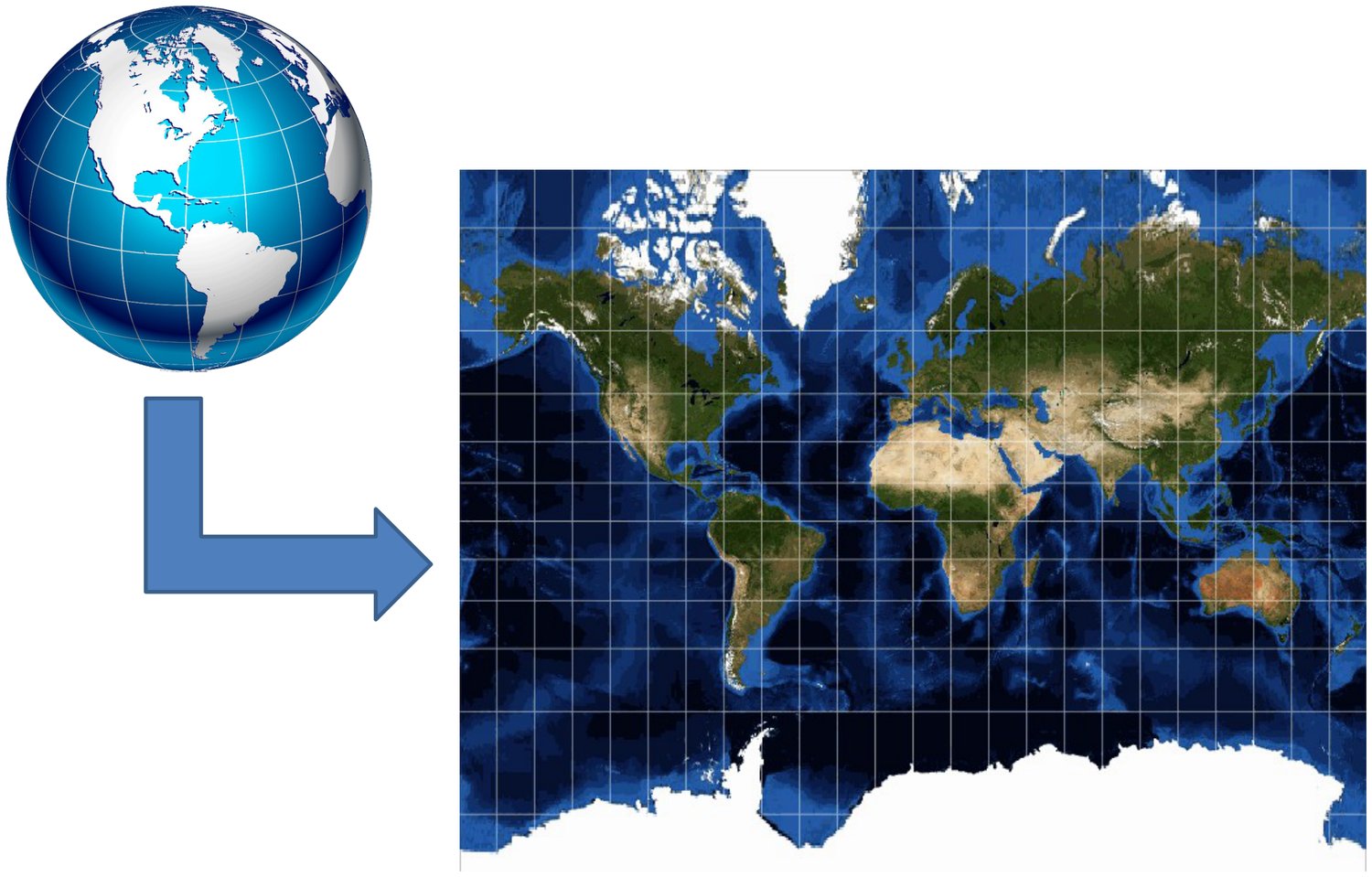

It is difficult to represent the curved Earth on flat paper, so we get distortion. Everything in Part 2 is a strategy for deciding *which* distortion you are willing to accept.

Source figure is a poster of projection outlines. The four properties are the vocabulary for the rest of the hour.

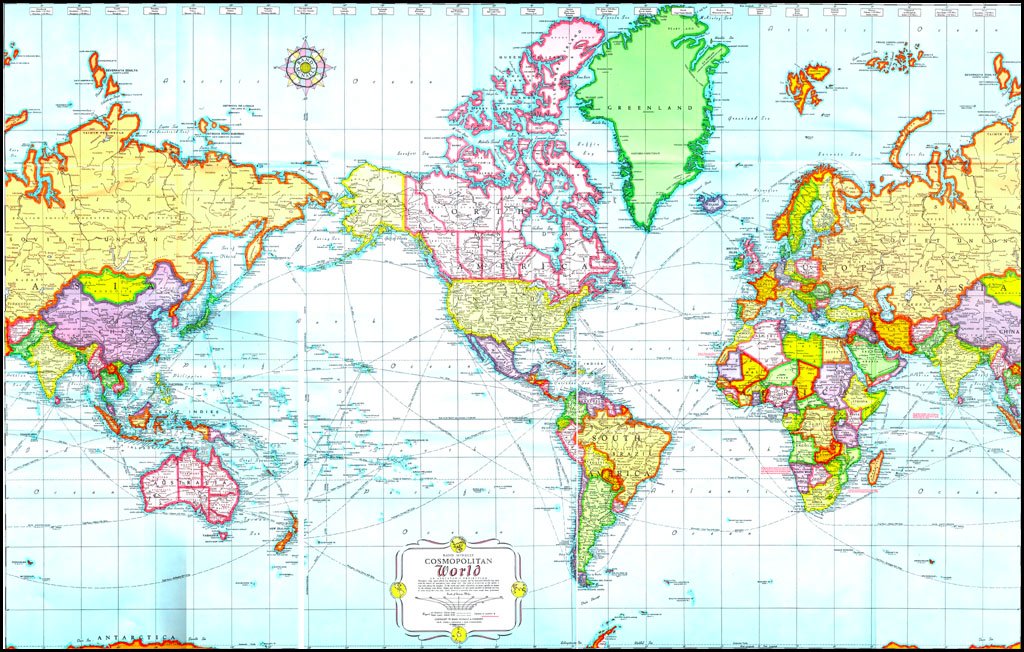

Here is a typical map of the Earth. What is the dominant feature? Why is Greenland so huge? Look at the globes: Greenland is closer in size to which country in the western hemisphere? Mexico. This map makes Russia, Canada, and Greenland look like the dominant countries in the world.

Answer: D, Mexico. On a Mercator map Greenland looks like Africa; on the globe it is about the size of Mexico. Drag Greenland down to the equator in thetruesize.com and let them watch it shrink.

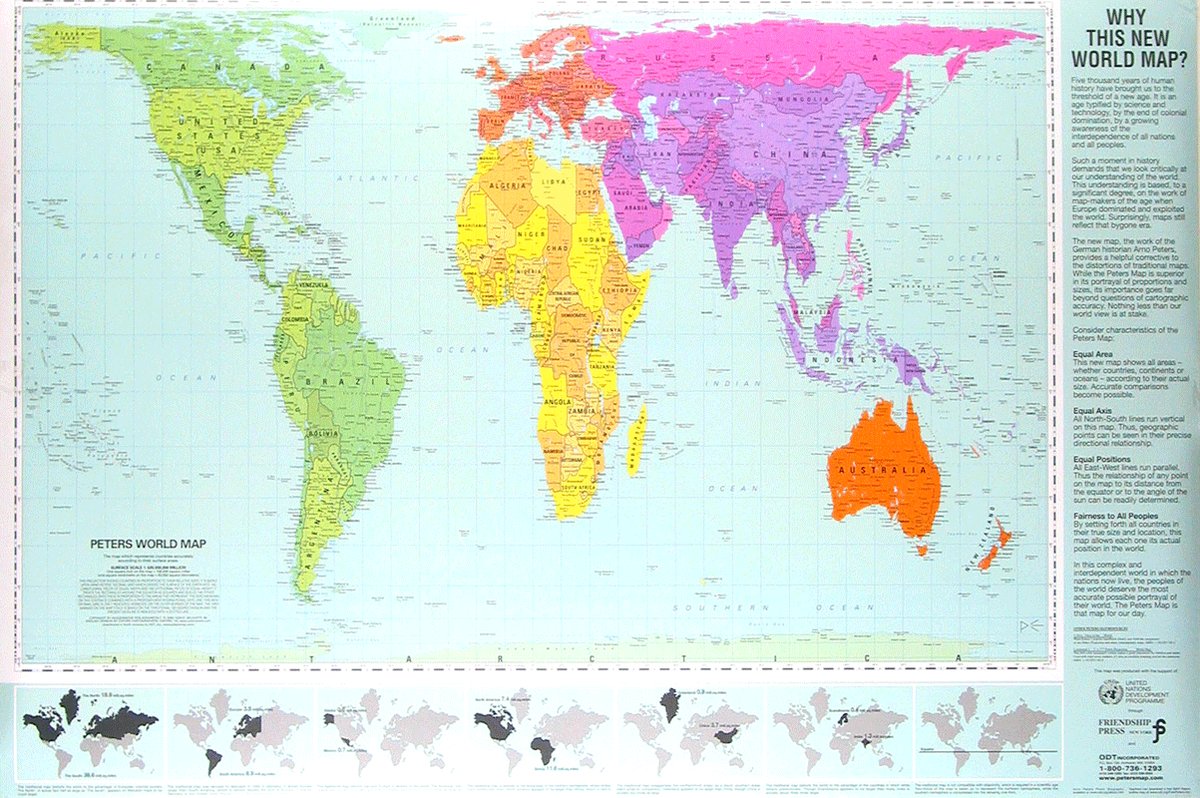

This is the Peters map. What kind of projection is it? It does not fit conic, and it is not Mercator. It is a cylindrical projection, but the north and south spacing of the parallels is compressed so that each country keeps its correct proportional area: a cylindrical equal-area map. North-south and east-west directions are maintained and area is maintained; shape is squashed, so it is not conformal. It was developed for political purposes, to communicate the relative importance of countries by their true size.

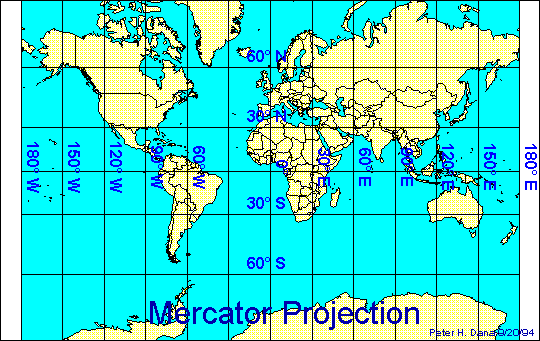

This is a Mercator projection - not a Transverse Mercator. How would it be made? By wrapping the projection surface as a cylinder around the Earth and projecting outward from a light source at the center of the Earth onto that surface.

Developable means it can be unrolled flat without stretching: a cylinder, a cone, or a plane. A sphere is not developable, which is the whole problem.

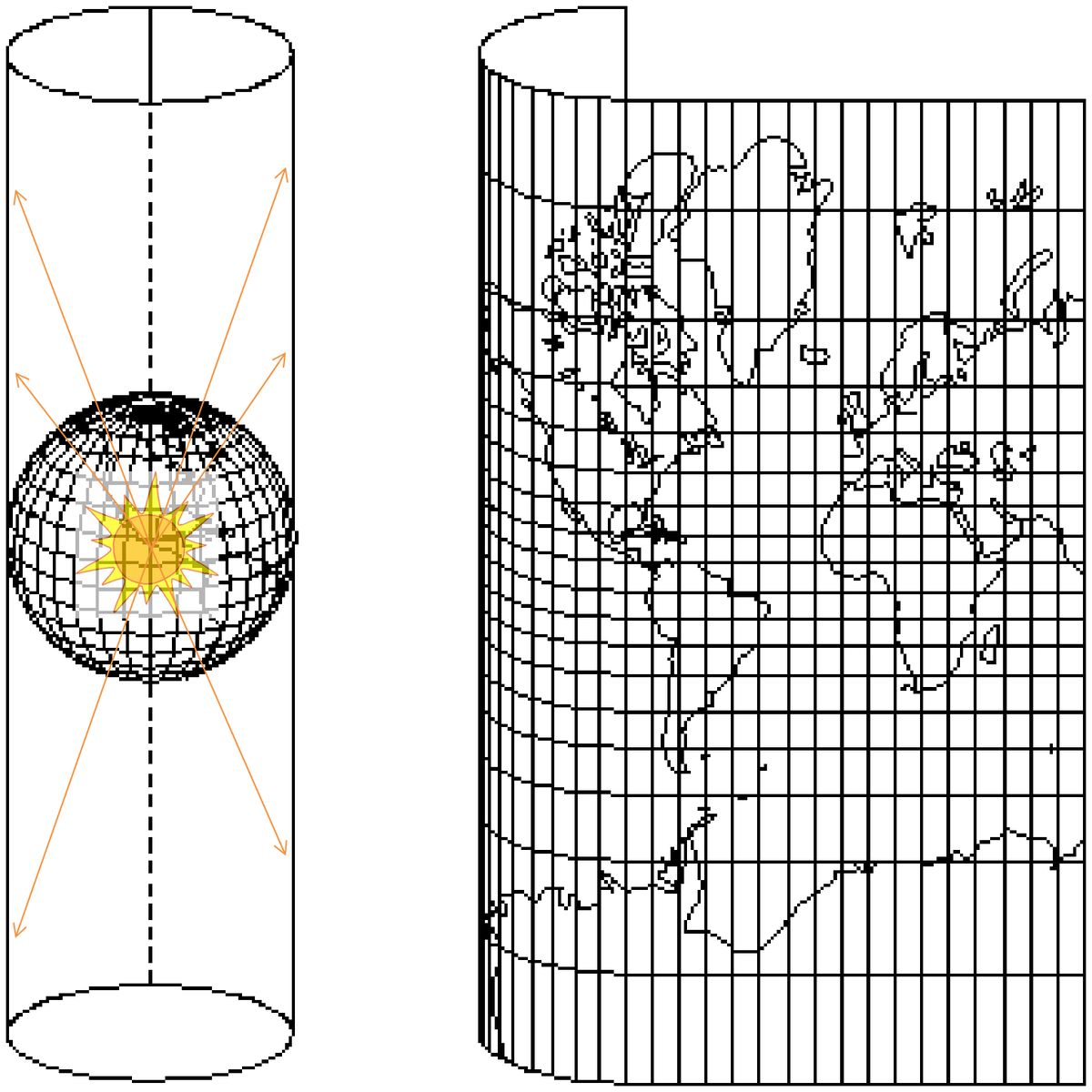

How do we get that kind of map? By creating a projection surface. Light source at the center, rays outward through the globe's graticule onto the cylinder, then the cylinder unrolls into the rectangular grid on the right. Note how the parallels spread apart toward the poles - that spreading is the Greenland problem.

Source figure is low resolution; it is the original slide art. The takeaway is the line (or lines) of true scale.

Two other cases of the cylindrical, or Mercator, family are the transverse and the oblique Mercator. In each case there is a ring around the globe where distortion is minimized. What if you could recenter that line over an area of interest? For example, rotate the transverse Mercator surface around 360 degrees and line it up every 6 degrees. That is UTM, and it is the next slide.

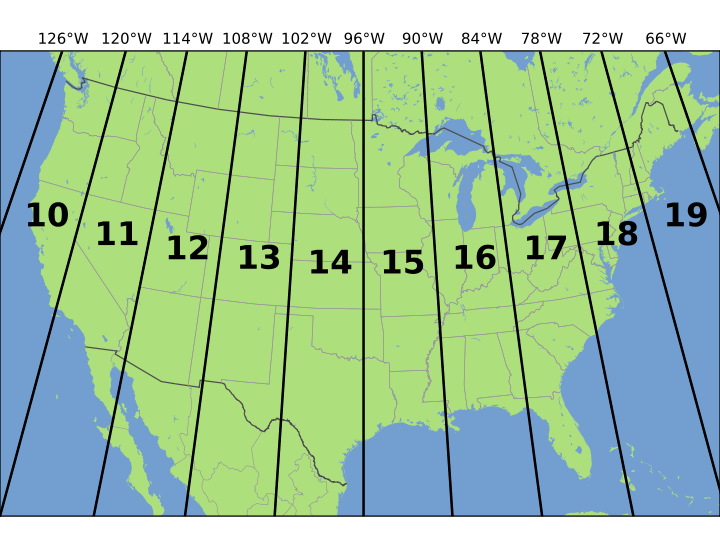

These are the UTM zones of the continental United States. Each zone is 6 degrees of longitude wide. How many are there around the globe? 60. Each zone is a separate Transverse Mercator projection with its own central meridian.

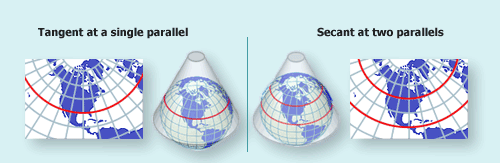

The same tangent/secant idea with a cone instead of a cylinder. Tangent at a single parallel, or secant at two. The line of contact is a parallel, so a conic projection is at its best across an east-west band.

Lambert Conformal Conic projections, tangent or secant, are another common category. Ask: which areas of the globe have distortion minimized here?

VERIFY: the source deck's Lambert terminology is uneven ("Lambert conic conformal", "Lambert conformal conic") and its distortion examples are asserted without a figure. Settle the wording and the examples before this is used as a graded reference.

Start of the rapid-fire drill. Cylinder, upright, touching along one line - the equator.

Same cylinder, tilted, still touching along a single line.

The cylinder is turned 90 degrees, so it touches along a meridian instead of the equator. The source slide labeled this "aka Mercator", which is wrong: the plain Mercator is the normal (upright) case. Turned on its side it is a Transverse Mercator, and that is the family UTM comes from.

The cylinder is smaller than the globe now, so it cuts through: two lines of true scale instead of one.

Tilted and cutting through.

Turned 90 degrees and cutting through. This is the UTM case: each zone is a secant Transverse Mercator with a scale factor of 0.9996 on the central meridian.

A cone resting on the globe, touching along one parallel.

Source answer, kept verbatim.

VERIFY: two problems with the source label. The usual name is "Lambert Conformal Conic", not "Lambert conic conformal"; and the standard LCC used for State Plane and for national mapping is a *normal* secant conic (axis aligned with the Earth's axis), not an oblique one. Confirm the intended answer before this is reused on an exam.

Ask first, take a vote, then show the distortion figure on the next slide.

TODO(graphic): the "ask" slide is deliberately bare so the evidence figure lands on the next slide; if a visual is wanted here, it must be the same distortion map, not a new one.

The evidence. Contours of scale error: a standard circle of true scale, then -0.5%, -1%, +1%, +2% arcs. Equal distortion follows the arcs, not the state lines. Give them a moment to find Florida and Washington on it.

Source answer: B. Both areas sit on roughly the same scale-error contour on this figure, even though they are nowhere near each other.

VERIFY: the source deck asserts B without stating which projection the figure shows or which contour the two areas fall on. Confirm the figure and the answer before this is used as a graded question.

Ask first, then show the two UTM figures.

TODO(graphic): bare "ask" slide by design; the UTM zone figures follow on the next two slides.

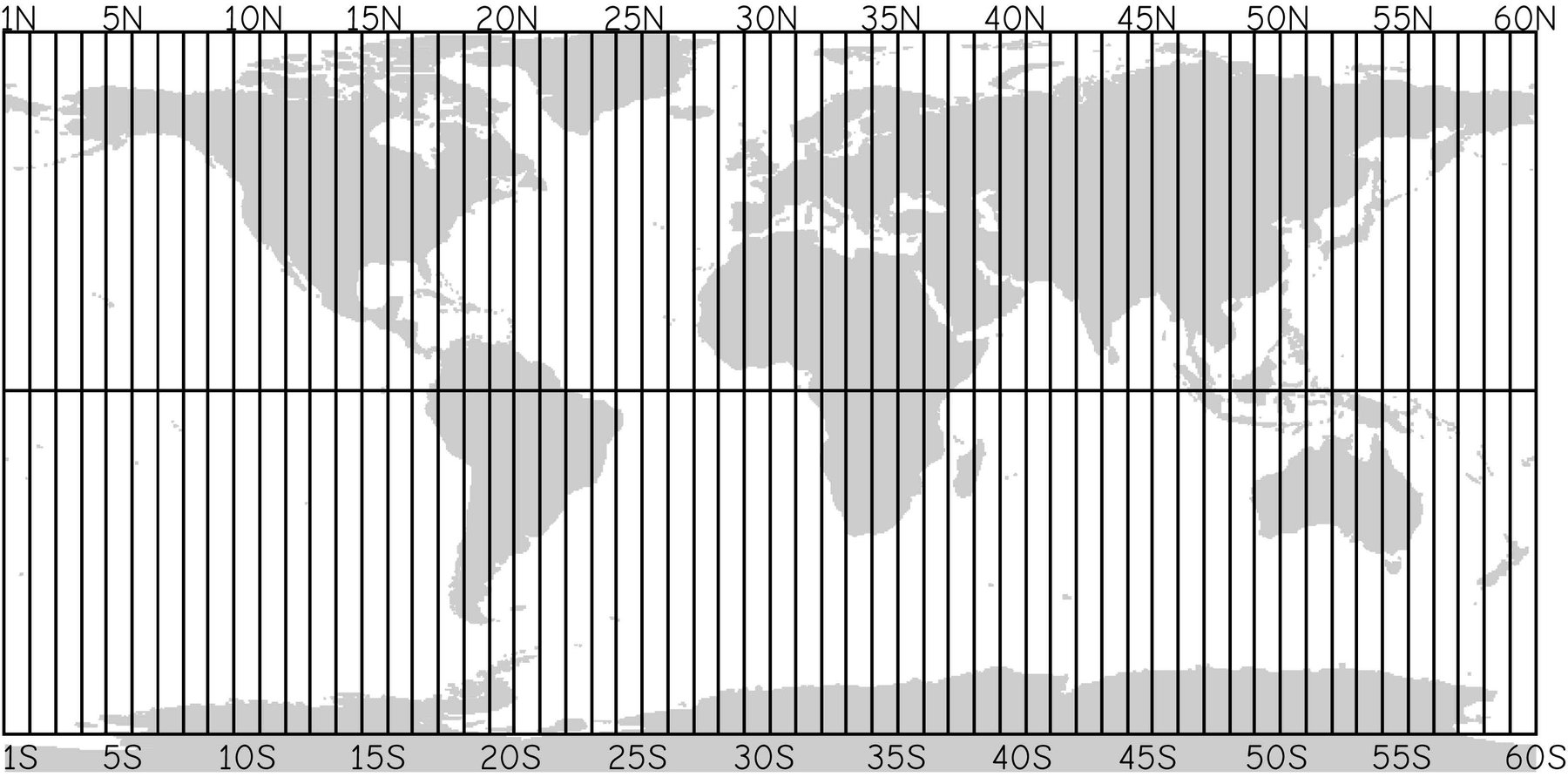

Sixty zones, each 6 degrees of longitude wide, numbered 1 to 60 eastward from the antimeridian, with separate north and south variants. Note that the zones are bounded by meridians, not by latitude.

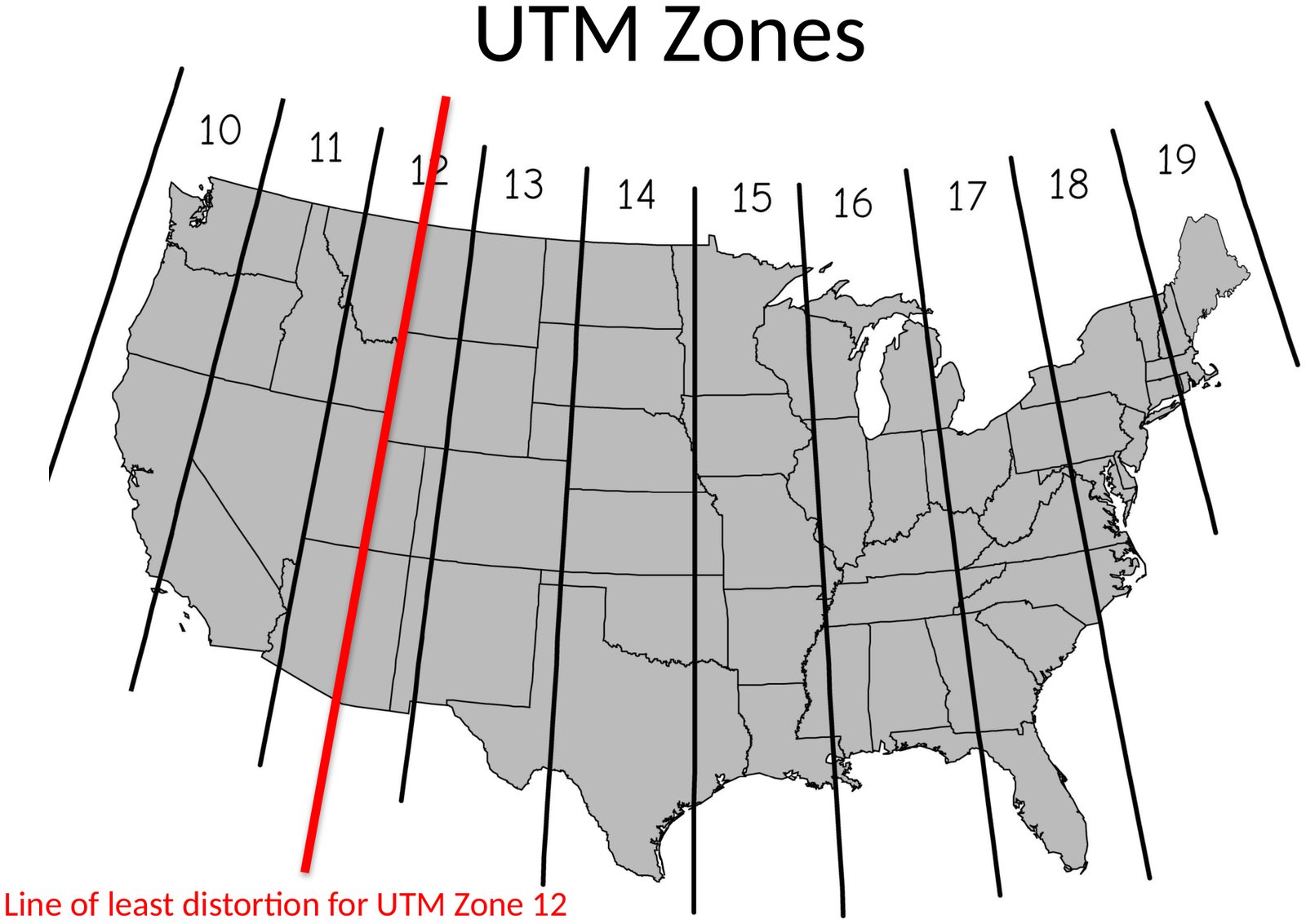

The red line is the central meridian of UTM Zone 12, the line of least distortion for that zone. Utah sits on it. Distortion grows east and west of it, not north and south.

Answer: C. The central meridian of the zone. This is why a UTM zone suits a north-south study area and fights an east-west one.

Ask before showing the two maps. Prompt: what shape is Tennessee? Long east-west.

TODO(graphic): bare "ask" slide by design; the two distortion maps follow.

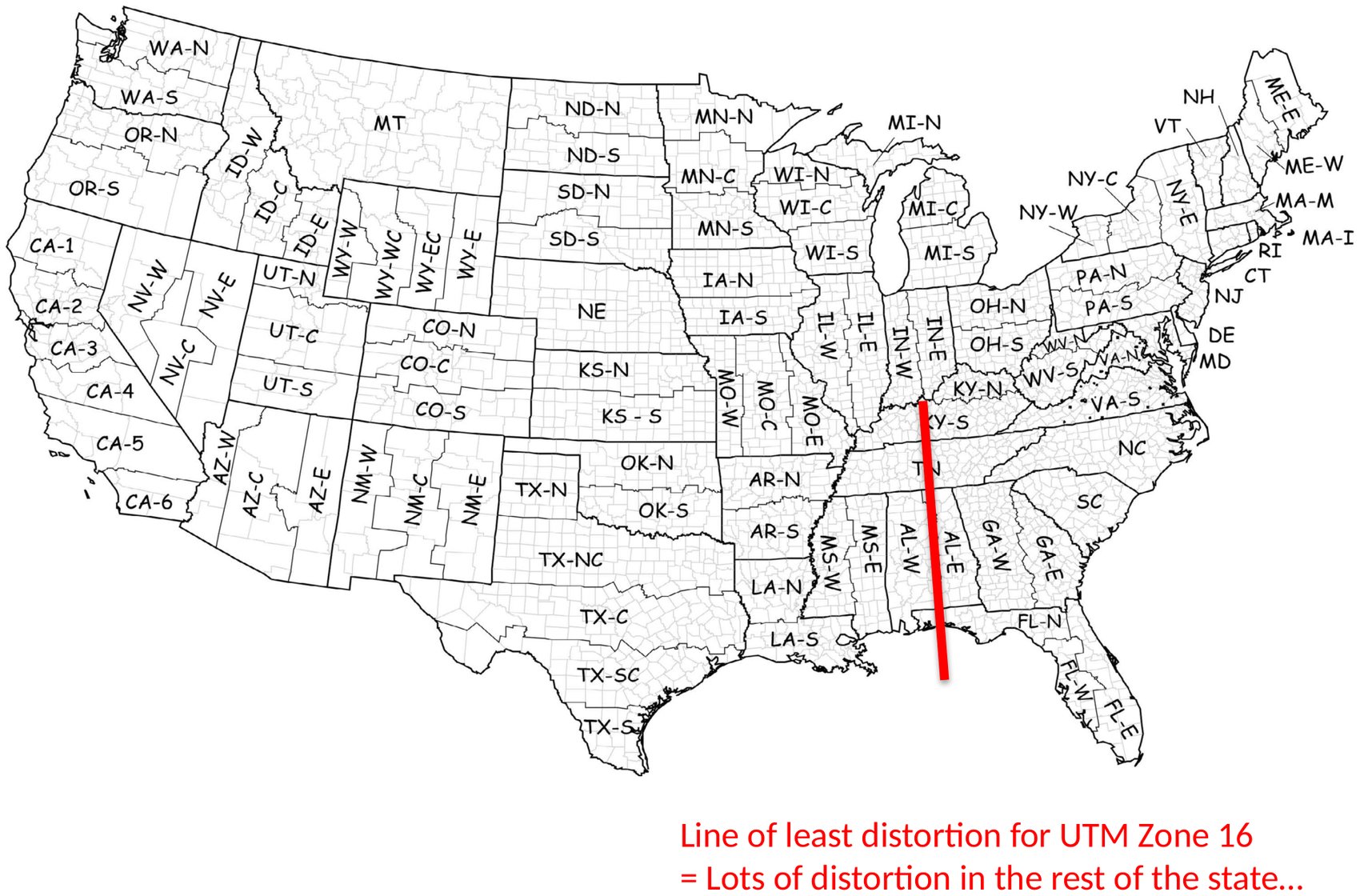

The red line is the central meridian of Zone 16, running north-south through the middle of Tennessee. It leaves most of the state, east and west, well off the line: lots of distortion in the rest of the state.

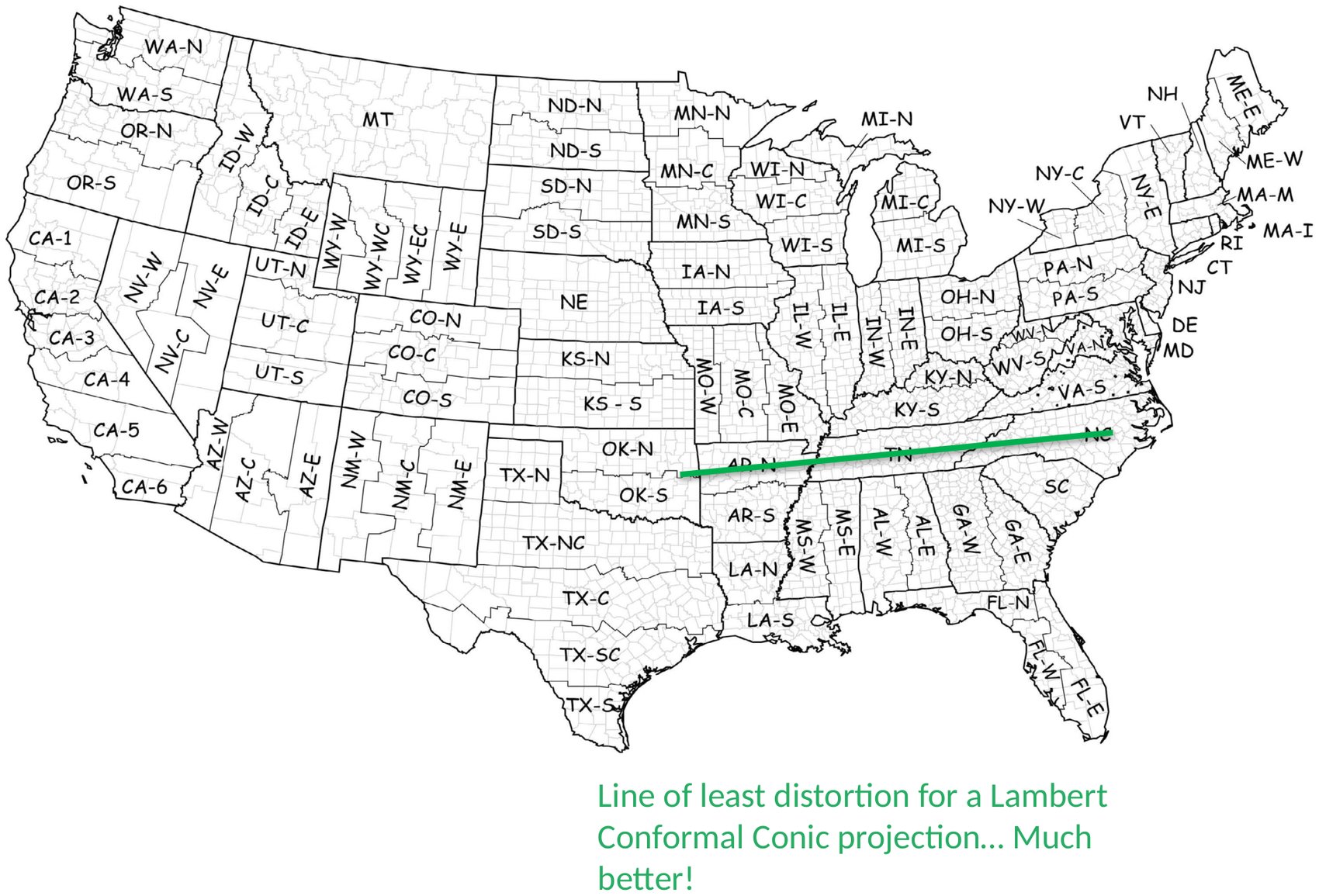

The green line runs east-west, along the long axis of the state. Much better. Base map is the State Plane zone layout, which is itself built on this logic: east-west states get Lambert Conformal Conic zones, north-south states get Transverse Mercator zones.

VERIFY: the source slide draws a single "line of least distortion" for the Lambert case. A secant LCC has two standard parallels, so there are two lines of true scale, with a band of slightly compressed scale between them. Confirm the intended simplification.

Answer: A. Match the shape of the zone to the shape of the study area: east-west extent wants a conic, north-south extent wants a transverse cylinder.

Answer: B. "Register" here is the printing-press sense: bringing separate layers into alignment on a common frame.

TODO(graphic): this slide has no visual. Two misregistered layers snapping into alignment would illustrate it; do not fabricate a screenshot.

Second problem, after "humans think it is flat": the Earth is not a sphere either. It is an oblate, lumpy, changing solid. Every coordinate is reported against some agreed-on idealization of that shape.

Source answer: B, Ellipsoid. Figure contrasts a sphere (a = b) with an ellipsoid (a > b), and labels the semi-major axis a, the semi-minor axis b, and the flattening (a - b) / a.

VERIFY: "spheroid" and "ellipsoid" are used almost interchangeably in GIS software (Esri documentation says spheroid where PROJ says ellipsoid), so options B and C are hard to separate. Confirm the intended distinction before using this as a graded question.

The Earth is not really shaped like this - the figure is exaggerated to show the geoid. Keep the three surfaces straight: the topography is what you walk on, the geoid is the gravity-defined sea level, the ellipsoid is the smooth mathematical fit. Elevations are usually relative to the geoid; GNSS heights are relative to the ellipsoid.

Third problem. Every ellipsoid and every datum is a best fit to the measurements available when it was defined, and the measurements keep getting better. That is why datums have version years.

Why the discrepancies in these reported lat/long values? The same bench mark, published three times under three realizations of NAD 83, moves in the fourth and fifth decimal of a second. Nothing moved on the ground - the reference frame was re-solved. The balloon example works like this: as you reshape it into different ellipsoids, some points on the surface move closer together and some move further apart.

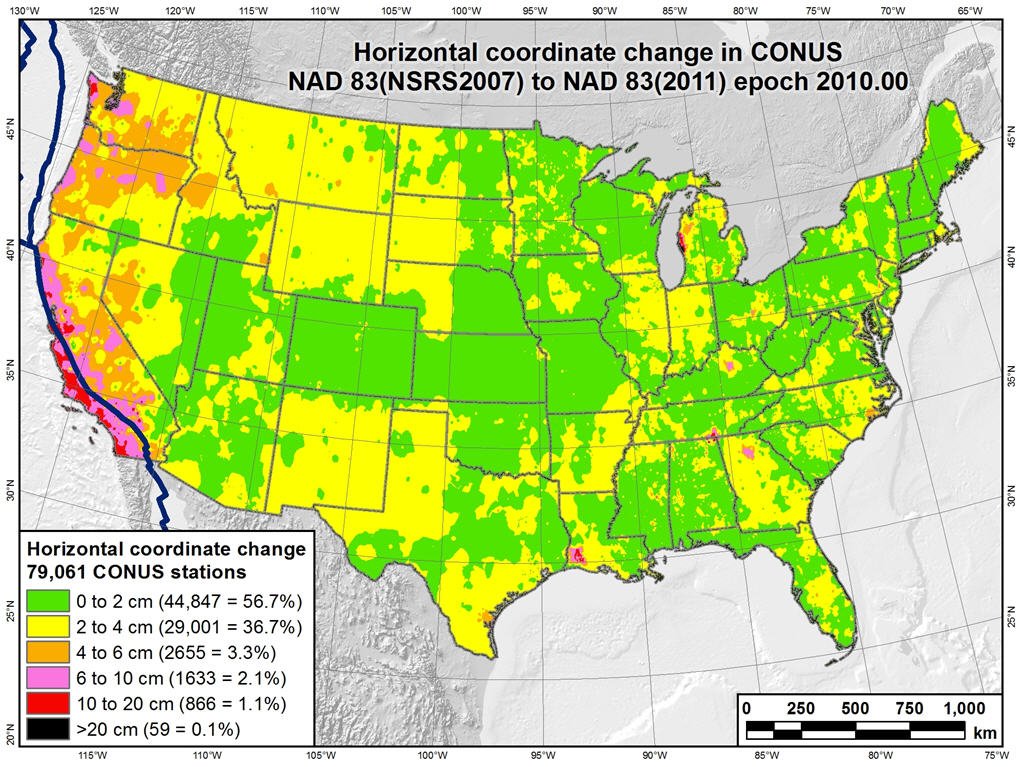

Horizontal coordinate change in the conterminous US between the NAD 83 (NSRS2007) and NAD 83 (2011) epoch 2010.00 realizations, over 79,061 CONUS stations. Most of the country moved 0 to 4 cm; the west coast moved much more. Same datum name, different realization.

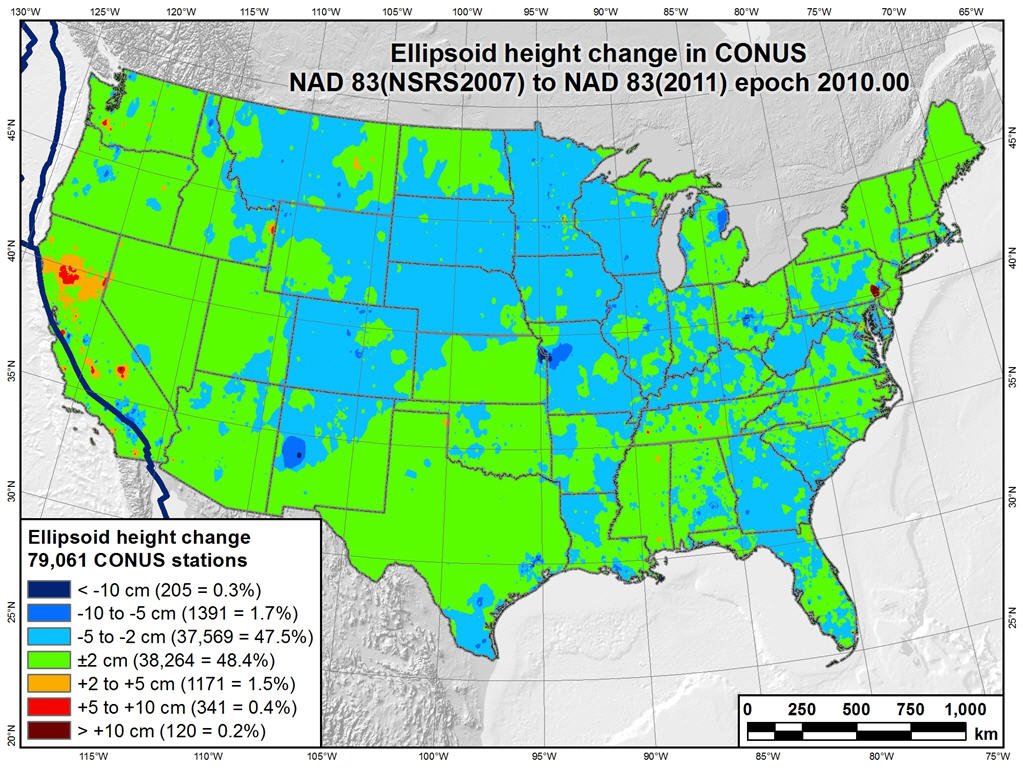

The vertical half of the same comparison: ellipsoid height change over the same 79,061 stations. Ask whether a few centimeters matters. For a watershed map, no. For a survey control point or a utility as-built, yes.

The source slide said "Let QGIS handle it," which is the wrong software for this course and the wrong habit besides: software will pick a default transformation silently, and defaults differ between products and versions.

TODO(instructor): replace with a defensible transformation-selection workflow.

TODO(graphic): the screenshot is the QGIS datum-transformation preferences dialog, carried over from the introductory course. It needs to be replaced with the equivalent ArcGIS Pro transformation dialog, captured in a real ArcGIS Pro session. The exact pane path is not asserted here because it was not verified in Pro.

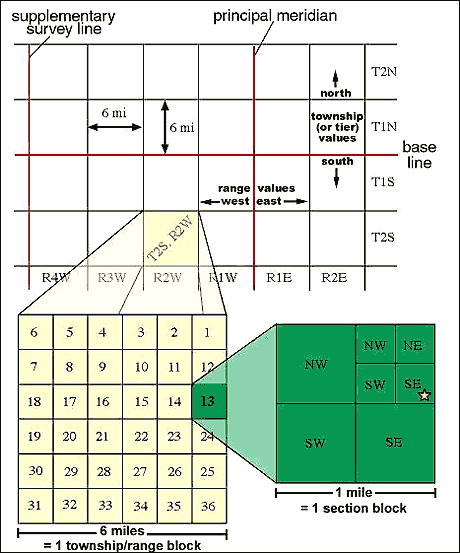

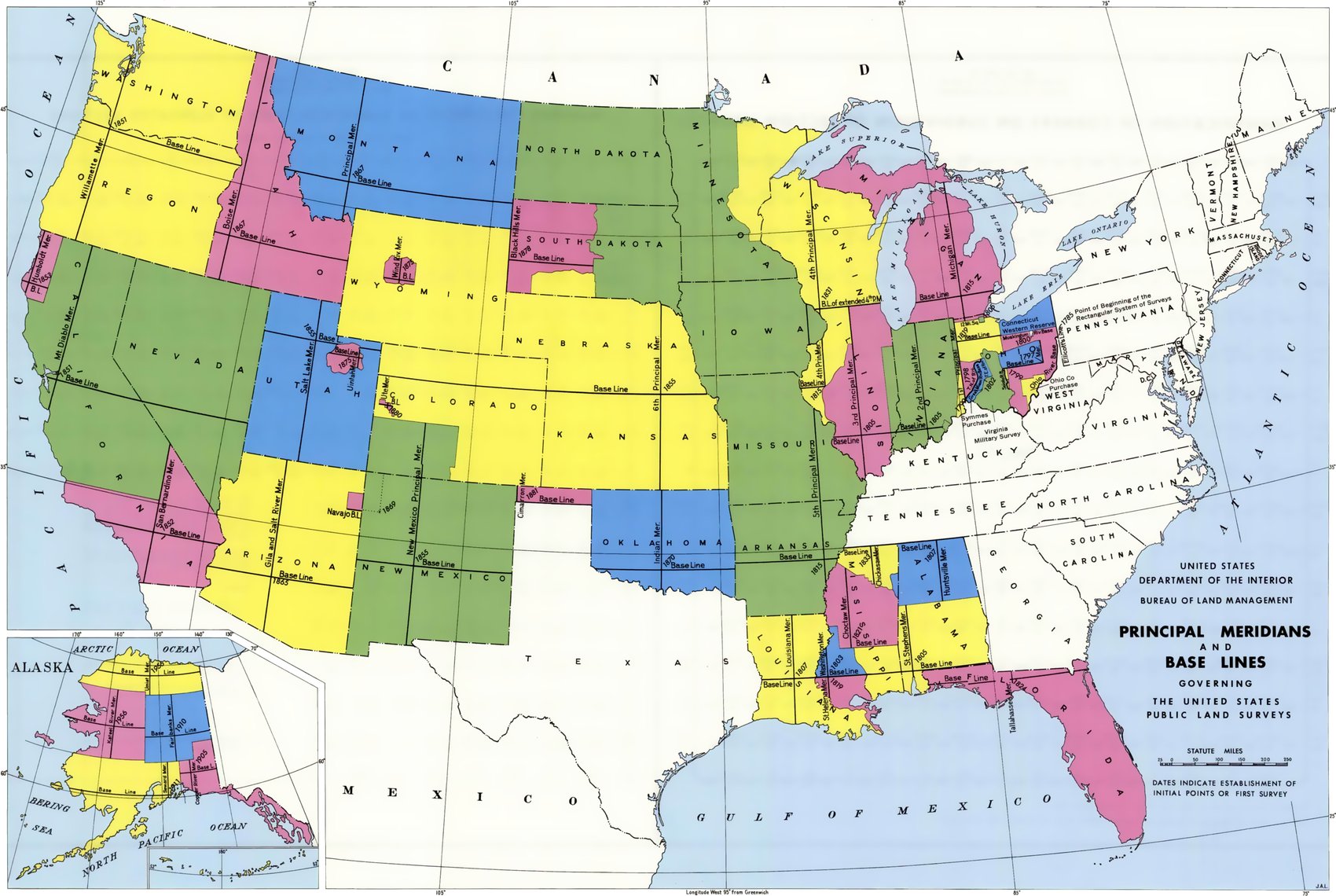

A lot of western US civil engineering happens at the local scale using the PLSS: township, range, and section off a principal meridian and base line. It is not a projected coordinate system in the sense of the rest of this lecture, but you will meet it in legal descriptions and in parcel data, and you will need to relate it to one.

Five minutes, in pairs, then a show of hands on the two that split the room. The Tennessee item is the reliable one: the vote usually goes to UTM because UTM is the system they use, and the figure earlier in the hour is the argument - match the shape of the low-distortion band to the shape of the study area, and Tennessee is long east-west. The NAD 83 item splits a smaller room: plenty of students read a datum name as a projection, which is exactly the confusion that makes two layers land on top of each other and look fine until someone measures. If the room has no signal, put the URL on the board; the items read aloud just as well, and the units question makes a good one to argue out loud.
