Network Analysis

Part B — Service Areas, Closest Facility, and Lab 12

CE 414 Engineering Applications of GIS
Civil & Construction Engineering
Brigham Young University
Dr. Dan Ames

CE 414 · Week 14 — Network Analysis, Part BLast Updated: 2026-10-10© 2026 Daniel P. Ames · CC BY 4.0

Today's Goals

By the end of class you should be able to:

  • Run a service area in ArcGIS Pro: the analysis layer, Add Locations, Solve
  • Say which solver answers which question: Service Area, Closest Facility, Location-Allocation
  • Explain why a buffer and a service area disagree about the same four minutes
  • Build Lab 12's model and know what its cutoff decides
CE 414 · Week 14 — Network Analysis, Part B

Tuesday in One Picture

  • A network is edges with a cost, meeting at junctions
  • The impedance is the cost you minimize; minutes and meters pick different roads
  • Today's solvers all do one thing: spread cost outward through the network from a point, and stop at a cutoff or a destination
CE 414 · Week 14 — Network Analysis, Part B

Part 1 — Three Solvers

CE 414 · Week 14 — Network Analysis, Part B

Service Area: What One Station Can Reach

  • Spread minutes outward from a facility along the edges; stop at the cutoff
  • Draw a polygon around the reached edges, one per cutoff: rings
  • From Provo Station 21: 1.5 km² inside two minutes, 4.9 km² inside four, 15 km² inside six
  • It is not a circle, because the roads are not
CE 414 · Week 14 — Network Analysis, Part B

Service Areas from All 42 Stations

  • Load all 42 stations as facilities and solve once
  • Dissolve the overlaps so a block near two stations is counted once
  • Within two minutes: 52 km²; four: 195 km²; six: 380 km²; eight: 557 km²
  • The four-minute area is a string of small shapes around the stations, which are in the cities
CE 414 · Week 14 — Network Analysis, Part B

The Tools in ArcGIS Pro

  1. Make Service Area Analysis Layer: the network, the cutoffs, the travel direction, how the polygons are drawn. It computes nothing
  2. Add Locations: the stations into the Facilities sublayer, each snapped to the nearest edge within the search tolerance
  3. Solve: fills in the Polygons sublayer
  • The result is an analysis layer in the map, not a feature class

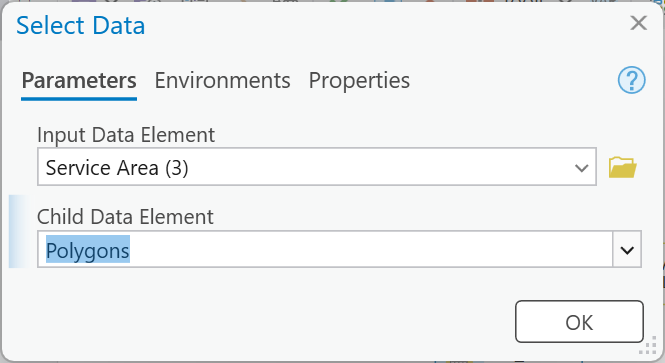

  • In a model, Select Data pulls the Polygons out and Copy Features keeps them
  • The same three steps run every solver: a Closest Facility or Location-Allocation layer has its own sublayers
CE 414 · Week 14 — Network Analysis, Part B

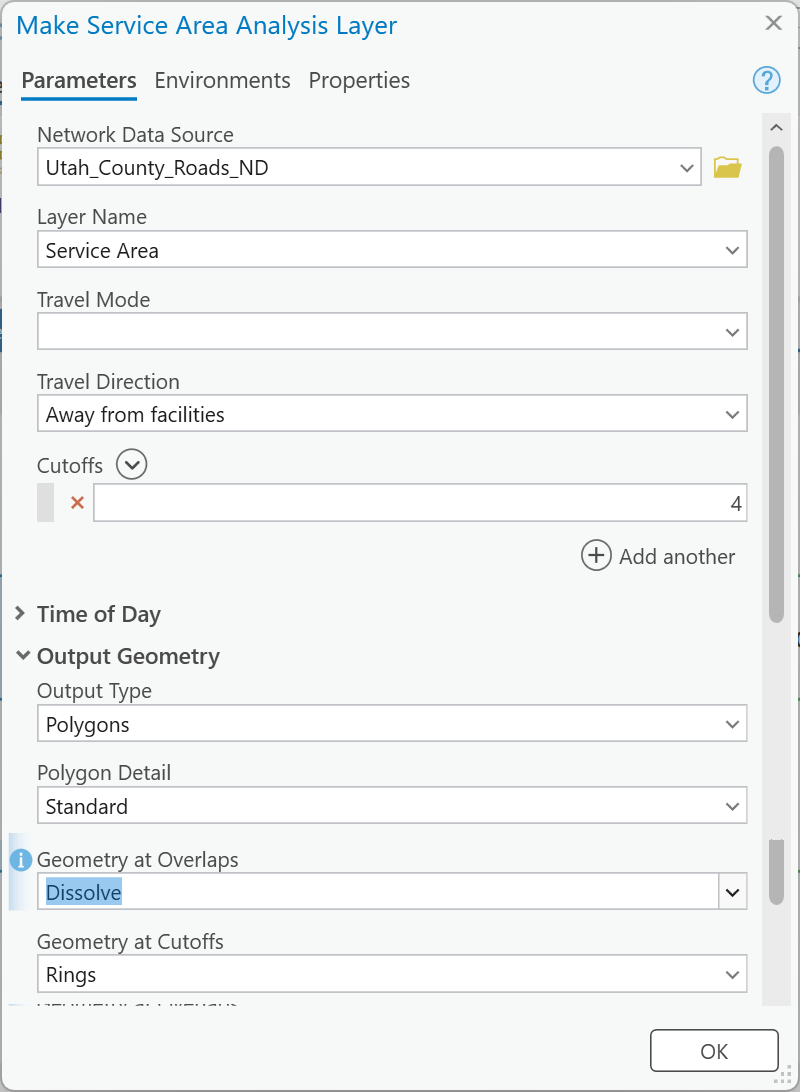

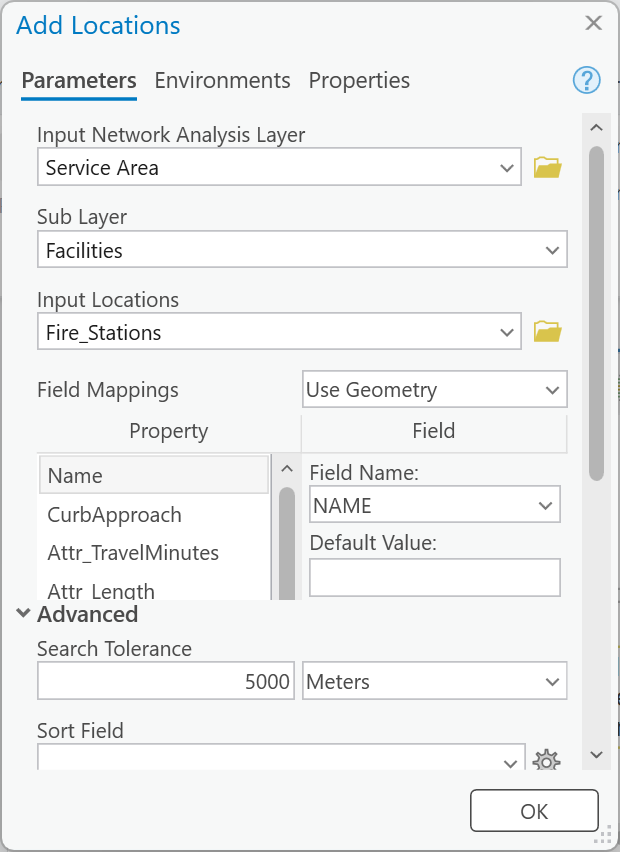

The Same Three, as Dialogs

CE 414 · Week 14 — Network Analysis, Part B

Closest Facility: Which Station Gets There First?

  • Start at the incidents and spread toward the facilities; keep the first one reached
  • Reports the route and its minutes for each incident
  • Eight block centers away from the stations: the closest engine is 5 to 21 minutes out
  • The dispatcher's question; the service area is the planner's
CE 414 · Week 14 — Network Analysis, Part B

Location-Allocation: Where Should the Next Station Go?

  • Demand: the blocks, weighted by people; candidates: the county's 249 schools
  • Maximize Coverage within four minutes; the 42 stations required, add one
  • The winner covers about 21,000 more people: Lab 1's site selection, solved on the network
CE 414 · Week 14 — Network Analysis, Part B

Which Solver?

A city council asks four questions. Which one is a Service Area question?

  1. For this address, which station's engine arrives first, and how long does it take?
  2. How many residents live more than four minutes' drive from any station?
  3. Where should the next station go to bring the most people inside four minutes?
  4. What is the fastest route from Station 21 to the hospital?
CE 414 · Week 14 — Network Analysis, Part B

Part 2 — Lab 12, Fire Response Coverage

CE 414 · Week 14 — Network Analysis, Part B

The Question and the Data

  • NFPA 1710: the first engine should arrive within 240 seconds of travel, four minutes
  • Utah County: 42 stations, 10,092 Census blocks, 659,399 people, UGRC's network at its typical-traffic minutes
  • A block counts as covered when its center is inside the four-minute area
  • At four minutes: 379,054 people outside, 57.5 % of the county
CE 414 · Week 14 — Network Analysis, Part B

A Buffer and a Network Disagree

  • The same four minutes as a buffer: 35 mph × 4 min = 3.75 km around each station
  • The buffer leaves 23,203 people outside, 3.5 %; the network, 57.5 %
  • 355,851 people live in blocks the buffer counts and the roads do not reach
  • Both are "four minutes". Only one of them drives
CE 414 · Week 14 — Network Analysis, Part B

The Model

  1. Make Service Area Analysis Layer: cutoff 4, away from facilities, dissolve, rings
  2. Add Locations (the stations) ▸ Solve ▸ Select Data ▸ Copy Features: Served_Area
  3. Make Feature Layer from the blocks ▸ Select Layer By Location: blocks whose center is in it, inverted ▸ Summary Statistics: sum of PP_TOTAL
  4. Buffer the stations 3.75 km; its own layer of blocks, the same selection and sum
  5. Parameters: Cutoff_Minutes, Buffer_Distance
CE 414 · Week 14 — Network Analysis, Part B

The Model, Exported

  • Top: the network and the cutoff into the service-area chain; Served_Area out
  • Bottom: the blocks, once per branch, through Make Feature Layer before each selection
  • Eight P badges: two numbers in, six datasets out
CE 414 · Week 14 — Network Analysis, Part B

What the Cutoff Decides

  • Four minutes is a standard, not the answer
  • Step 9 runs the model at 2, 6 and 8 minutes, at your own cutoff, and with a smaller buffer
  • Watch the share outside: between which two cutoffs does it fall fastest, and why does it stop falling?
  • Then say what the model leaves out, which way each would move your share, and what data would fix the one that matters most
CE 414 · Week 14 — Network Analysis, Part B

Next: Build It

  • Download the package, read READ-ME-FIRST.txt, fetch the county boundary from UGRC yourself
  • Step 1 first: open the network's properties and read the two one-way minutes off I-15
  • Build the model as the page says, run it at 4 and at your cutoff, then the Step 9 runs
  • Two maps, a sensitivity table, and Lab12.atbx with the report

Lab 12 — Fire Response Coverage

CE 414 · Week 14 — Network Analysis, Part B

Final Thoughts

Quiz: Four Minutes Away. Five questions on Solve, which solver answers which question, why a buffer and a service area disagree, and what Lab 12's cutoff decides. Scan the code, or open the link under it.

  • Not graded, nothing recorded: a quick check that today's material made sense
  • The buffer question comes back in Lab 12's Map 2

Before next class

  • Lab 12 — Fire Response Coverage — due Saturday 11:59 pm: assignments/lab-12
  • Midterm 2 closes Thursday 9:00 pm in the Testing Center
  • Final project: proposal meeting by Friday 5:00 pm; no class next week; the video is due Wednesday of Week 15 and the write-up Thursday
  • Office hours: calendly.com/dan-ames/office-hours

center

byu-hydroinformatics.github.io/ce414-gis-applications/quizzes/service-areas/

CE 414 · Week 14 — Network Analysis, Part B

Thursday of Week 14. Tuesday built the network: edges, junctions, connectivity, impedance. Today the three solvers that use one, in ArcGIS Pro's Network Analyst, and then Lab 12's model from its own data. Every map and number is from Lab 12's package and reference run (tools/lab12/, tools/week14_network_figures.py, tools/week14_network_numbers.json). The tool dialog captures are the lab's own Figures 2 to 4, owed to the Lab 12 GUI build; until then the icons stand in.

stamp:begin

stamp:end

The right-hand figure is the closest-facility solve: eight incidents, each routed from the station that reaches it first. By the end of the hour the three solvers should feel like three questions, not three tools.

The same figure as Tuesday's slide 11: fewest meters 9.9 km in 23.4 minutes, fewest minutes 15.3 km in 15.1 minutes. Every solver today is Dijkstra's spreading from a point along the edges; what differs is where it stops and what it reports.

Solved with Make Service Area Analysis Layer on Lab 12's network from one station, cutoffs 2, 4, 6, 8, rings (tools/week14_network_numbers.json, "one_station"). Within six minutes is the sum of the first three rings, 1.5 + 4.9 + 8.7. Point at the shape: it reaches far along the arterials and barely at all into the neighborhoods with one way in.

Lab 12's reference run, cutoffs 2, 4, 6 and 8 solved separately, each dissolved (tools/lab12/check_values.json, "sensitivity"). The areas are what students get in Step 4 for four minutes, and in Step 9 for the others; the deck gives the areas but not the populations outside each, which is what Step 9 asks them to find. Utah Lake in the middle is the gap.

The icons are Lab 12's own. The one mistake everyone makes once: run the first two and look for polygons. Nothing exists until Solve. In ArcGIS Pro 3.7.1 the first tool's parameters are Network Data Source and Layer Name; the network ships without named travel modes, so Travel Mode shows Custom and the layer uses TravelMinutes, the default cost.

Lab 12's Figures 2, 3 and 4 from the GUI build (ArcGIS Pro 3.7.1), left to right: Make Service Area Analysis Layer with one cutoff row of 4, away from facilities, dissolve, rings; Add Locations with the stations into Facilities and a 5000 m search tolerance under Advanced; Select Data, the ModelBuilder-only tool that pulls the Polygons sublayer out of the solved layer. Point out the empty Travel Mode box: the network ships without travel modes, so the default cost, TravelMinutes, is what runs.

Make Closest Facility Analysis Layer, travel direction toward facilities, one facility to find, on Lab 12's network and stations (tools/week14_network_numbers.json, "closest_facility"). Incidents were chosen 2.5 to 7 km from any station and at least 6 km apart, so the routes are visible. Note the direction: a service area spreads away from the facility, closest facility spreads from the incident toward them; on a network with one-way streets the two can differ.

Make Location-Allocation Analysis Layer, problem type Maximize Coverage, cutoff 4 minutes, 43 facilities to find with the 42 stations loaded as required and UGRC's Schools_PreKto12 points as candidates, demand = populated block centers weighted by PP_TOTAL (tools/week14_network_numbers.json, "location_allocation"; the chosen site and its count are printed there). Schools are candidates because they are public land spread through the neighborhoods, not a recommendation. Solve time about 50 seconds. This is deck material only; Lab 12 stops at the service area and the buffer.

Ninety seconds. B is the service area (spread from the facilities, count what is inside); A is closest facility; C is location-allocation; D is a route. Have the room name all four.

Lab 12's baseline (tools/lab12/check_values.json): the dissolved four-minute service area, 194.85 km², and the populated blocks whose center falls outside it. The number is big because UGRC's minutes are for typical driving, not an engine running code, and because four minutes along local streets is not far; both are things Step 9 asks about. NFPA 1710's 240-second travel time is from the standard as quoted by fire departments; the lab page carries a verify note for the current edition.

Lab 12's Map 2 (its Figure 10): the yellow dashed buffer, the blue network area, and in orange the blocks inside the buffer whose center is outside the service area. The buffer assumes the engine drives 35 mph in every direction at once, across the lake. Lab 12's Step 6 has every student make this comparison; Map 2 is this picture with their name on it.

Lab 12's model, step for step; the example map is its Figure 9. Two things to say before they build it: a run from the tool dialog deletes every dataset that is not a parameter, so the six outputs are parameters too; and each branch's Select Layer By Location gets its own Make Feature Layer from the Census_Blocks dataset, because a selection belongs to the layer: two selections on one layer give both branches the same blocks (the GUI build's first dialog run put the buffer's 1,365 blocks in both counts). Figure C, the model exported from ModelBuilder, is on the lab page.

Lab 12's Figure C, exported from ModelBuilder after the GUI build. The two Make Feature Layer tools at the lower left are the thing to point at: both read the Census_Blocks dataset, and each gives its branch a layer of its own to select on. The green checks are from a completed run; the dashed-free connectors mean no preconditions are needed once the branches share nothing but the dataset.

Do not give the Step 9 populations; the lab publishes only the four-minute baseline and the two personal examples. The shape to let them discover: a few minutes more takes in whole cities, and after that the share stops falling because almost nobody is left. Each student's cutoff is 4 + 0.04 x the last two digits of their BYU ID, 4.00 to 7.96 minutes, and the grader reproduces their numbers from it.

If there is time, build Steps 2 to 5 live in ArcGIS Pro on the Lab 12 package (C:\Ames\Lab12GUI\Lab12.aprx is set up for it) and let the room watch Solve fill the polygons. The check value to show: 194.85 km2 and 379,054 people.

Four minutes, in pairs. If the room has no signal, put the URL on the board.

Deck written October 10, 2026, new for the course (no source PowerPoint). Figures and numbers: tools/week14_network_figures.py from Lab 12's package and reference run (tools/lab12/); the two example maps are Lab 12's Figures 9 and 10 (tools/lab12/build_figures.py). Owed: Lab 12's dialog captures (Figures 2 to 4) and Figure C from the GUI build, to replace the icons on slide 7 and the map on slide 13.
