Today's Goals

By the end of class you should be able to:

  • Explain what slope, aspect, curvature and hillshade measure, and how local terrain surfaces are computed from a 3 × 3 window
  • Compute slope at a cell by hand, two different ways, and get the answer the software would
  • Explain why cell size, vertical units and the slope algorithm are part of the reported value
  • Explain what a viewshed is
CE 414 · Week 5 — Terrain Analysis

Describe the terrain

Variable Description Importance
Height Elevation above base Temperature, vegetation, visibility
Slope Rise relative to horizontal distance Water flow, flooding, erosion, travel cost
Aspect Downhill direction of steepest slope Temperature, vegetation, soil moisture
Upslope area Watershed area above a point Soil moisture, runoff volume and timing, erosion
Flow length Mean upstream flow path length to a point Sediment and erosion rates
Profile curvature Curvature parallel to slope direction Erosion, water flow acceleration
Plan curvature Curvature perpendicular to slope direction Water flow convergence, soil water, erosion
Visibility Site obstruction from given viewpoints Utility location, viewshed preservation
CE 414 · Week 5 — Terrain Analysis

Scale is part of the answer

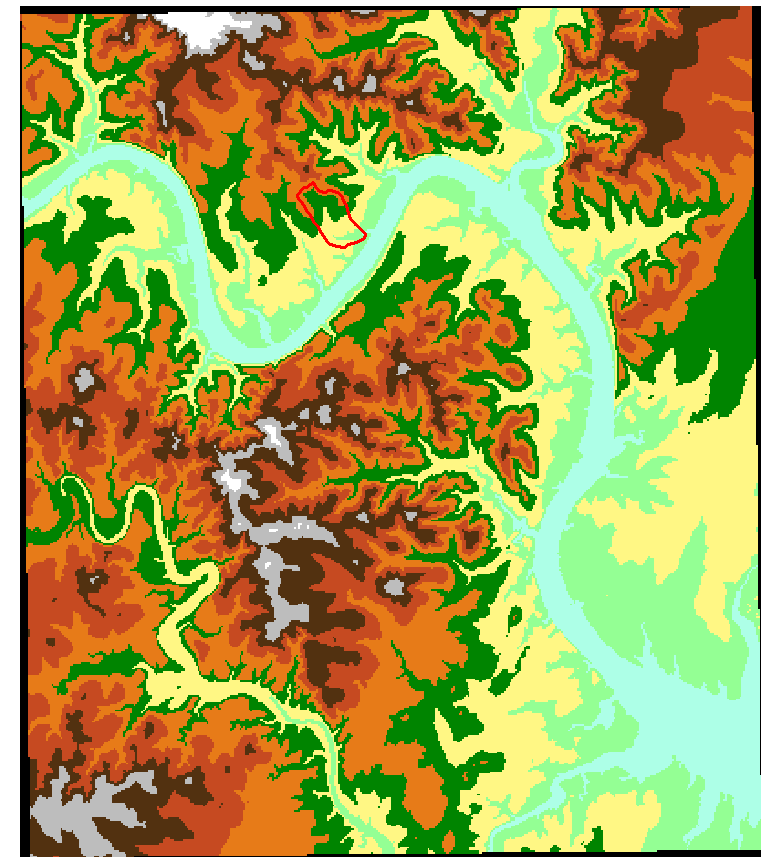

30 m cells

center

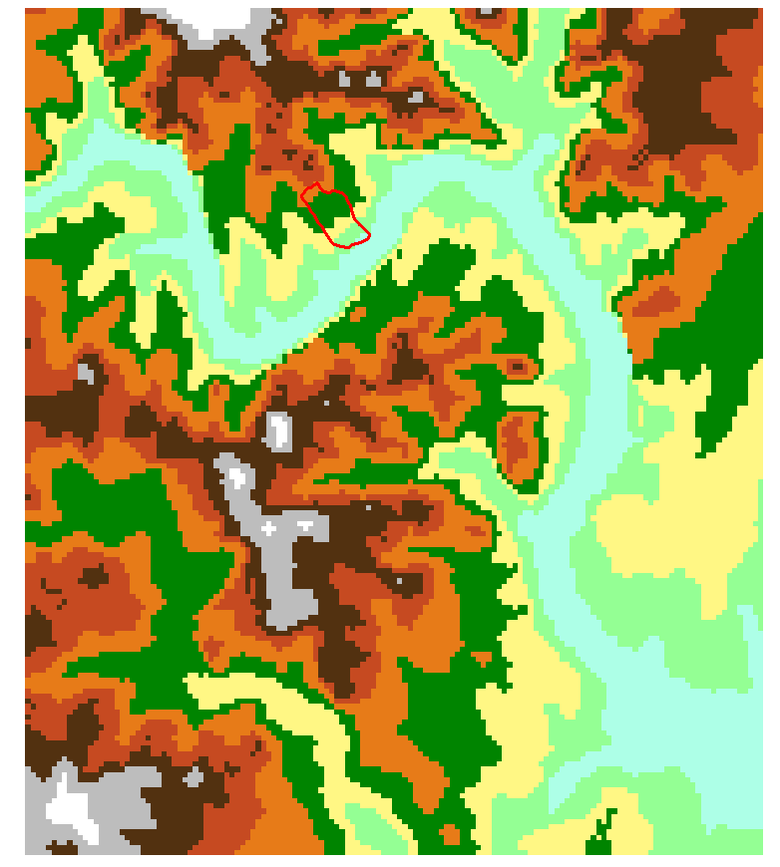

100 m cells

center

  • Coarser cells smooth over smaller ridges, channels and breaks in slope
  • The same hillside can produce different slope, aspect and curvature rasters at different cell sizes
  • Report the DEM cell size with the terrain result; it is part of what the number means
CE 414 · Week 5 — Terrain Analysis

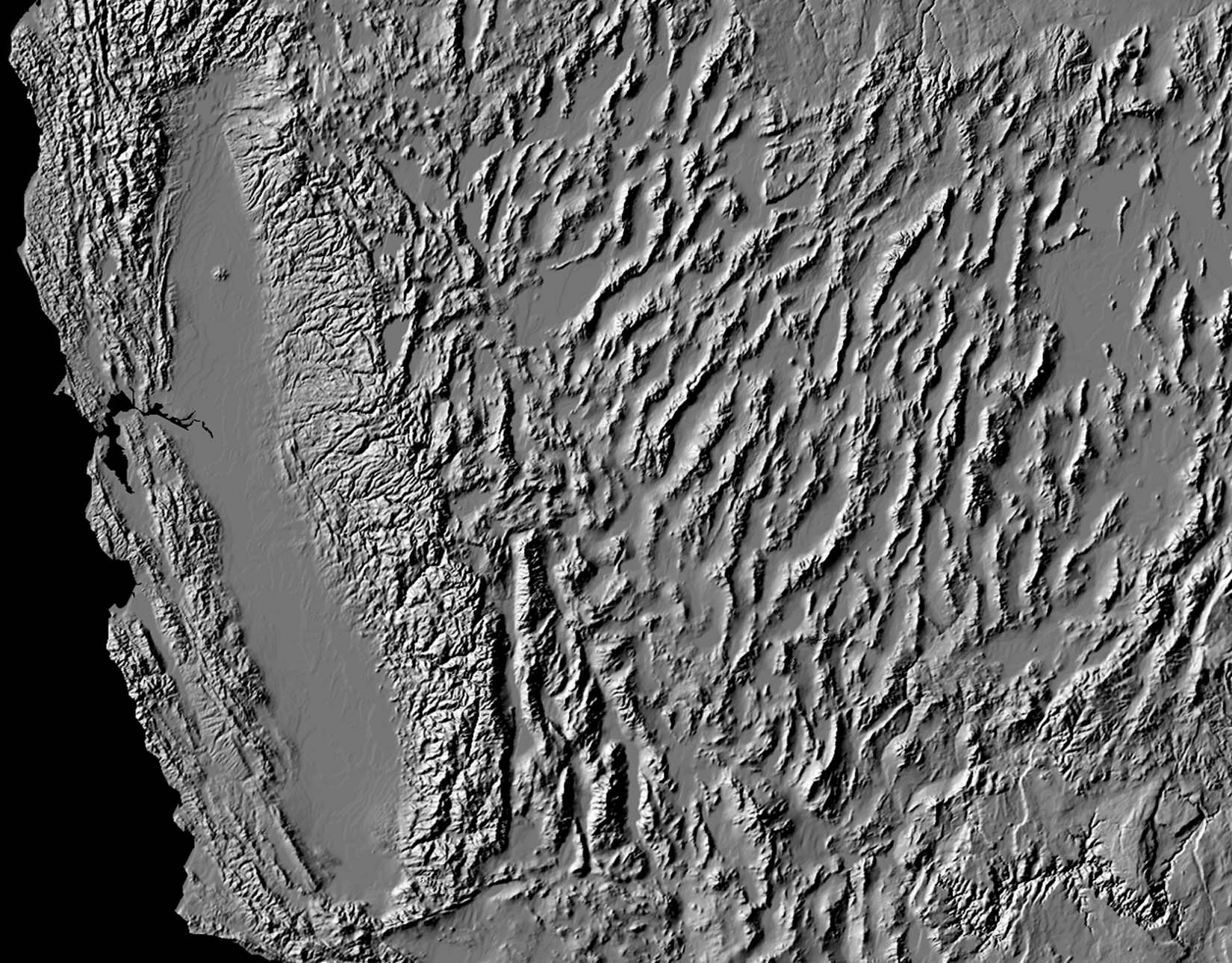

Shaded relief

  • Shaded relief is a visualization (symbology) effect: shadowing is applied to highlight the terrain
  • Illumination direction is a modeling choice, not a property of the terrain
  • Why?
hillshadefacing the sun → brightfacing away or blocked → dark
CE 414 · Week 5 — Terrain Analysis

Contours

Slice the surface at fixed elevations

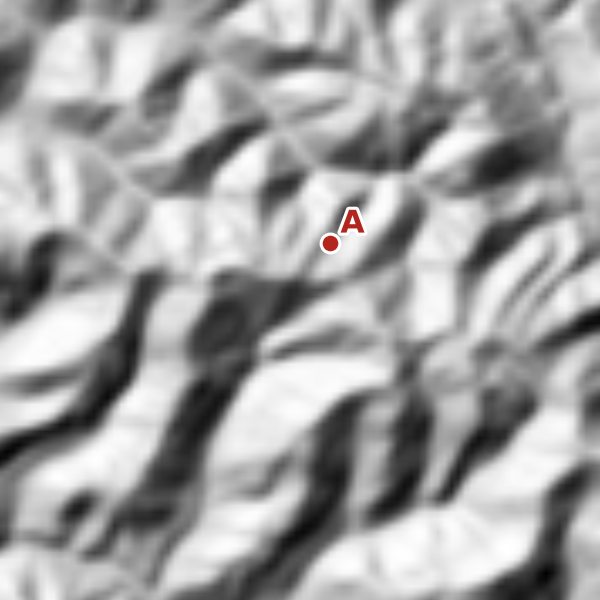

Shaded relief
shape, but no numbers

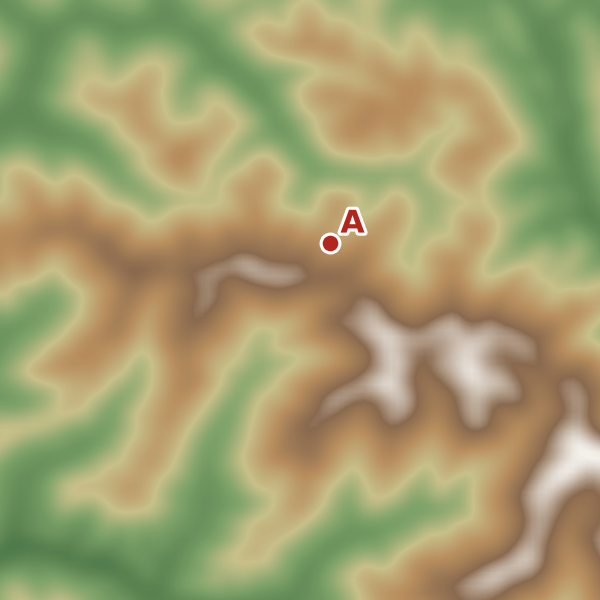

Color ramp
high vs. low, roughly

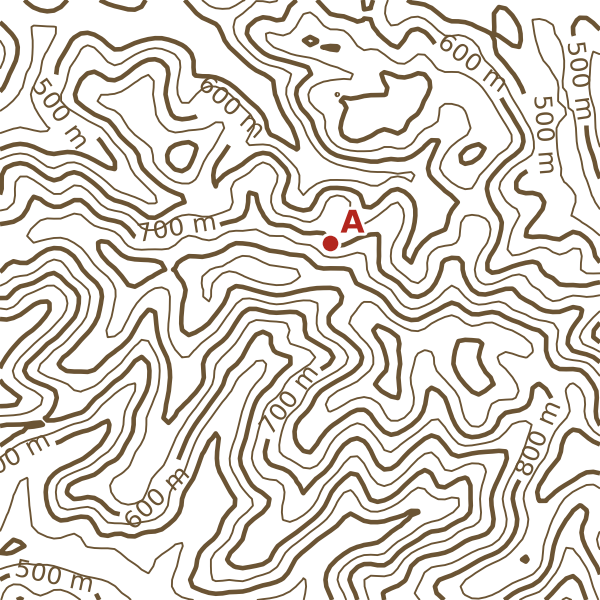

Contours
A sits on the 700 m line
  • A contour is a line of equal elevation; it runs at right angles to the local slope
  • Contours give clean numerical elevations at fixed locations: what grading, drainage and earthwork calculations need
CE 414 · Week 5 — Terrain Analysis

What does the terrain look like at A, B, C and D?

  • A?
  • B?
  • C?
  • D?
  • The photo is the same terrain, from the camera position marked on the map
CE 414 · Week 5 — Terrain Analysis

What are the steps to convert the DEM to the contour lines?

1Choose the intervalmin 412max 472420 m440 m460 mRead the DEM's range,pick a round intervalinterval = 20 m→ 420, 440, 460 m2Find where 440 falls430445458472422436452466415428446457412420433447440 lies between436 and 445, so thecrossing sits 4/9 of theway from 436 to 445linear interpolation3Connect the crossings430445458472422436452466415428446457412420433447420 m440 m460 mJoin them, then smooth4Lines never cross440460✓✗One spot cannot be 440 m and 460 m
CE 414 · Week 5 — Terrain Analysis

How would you do it?

  • What is the slope at the center cell?
  • The cell size is 10 m; the nine elevations are on the figure
  • Work in pairs. Write down the method you used, not just the number
CE 414 · Week 5 — Terrain Analysis

Slope

  • Slope is the change in elevation (rise) with a change in horizontal position (run)
  • Often reported in degrees between zero (flat) and 90 (vertical). At rise/run = 1, the slope is 45 degrees
  • Can also be expressed as a percent = (rise/run) × 100
CE 414 · Week 5 — Terrain Analysis

Slope in three dimensions

  • The local neighborhood supplies the elevations used to estimate the gradient
  • On a real surface, the steepest direction at a point is rarely aligned with a row or a column
CE 414 · Week 5 — Terrain Analysis

Slope on a grid

  • When computing slope on a grid, we have a problem: the slope direction is seldom exactly between the centers of two cells
  • So we need methods that look at several surrounding cells
CE 414 · Week 5 — Terrain Analysis

How would you do it?

  • What is the slope at the center cell?
  • The cell size is 10 m; the nine elevations are on the figure
  • Work in pairs. Write down the method you used, not just the number
CE 414 · Week 5 — Terrain Analysis

Slope: four nearest cells

center

Checking against GIS Fundamentals? Some earlier printings of this figure show dZ/dy = (Z2 − Z1)/2C and 25.3°; it should be (Z2 − Z7)/2C, and the arithmetic gives 25.38°.

CE 414 · Week 5 — Terrain Analysis

Slope: 3rd-order finite difference — try it

center

CE 414 · Week 5 — Terrain Analysis

Aspect

  • Aspect is the downhill direction of the steepest slope, reported as an azimuth clockwise from north

  • Same partial derivatives as slope; a different thing done with them
CE 414 · Week 5 — Terrain Analysis

Plan and profile curvature

  • Profile curvature — curvature parallel to the slope direction
  • Plan curvature — curvature perpendicular to the slope direction
  • Because curvature is a second derivative, it is especially sensitive to cell size and DEM noise
  • Can you calculate curvature?
  • Name some applications or uses for curvature
CE 414 · Week 5 — Terrain Analysis

A viewshed is a rotating searchlight

  • In other words: what could you see in all directions from the given point?
  • Sweep a beam from the viewer, mark every cell the beam reaches, and skip everything in shadow
  • The output is a raster: seen or not seen, cell by cell
CE 414 · Week 5 — Terrain Analysis

How to use a viewshed

Siting cell towers, search and rescue, scenic protection, security, wind turbines…

Example: a hike along the east bench of Utah County. Which stops see the most temples?

  • Visibility is symmetric: if the stop can see the temple, the temple can see the stop
  • So run one viewshed from each temple (raised to spire height) and add the seven rasters
  • Every cell now holds a count of temples visible; read it at each stop
  • The best stop is the one with the highest count
Utah LakeLake MountainsWASATCH RANGE▲ Mt. Timpanogos▲ Y Mountainbench trail✗✗Saratoga SpringsMount TimpanogosOremLindonProvo City CenterProvo Rock CanyonPayson12345visible from stop 3blocked by a ridgetrail stopDiagram, not to scaleN
CE 414 · Week 5 — Terrain Analysis

Final Thoughts

Quiz: Slope, Aspect, Viewshed. Six questions on what you get out of a DEM — contours, hillshade, aspect, slope, and what a viewshed can and cannot tell you. Scan the code, or open the link under it.

  • Not graded, nothing recorded: a quick check that today's material made sense
  • The last two are about viewsheds: what one cell value means, and how to count what a whole hike can see

Before next class

  • Reading: Chapter 11 of GIS Fundamentals (Terrain Analysis)
  • Quiz 5, open book, on Learning Suite — due Saturday 11:59 pm
  • Lab 4 — Cell Phone Tower Placement is due Saturday 11:59 pm — see the Lab 4 page
  • Lab 5 — Watershed Delineation is next — see the Lab 5 page
  • Questions? Office hours: calendly.com/dan-ames/office-hours

center

byu-hydroinformatics.github.io/ce414-gis-applications/quizzes/terrain-analysis/

CE 414 · Week 5 — Terrain Analysis

Week 5 concepts lecture. Everything in this deck is a raster surface operation: the input is a DEM and the output is another raster that answers an engineering question. The lab this week applies it.
